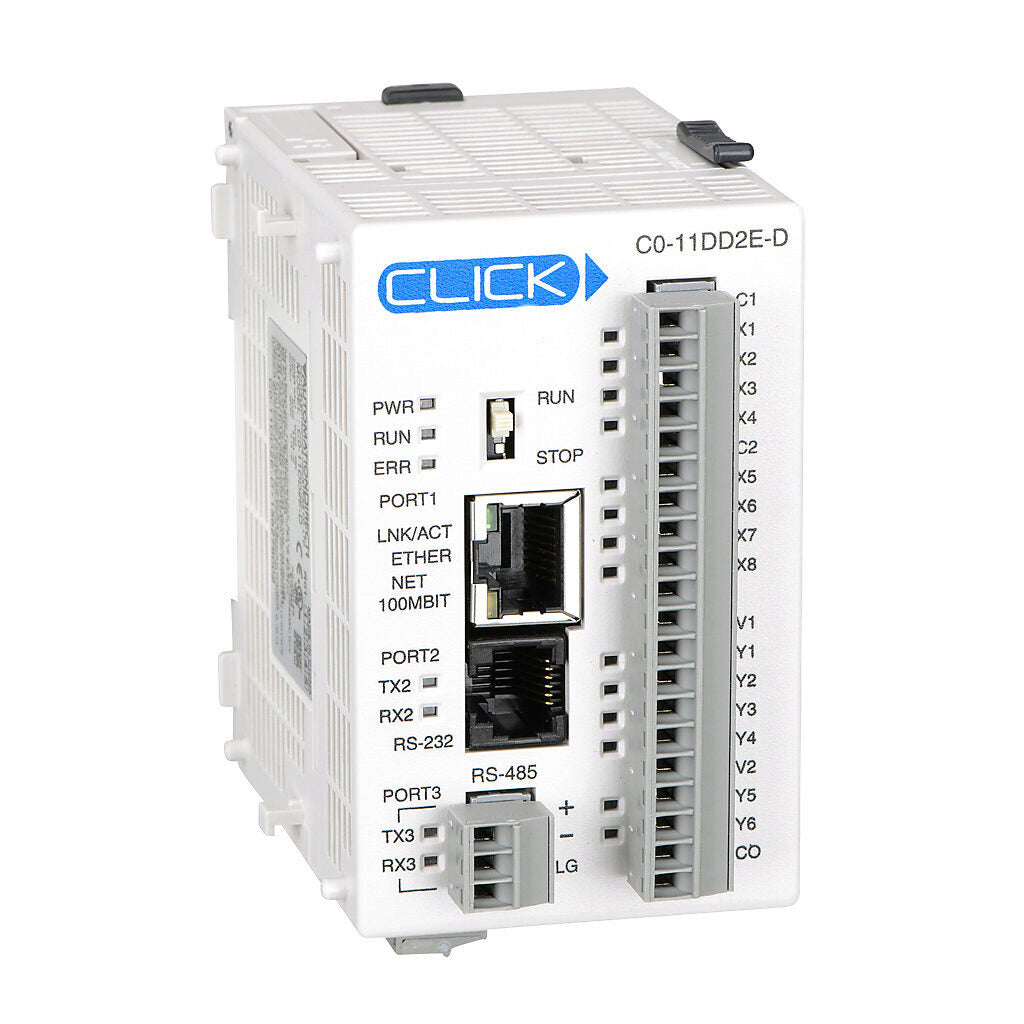

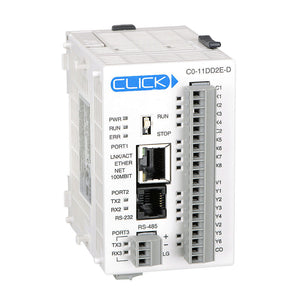

C0-11DD2E-D | Automation Direct CLICK Ethernet 24VDC Micro PLC
- Regular price
- $292.00
- Sale price
- $292.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C0-11DD2E-D
Description
The Automation Direct C0-11DD2E-D is a CLICK Ethernet Standard PLC designed for compact and cost-effective industrial control applications. It operates on 24 VDC and provides integrated discrete I/O with built-in Ethernet and serial communication ports for flexible system connectivity. With high-speed input capability and PID support, this PLC is suited for small machine automation and process control tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Programmable Logic Controllers |
| Part Number | C0-11DD2E-D |
| Subcategory | Micro PLCs |
| Series | CLICK Ethernet Standard |
| Programming Language | Ladder |
| Ladder Memory | 8k steps |
| User Data Memory | 16 KB |
| Power Requirement | 24 VDC |
| Discrete Inputs | 8 points, 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Discrete Outputs | 6 points, 24 VDC |
| Discrete Output Type | Sourcing |
| Output Load Current | 0.1A per point |
| Maximum PID Loops | 8 |
| High-Speed Input Points | 8 |
| Ethernet Port | 1 × 10/100Base-T (RJ45) |
| Serial Ports | RS-232 (RJ12), RS-485 (3-pin terminal) |
| Supported Protocols | Modbus TCP/RTU, EtherNet/IP explicit/implicit, ASCII |
| Port Speed | 10/100 Mbps; up to 115.2k baud |
| Real-Time Clock | Yes |
| Retentive Memory | Yes |
| Battery Backup | Yes (D2-BAT-1 sold separately) |
| Maximum Expansion Modules | 8 |
| Interrupt Capability | Up to 8 input and 4 timer interrupts |
| Includes | Removable terminal block |
| Weight | 0.6 lb |
Information About C0-11DD2E-D
The C0-11DD2E-D is part of the CLICK Ethernet Standard series of programmable logic controllers engineered for reliable and easy-to-configure automation systems. It offers 8k steps of ladder memory and 16 KB of user data memory to support control logic and data handling requirements. The controller includes eight 24 VDC discrete inputs and six 24 VDC sourcing outputs, along with high-speed counter functionality for pulse and encoder-based applications. Communication options include Ethernet, RS-232, and RS-485 ports supporting Modbus TCP/RTU, EtherNet/IP messaging, and ASCII protocols for integration with HMIs, drives, and other control devices.
Key Features:
- Integrated Ethernet Port: 10/100Base-T RJ45 supporting Modbus TCP and EtherNet/IP communication.
- Built-In Discrete I/O: 8 sinking/sourcing 24 VDC inputs and 6 sourcing 24 VDC outputs.
- High-Speed Input Capability: Supports multiple counter modes including quadrature and pulse/direction.
- PID Functionality: Configurable up to 8 PID loops for process control applications.
- Ladder Programming: Programmed using CLICK software v2.00 or later.
- Real-Time Clock and Retentive Memory: Maintains time and stored data during power interruptions.
- Interrupt Support: Up to 8 input interrupts and 4 timer interrupts for event-driven control.
- Expandable Architecture: Supports up to 8 additional expansion modules.
The C0-11DD2E-D delivers the reliability and precision required for compact PLC-based machine automation and control systems.
