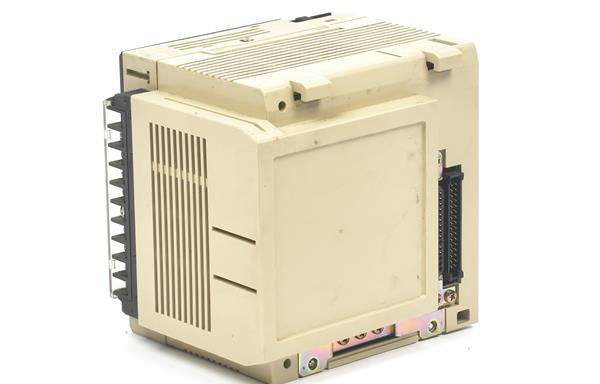

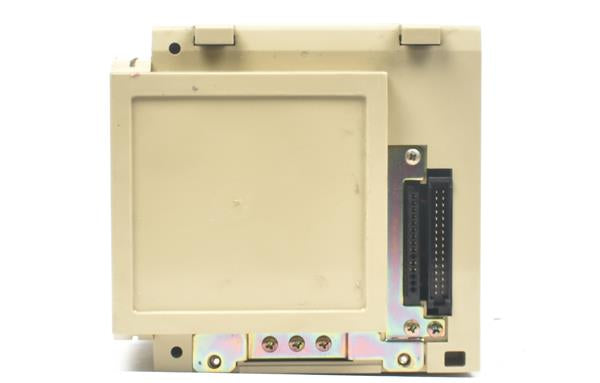

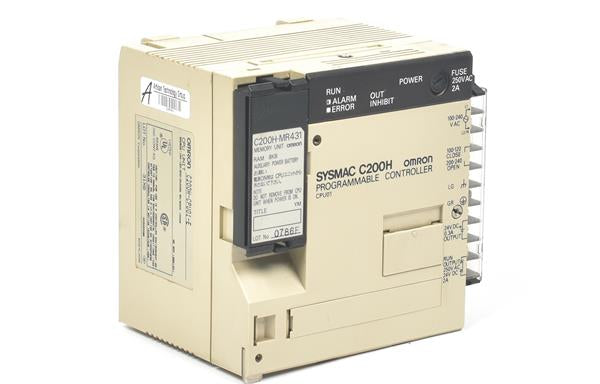

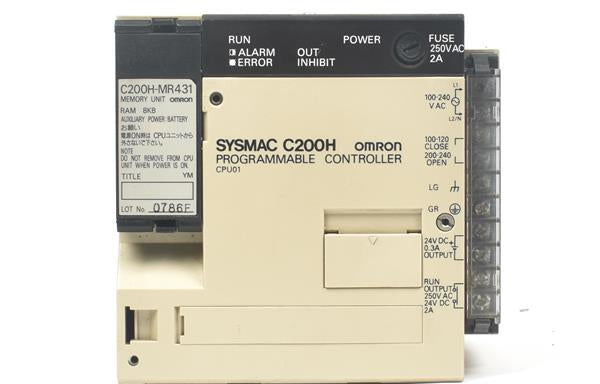

C200H-CPU01-E | Omron Processor/Controller 100/200-240 VAC
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200H-CPU01-E
Description
The Omron C200H-CPU01-E is a high-capacity CPU module engineered for the C200H programmable controller series. Supporting ladder logic programming, it features advanced control performance powered by CMOS and LS-TTL technologies, offering robust integration into industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
PLCs/Machine Control
|
| Part Number | C200H-CPU01-E |
| Subcategory | PLC Module/Rack |
| Series | C200H |
| Product Type | CPU Module |
| Control Element | MPU, CMOS, LS-TTL |
| Programming Language | Ladder Diagram |
| Instruction Length | 1 Address/Instruction, 1 to 4 Words |
| Execution Time | Basic: 0.75 to 2.25 μs; Special: 34 to 724 μs |
| Memory Capacity | 6,974 Words (expandable with 8K memory) |
| Input Voltage Range | 100-120/200-240 VAC (selectable) |
| Power Consumption | 120 VA Maximum per Rack |
| Output Capacity | 3 A @ 5 VDC (1.6 A for I/O Units) |
| Fuse Specification | 2 A, 250 V |
| Dielectric Strength | 2,000 VAC between AC terminals and housing |
| Vibration Resistance | 10-35 Hz, 1 mm amplitude for 2 hours |
| Operating Temperature Range | 0° to 55°C |
| Humidity Range | 35% to 85% RH (no condensation) |
| Weight | 6 kg Maximum |
Information About C200H-CPU01-E
The C200H-CPU01-E serves as the central processing unit for the Omron C200H modular PLC system, operating on a wide AC voltage range of 100–120 V or 200–240 V at 50/60 Hz. With 6,974 words of internal memory (expandable with an 8K memory unit), this CPU handles complex control sequences and supports fast instruction execution—with basic instructions processed in 0.75 to 2.25 µs and special instructions in 34 to 724 µs. Built for demanding industrial use, the module offers high electrical tolerance, including dielectric strength of 2,000 VAC and vibration resistance up to 1 mm amplitude. Designed with panel mounting in mind, it includes an internal 5 VDC output (3 A max) and built-in fusing for protection. Programming via ladder diagram makes configuration and troubleshooting intuitive for automation engineers.
Key Features:
- Dual Voltage Operation: Accepts both 100–120 VAC and 200–240 VAC input, allowing for flexible deployment across electrical standards.
- Fast Instruction Execution: Basic instructions run in as little as 0.75 µs, optimizing response time in time-critical applications.
- High Memory Capacity: Comes with 6,974 words of memory, expandable with an optional 8K-word module for large programs.
- CMOS and LS-TTL Logic: Ensures low power consumption, fast switching, and signal integrity within the CPU logic circuits.
- Ladder Diagram Programming: Simplifies control logic development, reducing the learning curve for maintenance and upgrades.
- Durability and Safety: Withstands 2,000 VAC dielectric strength and includes a 2 A, 250 V fuse for protection.
- Strong Environmental Resistance: Operates from 0°C to 55°C and tolerates 35–85% RH humidity in non-condensing environments.
- Rack Power Distribution: Delivers 3 A at 5 VDC for system modules, supporting reliable operation across I/O units.
The C200H-CPU01-E delivers reliable, expandable, and fast-processing performance as the core of Omron’s C200H automation systems.
