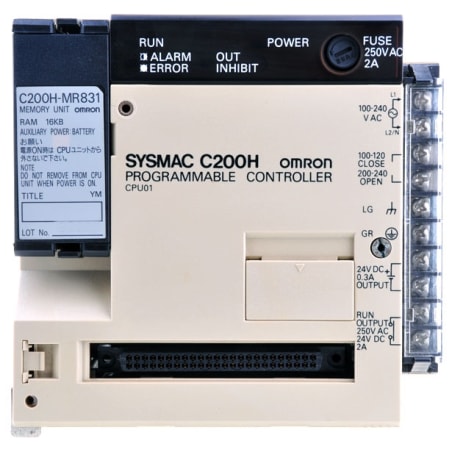

C200H-CPU01-E2 | Omron C200H PLC CPU Module with 8K Memory 100–240 VAC Input
- Regular price
- $779.00
- Sale price
- $779.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200H-CPU01-E2
Description
The Omron C200H-CPU01-E2 is a modular PLC CPU controller operating on 100–240 VAC, with a memory capacity of 8K words and support for ladder logic programming. It provides stable power distribution and high-noise immunity for industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC & PAC Control Systems |
| Part Number | C200H-CPU01-E2 |
| Subcategory | CPU Modules |
| Series | C200H |
| Supply Voltage | 100–120/200–240 VAC (selectable) |
| Operating Voltage Range | 85–132 / 170–264 VAC |
| Power Consumption | Max. 120 VA per rack |
| Output Capacity | 3 A at 5 VDC (CPU and expansion racks) |
| Surge Current | Approx. 5× normal current |
| Instruction Set | Basic & Special (239 total instructions) |
| Execution Time | 0.75–2.25 μs (basic), up to 724 μs (special) |
| Memory Capacity | 6,974 words (8K total) |
| Programming Method | Ladder Diagram |
| Control Components | MPU, CMOS, LS-TTL |
| Dielectric Strength | 2,000 VAC |
| Noise Immunity | 1,000 Vp-p, 100 ns–1 ms pulse width |
| Vibration Resistance | 10–35 Hz, 1 mm double amplitude |
| Grounding Resistance | < 100 Ω |
| Mounting Type | Rack Mount |
| Weight | 3.00 lb (1.36 kg) |
Information About C200H-CPU01-E2
The C200H-CPU01-E2 is a core CPU module in the SYSMAC C200H series of programmable logic controllers, designed to manage control tasks in modular automation systems. Operating on a universal AC supply (100–120/200–240 VAC, selectable), the unit offers surge protection and 5 VDC output capacity up to 3 A for powering modules in the CPU and expansion racks. It supports a ladder diagram programming structure, executing basic instructions within 0.75 to 2.25 μs and complex ones in under 724 μs. Built with CMOS and LS-TTL logic, the CPU delivers strong resistance to vibration and electrical noise, making it reliable in demanding environments.
Key Features:
-
Dual Voltage Operation: Accepts 100–120/200–240 VAC with a wide input range of 85–132/170–264 VAC for flexible deployment.
-
8K Word Memory Capacity: Supports up to 6,974 words for user programs and data storage, ideal for mid-range control needs.
-
Robust Power Output: Supplies 3 A at 5 VDC for both CPU and expansion racks, ensuring reliable module power distribution.
-
High-Speed Instruction Processing: Executes basic instructions in as little as 0.75 μs, with special instructions processed within 724 μs.
-
Advanced Electrical Protection: Features surge resistance, 2,000 VAC dielectric strength, and 1,000 Vp-p noise immunity.
-
Reliable Architecture: Employs MPU, CMOS, and LS-TTL components for enhanced durability and efficient logic execution.
-
Strong Mechanical Tolerance: Withstands vibration from 10 to 35 Hz, 1 mm double amplitude in all directions.
-
Grounding and Safety Compliance: Maintains grounding resistance under 100 Ω and meets industrial safety expectations.
The C200H-CPU01-E2 delivers the reliability and precision required for flexible, modular automation control across a wide range of electrical and environmental conditions.
