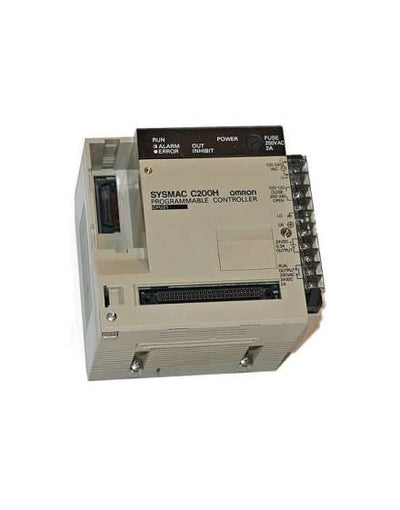

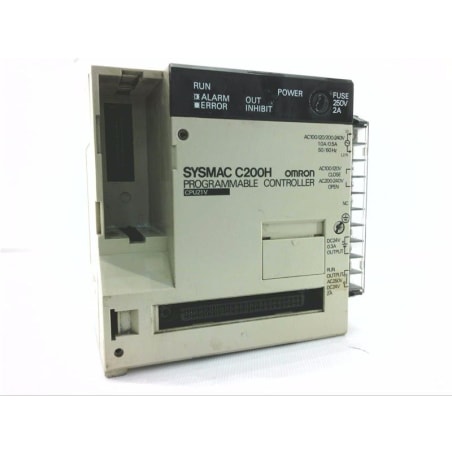

C200H-CPU21V-E | Omron CPU Unit
- Regular price
- $1,519.00
- Sale price
- $1,519.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200H-CPU21V-E
Description
The Omron C200H-CPU21V-E is a versatile CPU module from the Sysmac C200H series, compatible with both 100–120 VAC and 200–240 VAC (50/60 Hz) power sources.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | C200H-CPU21V-E |
| Subcategory | PLC Module/Rack |
| Series | C200H |
| Product Type | CPU Unit / Programmable Controller |
| Power Supply Voltage | 100–120 VAC / 200–240 VAC, selectable, 50/60 Hz |
| Current Rating | 1 A at 100–120 VAC / 0.5 A at 200–240 VAC |
| Power Consumption | Max 120 VA |
| Instruction Set | 14 basic instructions, 211 special instructions |
| Execution Time – Basic Instructions | 0.375 to 2.25 µs |
| Execution Time – Special Instructions | 10 to 724 µs |
| Instruction Length | 1 address per instruction, 1 to 4 words |
| Memory Capacity | 6,974 words, expandable to 8,000 words |
| Output Current (5V DC) | 4.6 A (3.2 A for I/O units) |
| Surge Current Tolerance | Up to 30 A |
| Dielectric Withstand Voltage | 2,000 VAC (AC terminals to casing) |
| Grounding Resistance | Below 100 Ω |
| Noise Tolerance | 1,500 Vp-p, pulse width 100 ns to 1 µs |
| Main Processing Unit Type | CMOS, LS-TTL |
| Programming Language | Ladder Diagram |
| Weight | 2.76 lbs |
Information About C200H-CPU21V-E
The Omron C200H-CPU21V-E is a CPU unit from the Sysmac C200H series, designed for mid-range programmable control applications in industrial automation. It operates on single-phase AC power, supporting both 100–120 VAC and 200–240 VAC at 50/60 Hz, with a maximum power consumption of 120 VA. The unit provides a 5 VDC output with a capacity of 4.6 A (3.2 A for I/O units) to power connected modules.
Key Features:
- Model & Series: C200H-CPU21V-E, Sysmac C200H Series.
- Power Supply: 100–120 VAC / 200–240 VAC, 50/60 Hz, single-phase.
- Output Power: 5 VDC, 4.6 A (3.2 A for I/O units).
- Instruction Set: 14 basic, 211 special instructions.
- Execution Speed: 0.375–2.25 µs for basic, 10–724 µs for special instructions.
- Memory: 6,974 words, expandable to 8,000 words.
- Programming Language: Ladder diagram.
- Protection: 30 A surge tolerance, 2,000 VAC dielectric withstand, <100 Ω grounding, 1,500 Vp-p noise tolerance.
- Processor Type: CMOS, LS-TTL.
The Omron C200H-CPU21V-E combines versatility, robust performance, and durability, making it a trusted choice for maintaining and supporting legacy automation systems.
