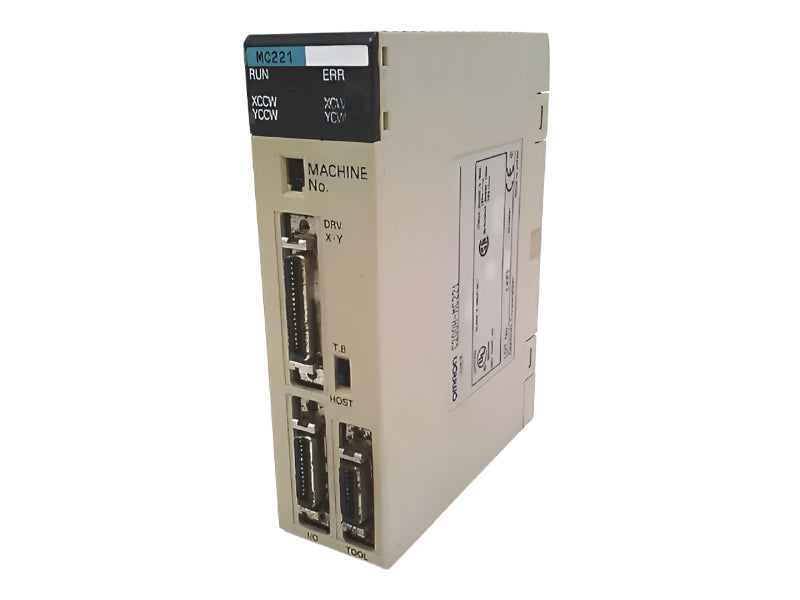

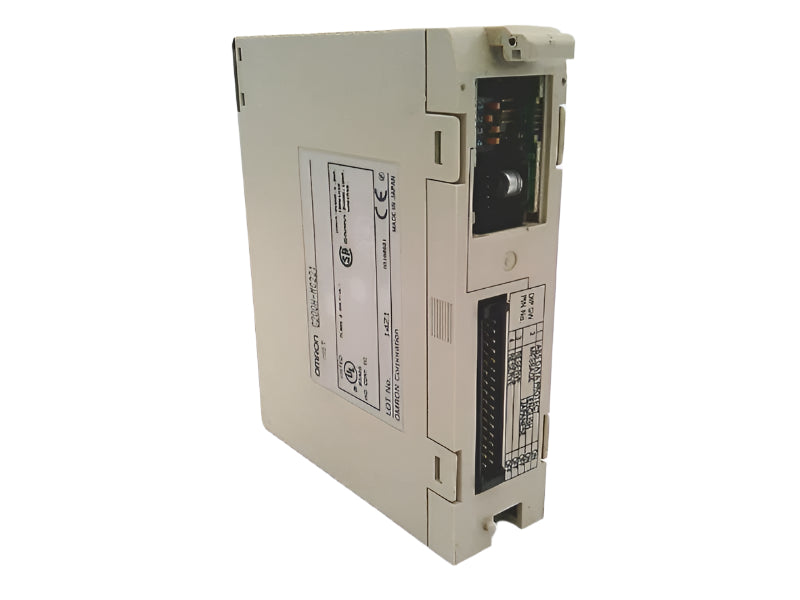

C200H-MC221 | Omron Motion Control Module
- Regular price
- $2,254.00
- Sale price
- $2,254.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200H-MC221
Description
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| BrandPart Number | Omron |
| Category |
PLCs and Accessories
|
| Part Number | C200H-MC221 |
| Subcategory | PLC Expansion Modules |
| Series | C200H |
| Type | 2-Axis Analog Output Module |
| Mounting Type | Backplane (PLC Expansion Rack) |
| Termination Style | D-Sub Connector |
| Features | 2-Axis Control (Point-to-point, interpolation) |
| Programming | G-language Multitasking (up to 100 programs) |
| Operating Temperature | 0°C to 55°C |
| Ingress Protection | IP30 |
| Approval Agencies | CE, CSA, UL |
| Weight | 1.1 lbs |
Information About C200H-MC221
The Omron C200H-MC221 is a compact motion control module developed for two-axis positioning tasks within Omron’s SYSMAC C200H and CS1 Series PLC platforms. Operating as a backplane-mounted unit, the C200H-MC221 integrates advanced motion control programming using multitasking G-language, enabling precise, independent management of two motion axes. Designed for versatile positioning applications, it supports both automatic and manual operation modes, as well as point-to-point, linear, and circular interpolation commands.
Key Features:
- 2-Axis Motion Control: Manages two independent axes for coordinated or simultaneous motion applications.
- Multitasking G-Language Programming: Supports up to 100 stored motion programs per module for flexible control.
- Point-to-Point and Interpolated Motion: Enables linear and circular interpolation in addition to standard point-to-point positioning.
- Automatic and Manual Operation Modes: Allows internal program execution or manual override via CPU or teaching pendant.
- Backplane-Mounted Design: Installs directly onto Omron C200H/CS1 PLC racks for seamless integration.
- D-Sub Connector Termination: Simplifies external device connectivity using standardized industrial connectors.
- IP30 Protection Rating: Designed for protected cabinet installations in controlled environments.
- Agency Certifications: Complies with CE, CSA, and UL standards for industrial equipment.
- Operating Temperature Range: Suitable for environments from 0°C to 55°C.
- Expansion Capability: Supports up to 8 motion units (16 axes total) per PLC system.
The Omron C200H-MC221 offers reliable, PLC-integrated control for two-axis motion applications, providing advanced programming flexibility through G-language and fast, responsive execution. Its modular backplane installation and scalable architecture make it ideal for legacy conveyor systems, X/Y positioning tables, and robotic equipment requiring precise motion sequencing.
