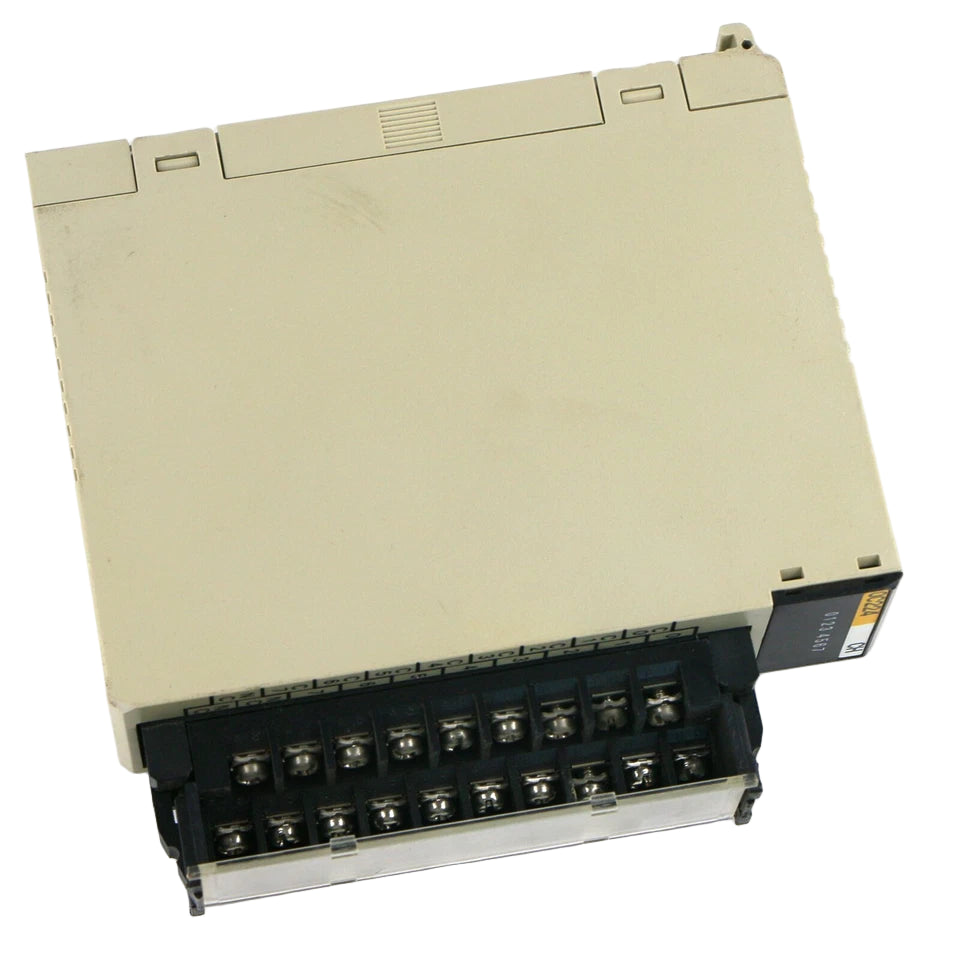

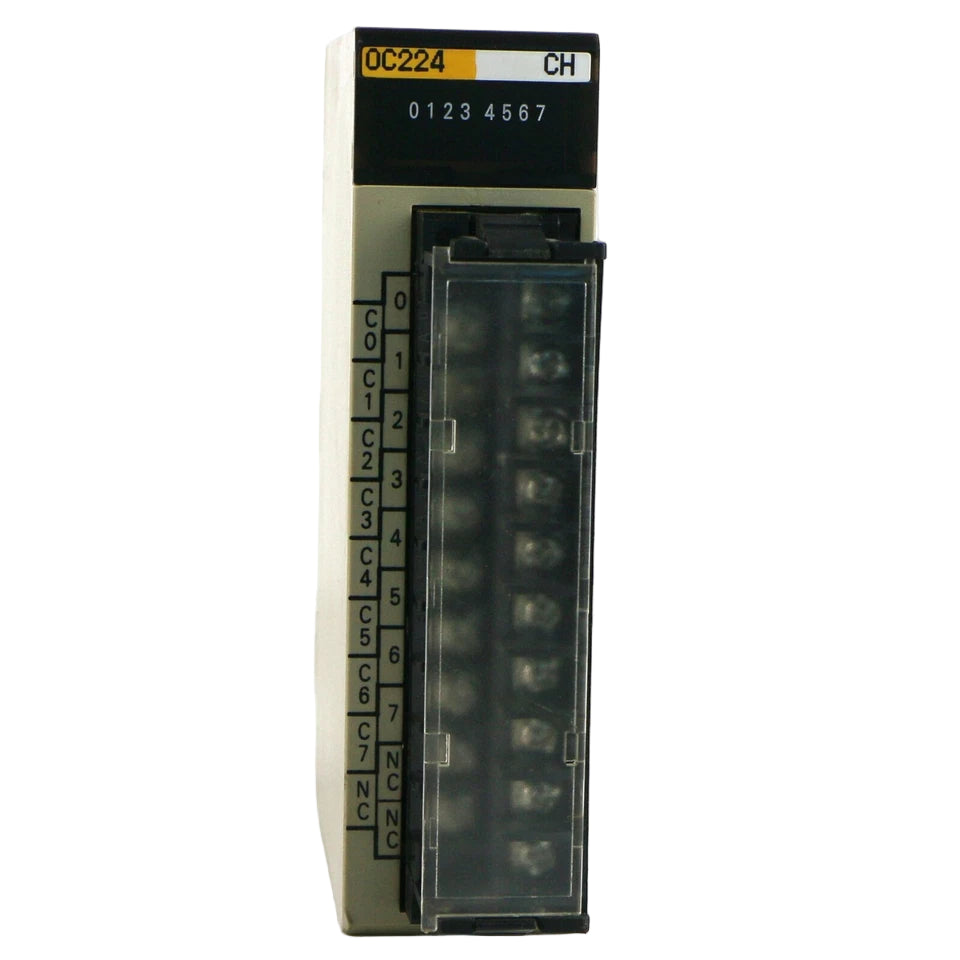

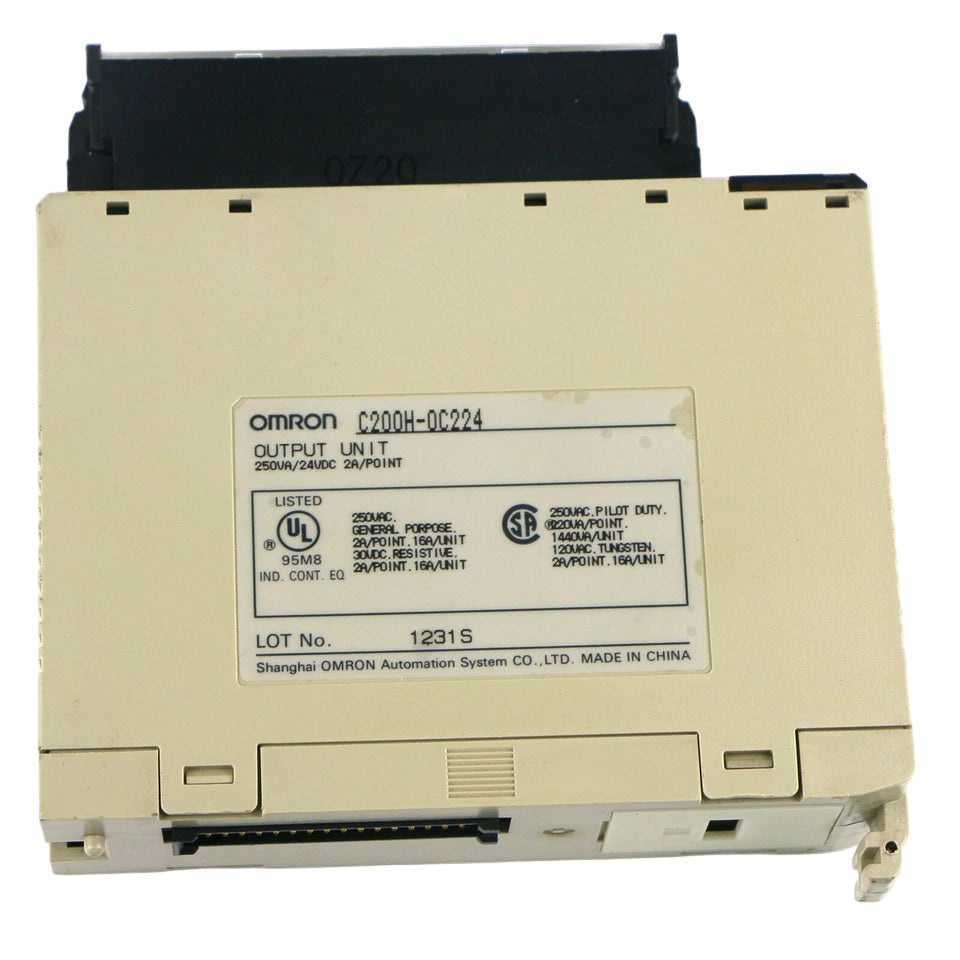

C200H-OC224 | Omron C200H Series 24-Point Relay Output Unit for PLC Systems
- Regular price
- $369.00
- Sale price
- $369.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200H-0C224
Description
The Omron C200H-OC224 Output Unit is a 24-point relay output module designed for use with Omron’s C200H Series PLC systems. It provides reliable control of external loads through isolated contact outputs, supporting both AC and DC devices. Built for flexible I/O expansion, it offers stable switching performance and durable relay contacts for long-term industrial use.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | C200H-OC224 |
| Subcategory | PLC Output Modules |
| Series | C200H Series |
| Type | Relay Output Unit |
| Number of Output Points | 24 |
| Output Type | Relay (Form A contacts) |
| Rated Load Voltage | 250 VAC / 30 VDC (maximum) |
| Rated Load Current | 2 A per point (resistive load) |
| Total Current Capacity | 8 A per common (max) |
| Isolation Method | Photocoupler and Relay Isolation |
| Indicator Type | LED indicators for each output point |
| Response Time | Approx. 10 ms (ON/OFF) |
| Connection Type | Terminal block or connector (varies by model) |
| Mounting Type | C200H Rack Mount |
| Power Supply | Supplied via PLC backplane |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -20°C to +70°C |
| Protection Features | Output fuse protection and surge suppression |
| Compatibility | C200H, C200HS, and related Omron PLCs |
| Compliance | CE, UL, CSA Certified |
| Weight | Approx. 0.35 kg (0.77 lb) |
Information About C200H-0C224
The C200H-OC224 is part of the Omron C200H Series, a proven family of PLC expansion modules for discrete control applications. This output unit features 24 relay output points, enabling direct connection to solenoids, lamps, and contactors. Each output is electrically isolated to protect the PLC from voltage transients and noise interference. Designed for easy installation in a C200H backplane, it ensures smooth integration into machine control systems, offering dependable operation across a wide range of industrial environments.
Key Features:
- 24-Point Relay Output Module: Provides reliable switching for AC and DC loads.
- C200H Series Compatible: Easily installs into Omron C200H PLC expansion racks.
- Isolated Relay Contacts: Prevents electrical interference and extends component life.
- Versatile Load Control: Supports resistive and inductive loads such as lamps, solenoids, and relays.
- High Reliability: Designed for long operational life under industrial conditions.
- Modular Design: Allows flexible I/O configuration in multi-slot PLC systems.
- Indicator LEDs: Displays individual output status for quick diagnostics.
- Omron Industrial Quality: Built for consistent performance and system reliability.
The C200H-OC224 delivers the reliability and precision required for automation, process control, and discrete output management in industrial PLC systems.
