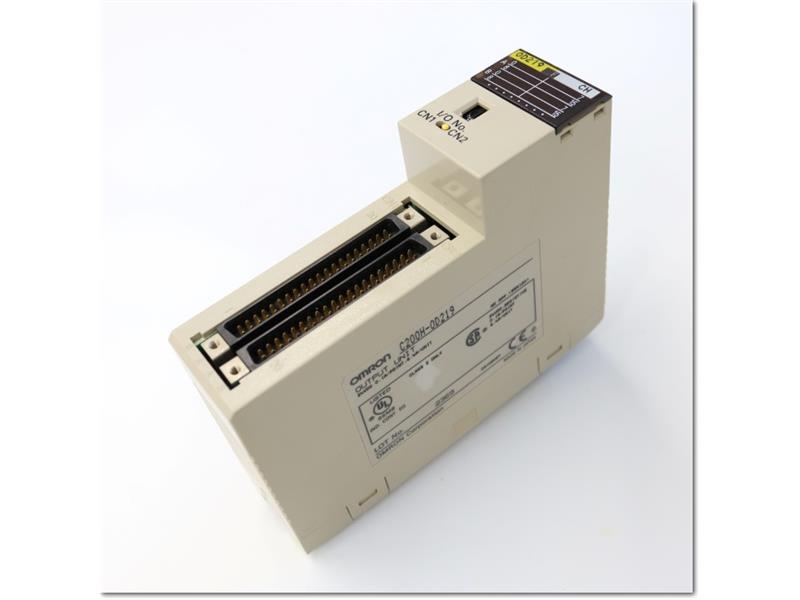

C200H-OD219 | Omron Output Module
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200H-OD219
Description
The Omron C200H-OD219 is a 64-point NPN transistor output module for the C200H series PLCs, designed to control multiple devices in industrial automation systems. It supports 4.5 to 26.4 VDC outputs at up to 100 mA per point and uses a 34-pin Fujitsu connector for efficient wiring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs and Accessories |
| Part Number | C200H-OD219 |
| Subcategory |
PLC Expansion Modules
|
| Weight | 0.2 kgs |
| Number of Outputs and Type |
64 - Solid State |
| Mounting Type | Backplane |
| Termination Style | D-Sub |
| Voltage | 24VDC, 0.1amp/Point .3 2 amps Unit |
| Cable Connection | Easy |
| Blocks per PLC | Max 5 |
| Discrete I/O points | 32 or 64 |
| Operating Temperature | 0 to 55°C |
| Ingress Protection | IP30 |
| Dimensions | 5.0 in x 2.0 in x 6.0 in (12.7 cm x 5.1 cm x 15.2 cm) |
Information About C200H-OD219
The Omron C200H-OD219 is a high-density 64-point transistor output module designed for the C200H series Programmable Logic Controllers (PLCs). This module enhances the PLC's output capacity by providing 64 discrete outputs in a single unit, facilitating efficient control in industrial automation systems.
Key Features:
- Output Configuration: 64 transistor outputs (NPN type)
- Output Specifications: Each output can handle 4.5 VDC, 16 mA to 26.4 VDC, 100 mA
- Compatibility: Designed for use with Omron's C200H series PLCs
- Connector Type: Utilizes a 34-pin Fujitsu connector for streamlined wiring
- Mounting: Backplane mounting for easy integration into existing systems
Benefits:
- Space Efficiency: High-density design allows for more output points in a compact module, optimizing cabinet space.
- Increased I/O Capacity: By not occupying standard I/O points, it expands the overall output capacity of the PLC system.
- Simplified Wiring: The use of a Fujitsu connector facilitates easy and organized wiring connections.
Applications:
- Industrial Automation: Ideal for controlling multiple actuators, indicators, and other output devices in automated manufacturing processes.
- Process Control Systems: Suitable for managing outputs in complex process control environments.
- Building Automation: Can be used to control lighting, HVAC systems, and other building management applications.
