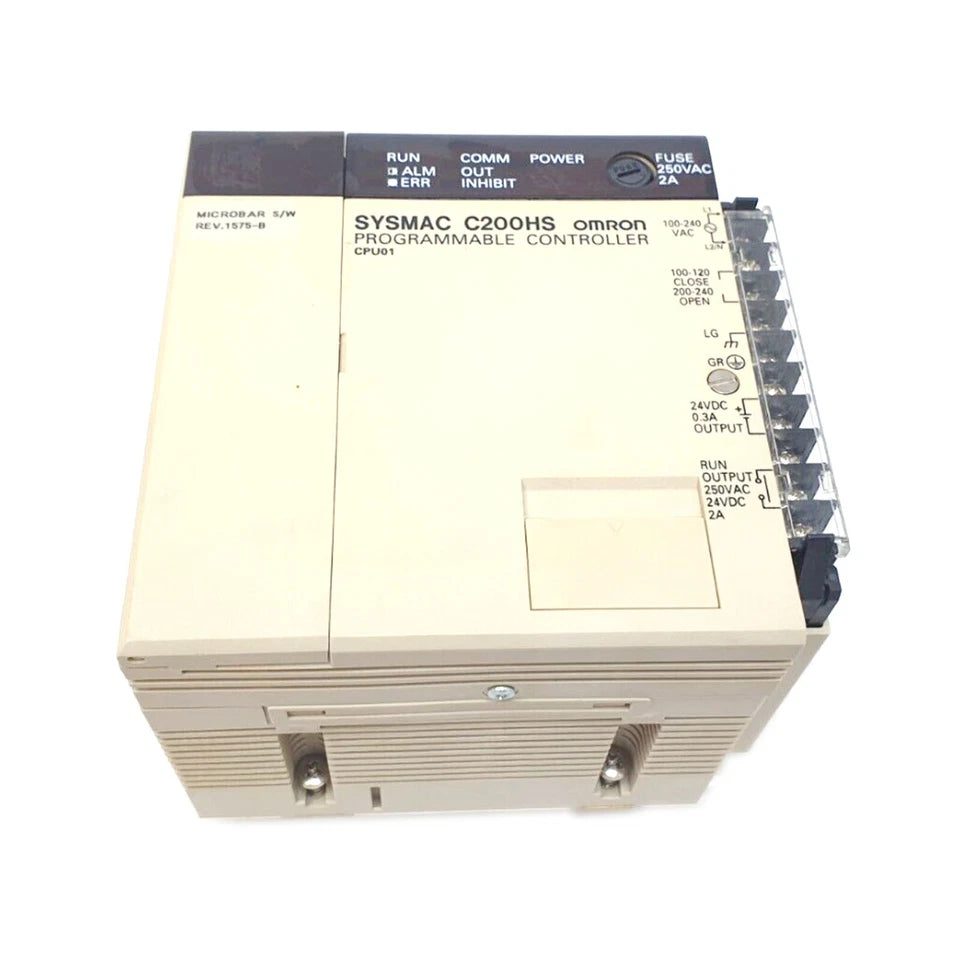

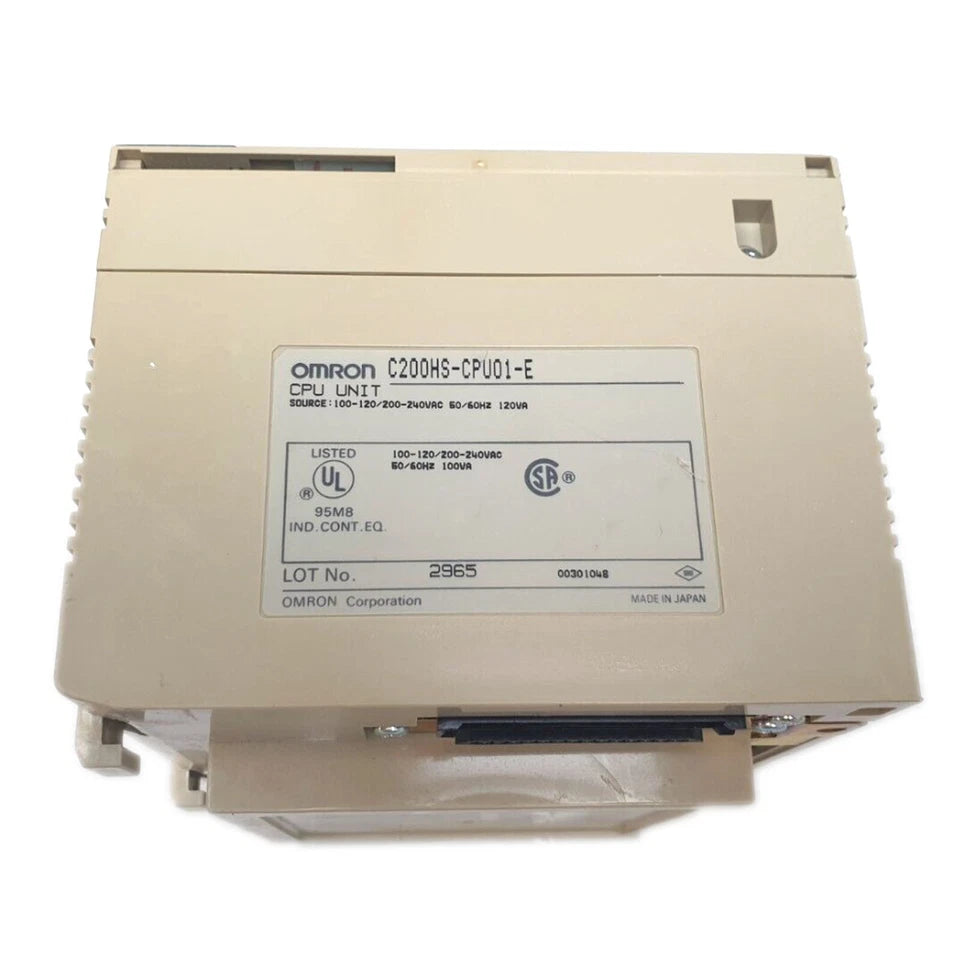

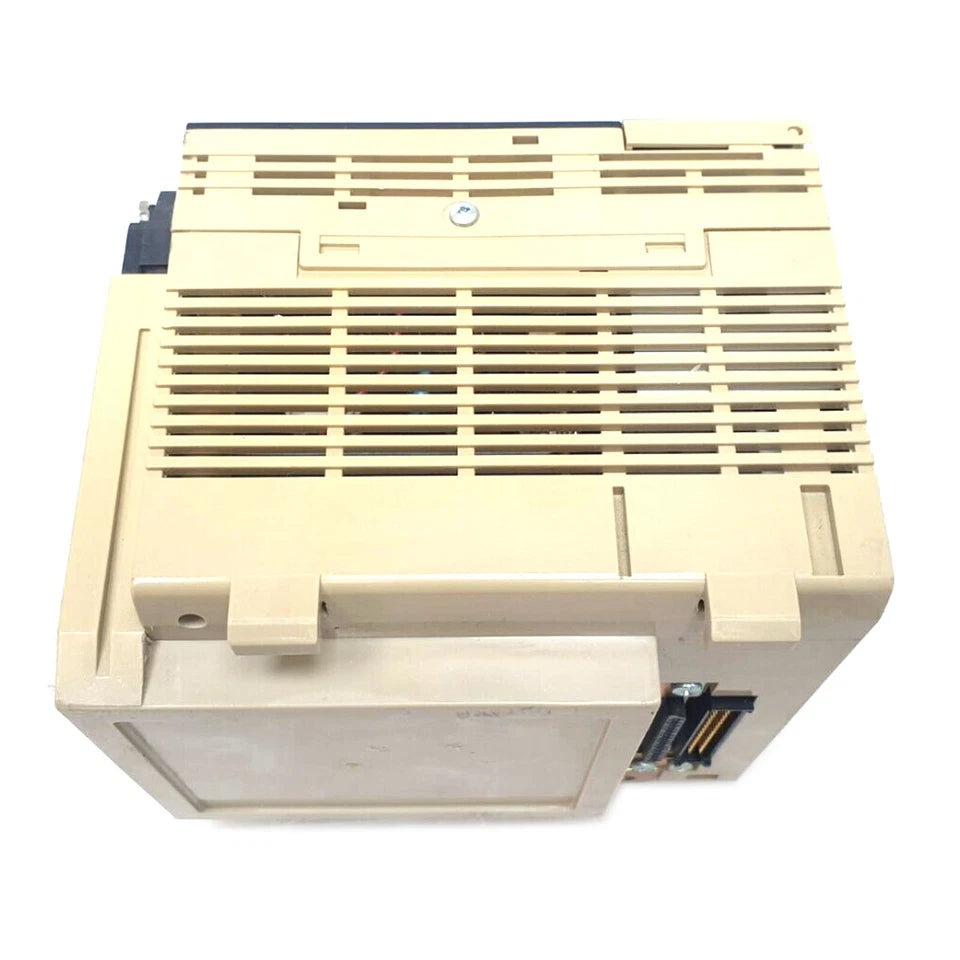

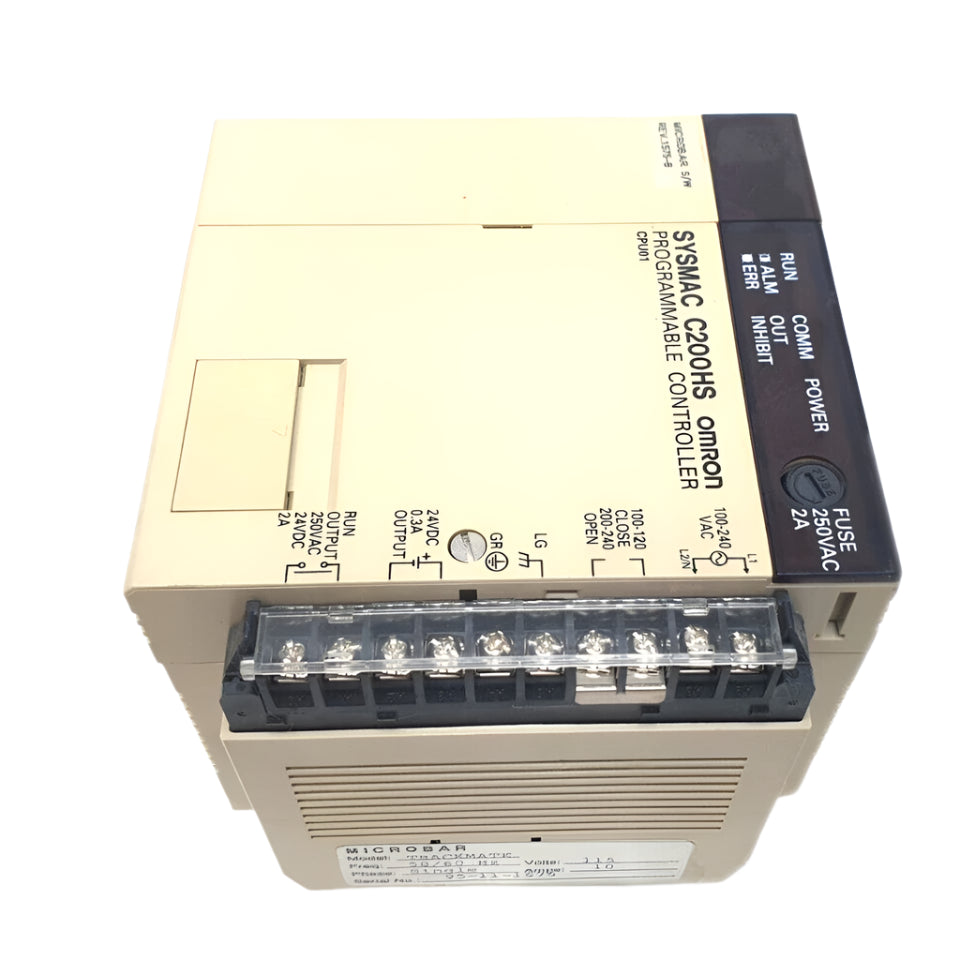

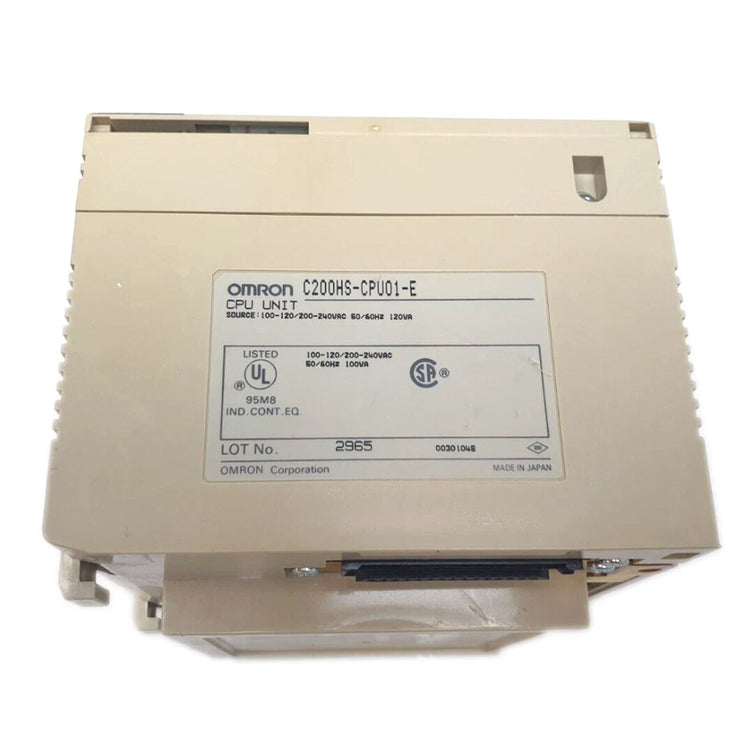

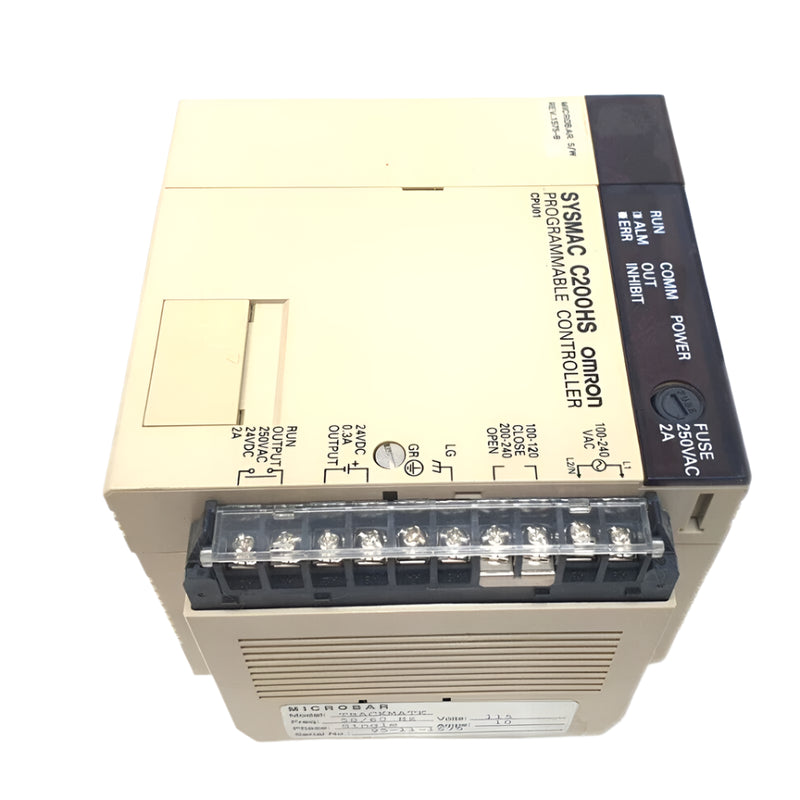

C200HS-CPU01-E | Omron SYSMAC CPU Module with 16K RAM
- Regular price
- $2,272.00
- Sale price
- $2,272.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200HS-CPU01-E
Description
The Omron C200HS-CPU01-E is a PLC CPU module with 16K RAM and integrated AC power supply, designed for use in SYSMAC C200H systems. It supports ladder logic programming with 239 total instructions and provides robust output handling for industrial automation control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC & PAC Control Systems |
| Part Number | C200HS-CPU01-E |
| Subcategory | CPU Modules |
| Series | SYSMAC C200H |
| Memory Capacity | 15.2K Words User Program (16K Total) |
| Instruction Set | 239 (14 Basic + 225 Special) |
| Program Language | Ladder Diagram |
| Power Supply | 100–120/200–240 VAC, 50/60 Hz, 120 VA |
| Logic Current Capacity | 3.9 A |
| Output 1 | 24 VDC, 0.3 A |
| Output 2 (Run Output) | 250 VAC / 24 VDC, 2 A |
| Main Control Element | MPU, CMOS, LS-TTL |
| Communication | Internal system bus (via rack) |
| Additional Features | Error History, Clock/Calendar |
| Mounting Type | Rack Mount (Modular System) |
| Operating Frequency | 50/60 Hz |
| Weight | 2.76 lb (1.25 kg) |
Information About C200HS-CPU01-E
The C200HS-CPU01-E is part of Omron’s SYSMAC C200H family, built for modular PLC control in factory automation environments. It includes 15.2K words of user program memory and features a CMOS-based microprocessor unit with LS-TTL logic. The module supports ladder diagram programming with a wide instruction set—14 basic and 225 special instructions—allowing for flexible and powerful control strategies. It operates from a universal AC power supply (100–120/200–240 VAC) and features built-in output capabilities, including a 24 VDC signal output (0.3 A) and run-state output at 250 VAC/24 VDC 2 A. Additional functions include an integrated clock/calendar and error history tracking for diagnostics.
Key Features:
-
16K Word Memory Capacity: Stores large-scale ladder programs and data with 15.2K words of available user memory.
-
Universal AC Power Supply: Accepts 100–120/200–240 VAC at 50/60 Hz, simplifying integration into global systems.
-
Extensive Instruction Set: Supports 239 instructions (14 basic + 225 special) for comprehensive program flexibility.
-
Integrated Output Functions: Provides 24 VDC 0.3 A signal output and a 2 A run-state relay output for system status.
-
High Logic Current Capacity: Delivers 3.9 A internal logic power, supporting connected modules reliably.
-
Clock and Error Logging: Includes a real-time clock/calendar and error history feature for process traceability.
-
CMOS + LS-TTL Architecture: Built with durable microprocessor components for stable and efficient operation.
-
SYSMAC C200H Compatibility: Fully integrates into C200H PLC systems with support for expansion modules and I/O.
The C200HS-CPU01-E delivers the reliability and precision required for scalable ladder-based automation in SYSMAC C200H industrial control systems.
