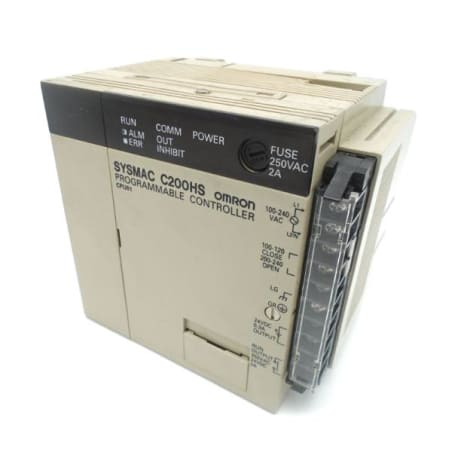

C200HS-CPU01 | Omron SYSMAC CPU Module with 16K RAM Dual AC Input
- Regular price
- $1,957.00
- Sale price
- $1,957.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200HS-CPU01
Description
The Omron C200HS-CPU01 is a standard CPU module for SYSMAC C200HS systems, offering 16K RAM, 320 I/O support, and dual-range AC power input. Designed for ladder logic programming, it ensures reliable control with 0.75 µs instruction execution and robust data integrity features.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC & PAC Control Systems |
| Part Number | C200HS-CPU01 |
| Subcategory | CPU Modules |
| Series | C200H |
| Power Input | 100–120 / 200–240 VAC, 50/60 Hz |
| Power Source | Internal 5 VDC logic power |
| Power Consumption | 100 VA |
| RAM Capacity | 16K |
| User Program Memory | 3.2 KB (~3,200 steps) |
| Data Memory | 2,000 words (DM) |
| Execution Time | 0.75 µs per basic instruction |
| Programming Language | Ladder Diagram |
| Communication Ports | RS-232C, 1 peripheral port |
| I/O Capability | Up to 320 I/O points |
| Timer/Counter Support | 128 timers and counters |
| Expansion Compatibility | Supports 1 expansion rack |
| I/O Module Slots | Up to 10 |
| Error Detection | Parity and BCC |
| Operating Temperature | 0°C to 55°C |
| Weight | 2.82 lb (1.28 kg) |
Information About C200HS-CPU01
The C200HS-CPU01 belongs to Omron’s C200H series and serves as the core CPU unit in modular programmable logic controller configurations. It supports a user program memory of 3.2 KB (approx. 3,200 steps) and 2,000 words of DM data memory, while accommodating up to 10 I/O modules and a single expansion rack. It offers RS-232C communication for device interfacing and includes a peripheral port for system configuration or monitoring. With a fast instruction cycle time of 0.75 µs and built-in parity/BCC checks, the unit ensures both responsiveness and operational reliability.
Key Features:
-
Dual-Voltage AC Input: Operates on 100–120 VAC or 200–240 VAC at 50/60 Hz for flexible deployment.
-
16K RAM with 3.2KB User Program: Provides storage for medium-scale ladder logic applications and user data.
-
High-Speed Execution: Achieves instruction cycle times as low as 0.75 microseconds for responsive system control.
-
320 I/O Point Capacity: Supports control across a variety of devices through up to 10 I/O module slots.
-
RS-232C and Peripheral Ports: Enables serial communication and peripheral connection for system management.
-
Data Integrity Mechanisms: Includes parity and BCC checks to verify communication accuracy and reliability.
-
Environmental Resilience: Operates reliably from 0°C to 55°C in industrial environments.
-
Ladder Diagram Programming: Compatible with industry-standard ladder logic for intuitive configuration.
The C200HS-CPU01 delivers the reliability and precision required for mid-range modular PLC automation systems in industrial environments.
