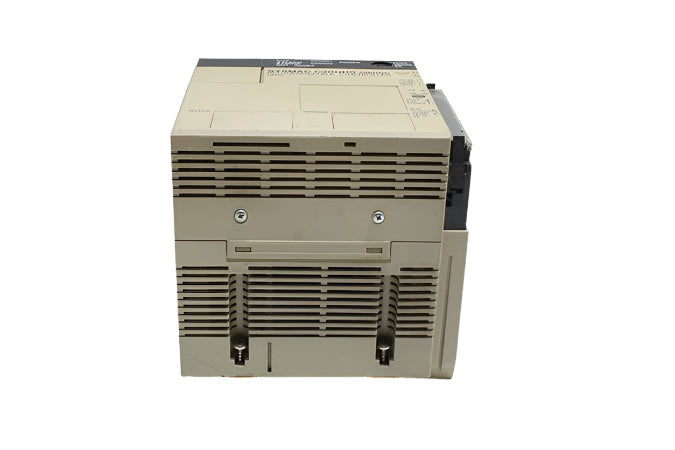

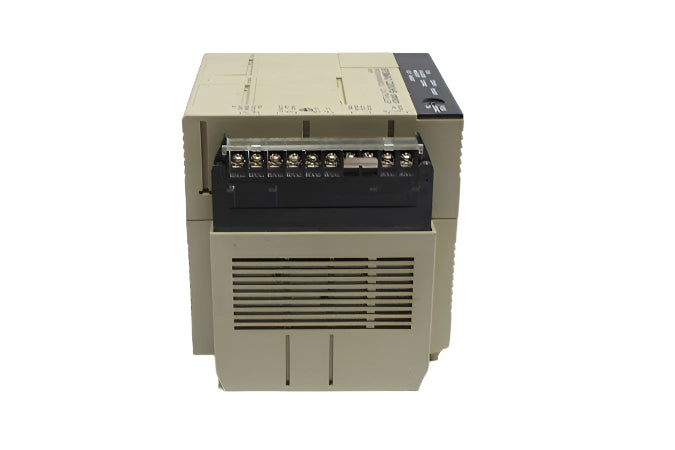

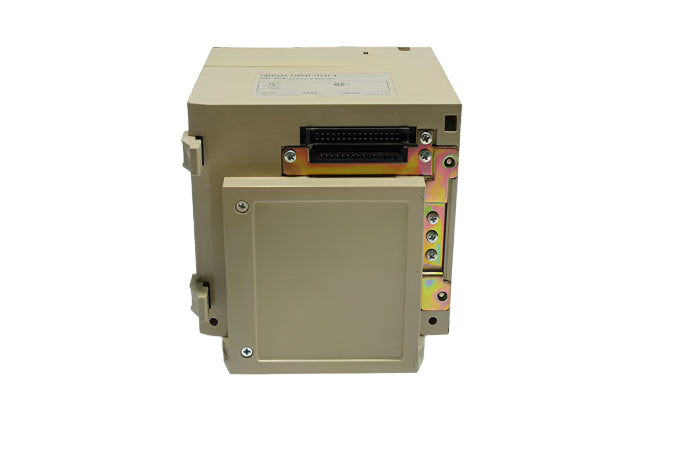

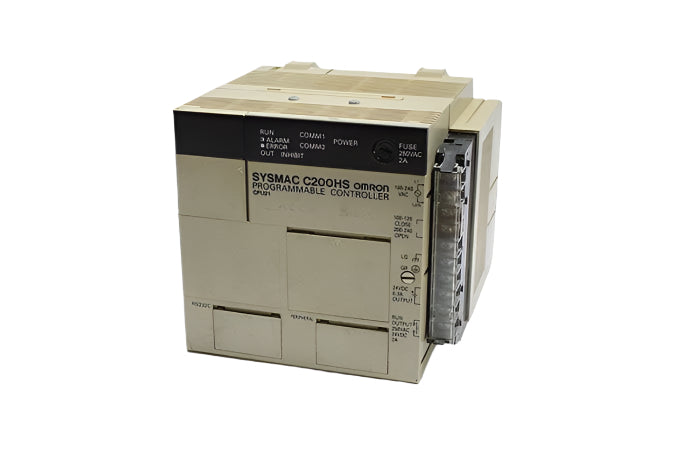

C200HS-CPU21-E | Omron Sysmatic CPU Unit PIC Module
- Regular price
- $744.00
- Sale price
- $744.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C200HS-CPU21-E
Description
The C200HS-CPU21-E is a powerful CPU module from the SYSMAC C200HS series, offering integrated clock/calendar and RS-232C communications. It supports versatile I/O and memory management for industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
PLCs/Machine Control
|
| Part Number | C200HS-CPU21-E |
| Subcategory | PLC Module/Rack |
| Series | SYSMAC C200HS |
| Power Supply | 100-120 VAC/200-240 VAC |
| Input power supply | 0.3 A, 24 VDC |
| Supply voltage frequency | 50/60Hz |
| Power consumption | 100 VA |
| Surge current | 30 amps |
| Port | Built-in RS-232C Port |
| Programming Language | Ladder diagram |
| Memory capacity | 15.2k words (with 16k word memory) |
| Instruction length | 1 to 4 words/instruction, 1 address/instruction |
| I/O control method | Cyclic, programmed, scheduled, and zero-cross refreshing |
| Data Memory (DM) | 6,144 words (read/write) |
| Weight | 3.26 lbs |
Information About C200HS-CPU21-E
The C200HS-CPU21-E is a central processing unit module for the SYSMAC C200HS programmable controller platform, designed to manage a broad range of factory automation processes. Operating on 100–240 VAC and drawing 0.3 A at 24 VDC internally, the unit provides up to 15.2k words of memory for user programs, using ladder diagram programming. With a built-in clock/calendar and an RS-232C communication port, it allows time-based control as well as connectivity with external devices. The module accommodates multiple I/O control methods, including cyclic, scheduled, and zero-cross refreshing for precision-timed operations. Its compatibility with link modules, high-density I/O units, and specialized modules allows the C200HS-CPU21-E to function as the backbone of flexible, scalable control systems in demanding industrial environments.
Key Features:
- Integrated Clock/Calendar Function: Enables time-based control and logging, essential for scheduling and event tracking in automated processes.
- Built-In RS-232C Communication Port: Provides native serial connectivity for HMI, PC, or other external interfaces without additional modules.
- Expanded Memory Capacity: Offers up to 15.2k words of memory (with 16k word memory), allowing large and complex ladder programs.
- Flexible I/O Control Methods: Supports cyclic, programmed, scheduled, and zero-cross refreshing for high-precision and responsive control.
- Versatile Power Input Range: Accepts 100–120 VAC and 200–240 VAC with 50/60 Hz frequency, making it adaptable to global electrical standards.
- Robust Surge Tolerance: Withstands up to 30 amps of surge current, ensuring stability during power fluctuations.
- Compact Input Power Design: Requires just 0.3 A at 24 VDC internally, maintaining efficient operation.
- Ladder Diagram Programming Support: Compatible with standard PLC programming environments and engineering workflows.
- High DM Capacity: 6,144 words of read/write data memory support extensive variable storage for process control.
- Modular Expansion Compatibility: Works with C200HS-SLK12/22, C200HS-SNT32, and a wide range of I/O and special function modules.
The C200HS-CPU21-E delivers advanced PLC control with built-in communication and flexible memory in a robust modular format.
