C200HS-CPU31-E | Omron Power Supply

Description

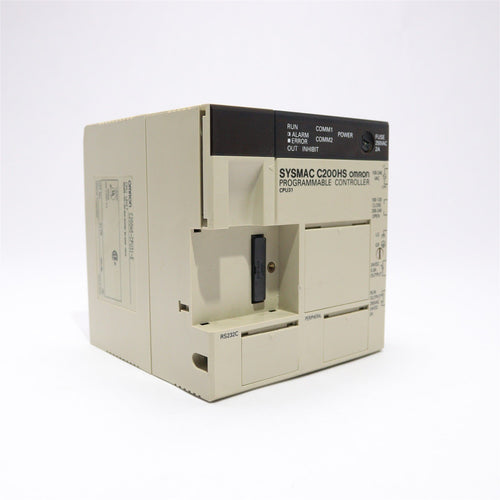

The Omron C200HS-CPU31-E is a high-performance Programmable Logic Controller (PLC) designed for complex industrial automation tasks. It features a built-in 120 VAC power supply, eliminating the need for an external power source.

Technical Specifications

Information About C200HS-CPU31-E

The Omron C200HS-CPU31-E is a powerful and versatile Programmable Logic Controller (PLC) designed for complex industrial automation applications. With its integrated power supply and advanced control capabilities, it offers reliable and efficient performance in diverse automation tasks.

Key Specifications:

• Model: C200HS-CPU31-E
• Type: Programmable Logic Controller (PLC)
• Integrated Power Supply:
  • Input Voltage: 100-120 VAC / 200-240 VAC
  • Frequency: 50/60 Hz
• Program Memory: 15,200 words
• Data Memory (DM): 6,144 words
• Extended Data Memory (EM): 3,000 words
• I/O Capacity: Supports up to 480 I/O points
• Communication Ports:
  • Built-in RS-232C port for connection to programming devices, HMIs, and other peripherals
• Processing Speed: High-speed instruction execution for complex control applications
• Real-Time Clock: Built-in real-time clock/calendar for time-based control operations
• Mounting: Compatible with Omron C200H-BC series backplanes

Key Features:

• Integrated Power Supply:
  The C200HS-CPU31-E includes a built-in AC power supply, supporting both 100-120 VAC and 200-240 VAC input, eliminating the need for an external power source.

• Advanced Memory Capacity:
  With 15,200 words of program memory and 9,144 words combined data and extended data memory, it can handle complex automation programs with ease.

• Flexible I/O Configuration:
  Supports up to 480 I/O points, enabling the connection of a wide range of sensors, actuators, and other control devices.

• Communication Capabilities:
  The built-in RS-232C port facilitates seamless communication with external devices like HMIs, SCADA systems, and other PLCs.

• Real-Time Clock/Calendar:
  Enables precise scheduling and time-based control tasks, essential for applications like batch processing or timed operations.

• Modular Design:
  Compatible with Omron’s C200H-BC series backplanes, allowing for easy expansion and integration with various I/O modules and accessories.

Benefits:

• High Reliability:
  Designed for industrial environments, offering robust performance and dependable operation in demanding conditions.

• Ease of Integration:
  The RS-232C port and modular architecture simplify integration with existing control systems and peripheral devices.

• Enhanced Flexibility:
  Supports a broad range of I/O modules and configurations, making it adaptable to diverse automation requirements.

• Reduced Installation Costs:
  The integrated power supply and compact design minimize the need for additional components, reducing overall system costs.

Applications:

• Factory Automation:
  Control of assembly lines, robotic systems, and automated machinery.

• Process Control:
  Managing complex processes in chemical plants, food processing, and pharmaceutical manufacturing.

• Material Handling:
  Automation of conveyor systems, sorting lines, and packaging equipment.

• Building Automation:
  Control of HVAC systems, lighting, and security systems.

• Energy Management:
  Monitoring and controlling energy consumption in industrial facilities.

The Omron C200HS-CPU31-E is a robust and flexible PLC solution, ideal for a wide range of industrial automation applications. Its integrated power supply, extensive memory capacity, and flexible I/O options make it a reliable choice for complex control tasks.
