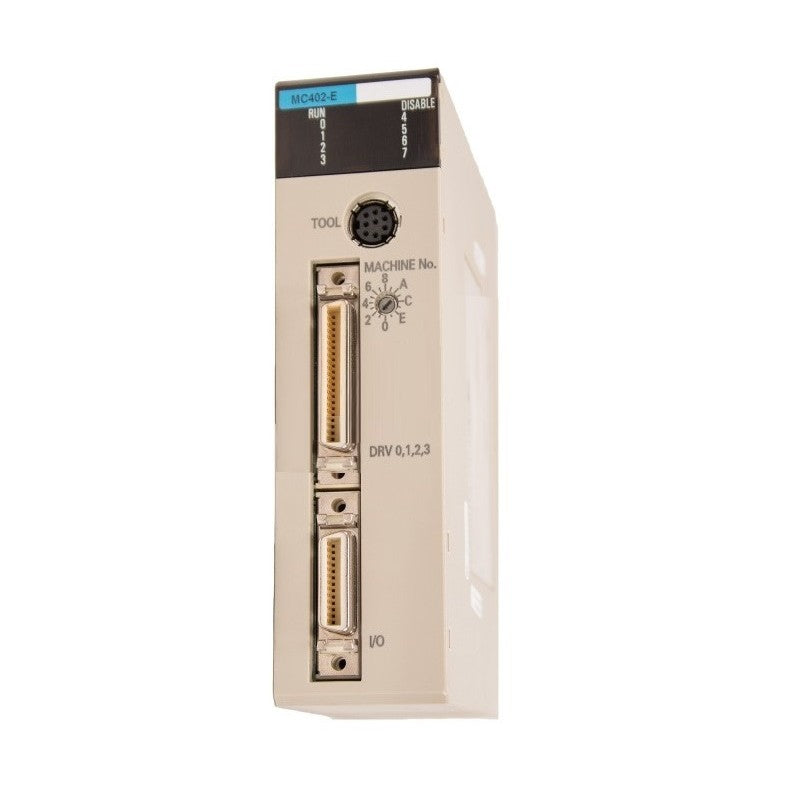

C200HW-MC402-E | Omron Motion Control Module for C200H PLC Systems

Description

The Omron C200HW-MC402-E is a motion control module designed for precise multi-axis control within Omron C200H series PLC systems. It supports coordinated motion for servo and virtual axes, enabling accurate speed and positioning control in industrial automation applications.

Technical Specifications

Information About C200HW-MC402-E

The C200HW-MC402-E is an Omron motion control module from the C200H platform, engineered for advanced axis management in PLC-based systems. It installs directly on the CPU backplane and integrates seamlessly with existing C200H controllers. The module supports both servo and virtual axes, allowing flexible motion configurations without additional hardware. It is commonly used in machinery requiring synchronized movement, speed regulation, and coordinated positioning.

Key Features:

• Multi-axis support: Controls up to 8 total axes, including servo and virtual axes

• Servo integration: Supports 4 dedicated servo axes for precise motion control

• Virtual axis capability: Enables advanced synchronization using 4 virtual axes

• Backplane-powered design: Operates directly from the PLC CPU backplane

• External power input: Uses 24 VDC supply for auxiliary functions

• Speed control functionality: Provides speed regulation for up to 4 axes

• Industrial operating range: Designed for stable operation in industrial environments

The C200HW-MC402-E delivers the reliability and precision required for coordinated multi-axis motion control systems.
