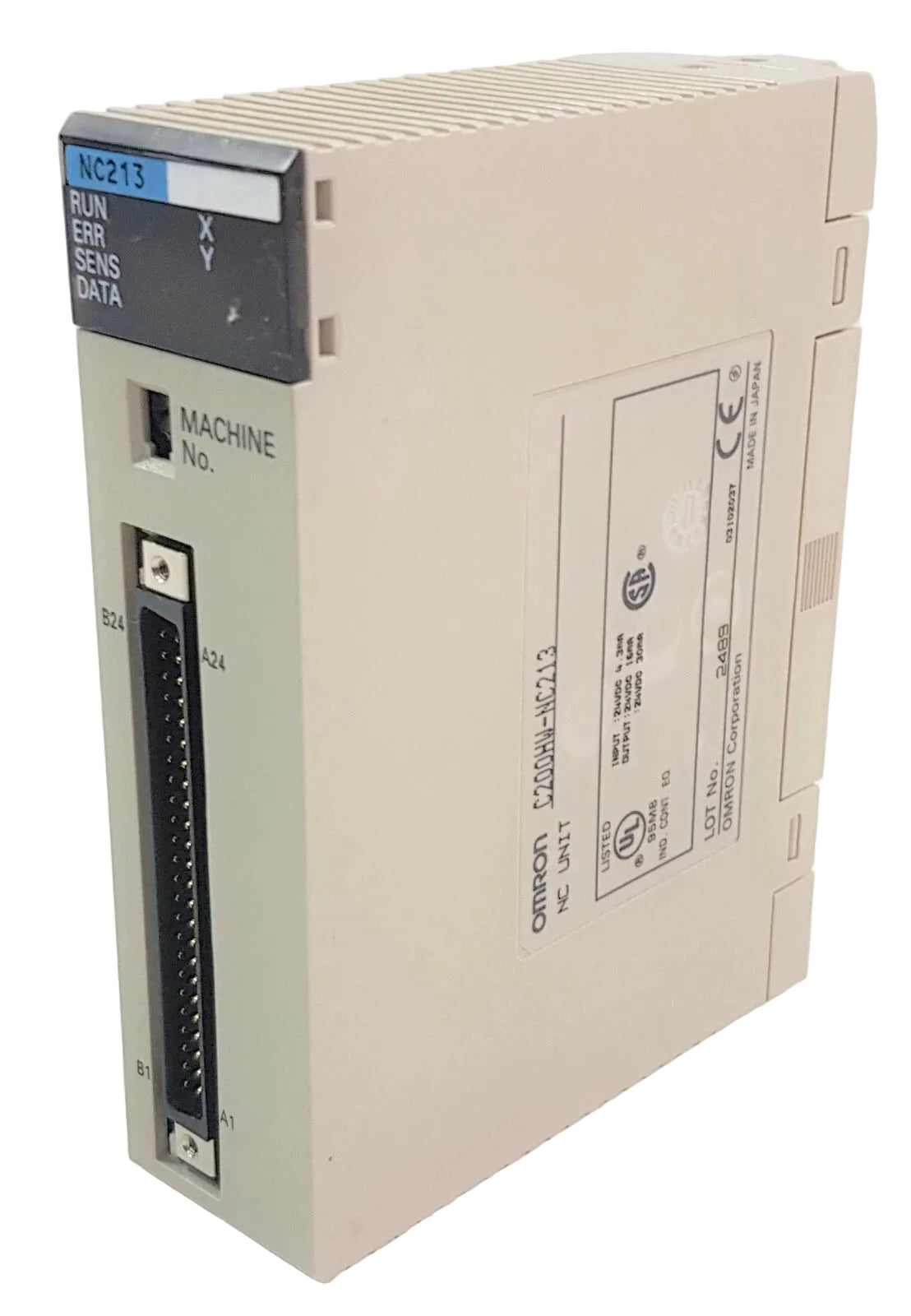

C200HW-NC213 | Omron 2-Axis PLC Position Control Unit
- Regular price
- $487.00
- Sale price
- $487.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C200HW-NC213
Description
The Omron C200HW-NC213 is a 2-axis position control unit designed for the C200H PLC platform to manage precise motion control tasks. It generates pulse-train outputs for open-loop control of stepping motor drivers or pulse-input type servomotor drivers. With high-speed positioning capability up to 500 Kpps, this module enables accurate and flexible motion control in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | C200HW-NC213 |
| Subcategory | PLC Position Control Units |
| Product Line | C200H |
| Axis Control | 2 Axes |
| Control Method | Open-Loop Pulse Train Output |
| Compatible Drivers | Pulse-Input Servomotor or Stepping Motor Drivers |
| Positioning Range | -9,999,999 to 9,999,999 Pulses |
| Speed Range | 1 pps to 500 Kpps |
| Acceleration/Deceleration | 0 to 250 seconds |
| I/O Requirements | 10 Words, 1 Slot |
| Input Voltage | 24 VDC ±10% |
| Input Current | 4.3 mA (at 24 V) typical |
| Internal Current Consumption | 5 VDC at 300 mA max. |
| Positioning Operations | Memory Operation and Direct Operation |
| Weight | 0.50 lbs (0.23 kg) |
Information About C200HW-NC213
The C200HW-NC213 is a dedicated position control unit engineered for integration into Omron C200H Series PLC racks. It supports two independent control axes and utilizes open-loop pulse train output to drive compatible stepping motors or pulse-input servomotor drivers. The unit allows both memory-based positioning operations and direct command execution, offering flexible motion programming options. Designed to occupy one slot with 10 I/O words, it operates with 24 VDC input and consumes up to 300 mA at 5 VDC internally, making it suitable for precision machine control applications.
Key Features:
- 2-Axis Control: Independently controls two motion axes for coordinated positioning tasks.
- Pulse-Train Output: Supports open-loop control of stepping motors and pulse-input servo drivers.
- Wide Positioning Range: Handles positions from -9,999,999 to 9,999,999 pulses.
- High-Speed Output: Adjustable speed range from 1 pps to 500 Kpps.
- Flexible Operation Modes: Supports memory operation and direct operation positioning.
- Adjustable Acceleration/Deceleration: Configurable from 0 to 250 seconds to reach maximum speed.
- Compact Rack Integration: Requires 1 slot and 10 I/O words within the C200H PLC system.
- Stable Power Requirements: Operates at 24 VDC ±10% with 5 VDC internal consumption up to 300 mA.
The C200HW-NC213 delivers the reliability and precision required for accurate multi-axis positioning in PLC-based motion control systems.
