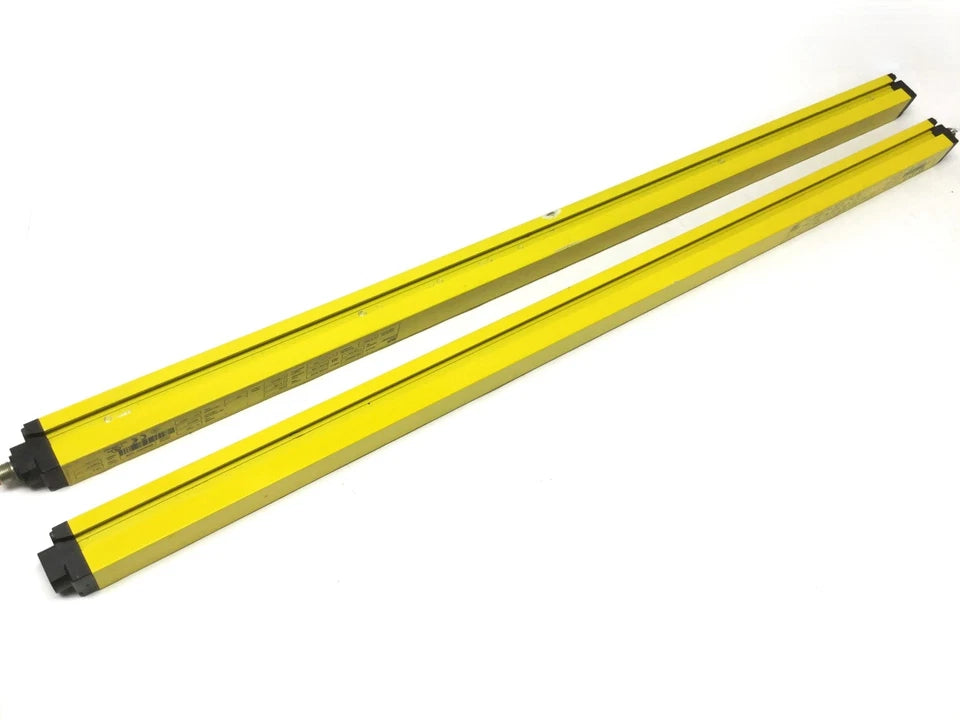

C20E-075304A11 | SICK C2000 Safety Light Curtain Receiver 40 Mm Resolution 750 Mm Height
- Regular price
- $2,549.00
- Sale price
- $2,549.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C20E-075304A11
Description
The SICK C20E-075304A11 is a safety light curtain receiver designed for personnel protection in industrial machine guarding applications. It provides reliable Type 2 safety monitoring with a 40 mm resolution, optical synchronisation, and integrated diagnostic display.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Safety Sensors |
| Part Number | C20E-075304A11 |
| Subcategory | Safety Light Curtains |
| System Part | Receiver |
| Safety Type | Type 2 (IEC 61496-1) |
| Resolution | 40 mm |
| Protective Field Height | 750 mm |
| Response Time | ≤ 34 ms |
| Synchronization | Optical synchronisation |
| Safety Integrity Level | SIL 1 (IEC 61508) |
| Safety Category | Category 2 (EN ISO 13849) |
| Internal Test Rate | 13 tests/s |
| Maximum Demand Rate | ≤ 8 min⁻¹ |
| Output Type | 2 × PNP semiconductor outputs |

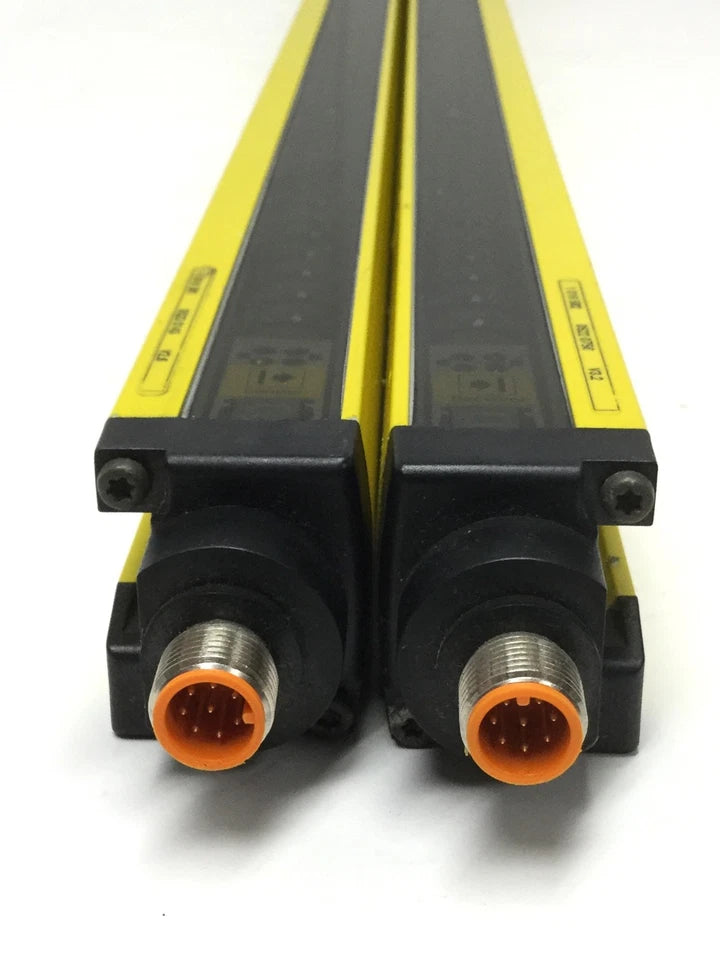

| System Connection | M12 male connector, 8-pin |
| Display | 7-segment display |
| Housing Cross-Section | 34 mm × 29 mm |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | 0 °C … +55 °C |
| Storage Temperature | –25 °C … +70 °C |
| Weight | 3.5 lbs |
Information About C20E-075304A11
The C20E-075304A11 is part of SICK’s C2000 safety light curtain series developed for standard machine safeguarding and access protection. This receiver unit works together with a compatible emitter to form a certified Type 2 safety system suitable for low to medium risk applications. Its 40 mm resolution supports reliable hand and body detection while maintaining practical safety distances. Optical synchronisation simplifies installation, and the integrated 7-segment display allows quick status checks and diagnostics during operation.
Key Features
- Type 2 Safety Design: Complies with IEC 61496-1 requirements for standard industrial machine safeguarding.
- 40 Mm Resolution: Supports dependable detection of hand and body intrusion in guarded areas.
- 750 Mm Protective Field Height: Provides vertical coverage suitable for guarding machine access points.
- Optical Synchronisation: Eliminates the need for hardwired synchronization, reducing installation complexity.
- Dual PNP Semiconductor Outputs: Enables direct and reliable connection to safety control circuits.
- Integrated 7-Segment Display: Provides clear visual indication of operating status and diagnostics.
- IP65 Rated Housing: Ensures reliable performance in dusty and humid industrial environments.
The C20E-075304A11 delivers the reliability and precision required for effective personnel protection in Type 2 industrial safety light curtain systems.
