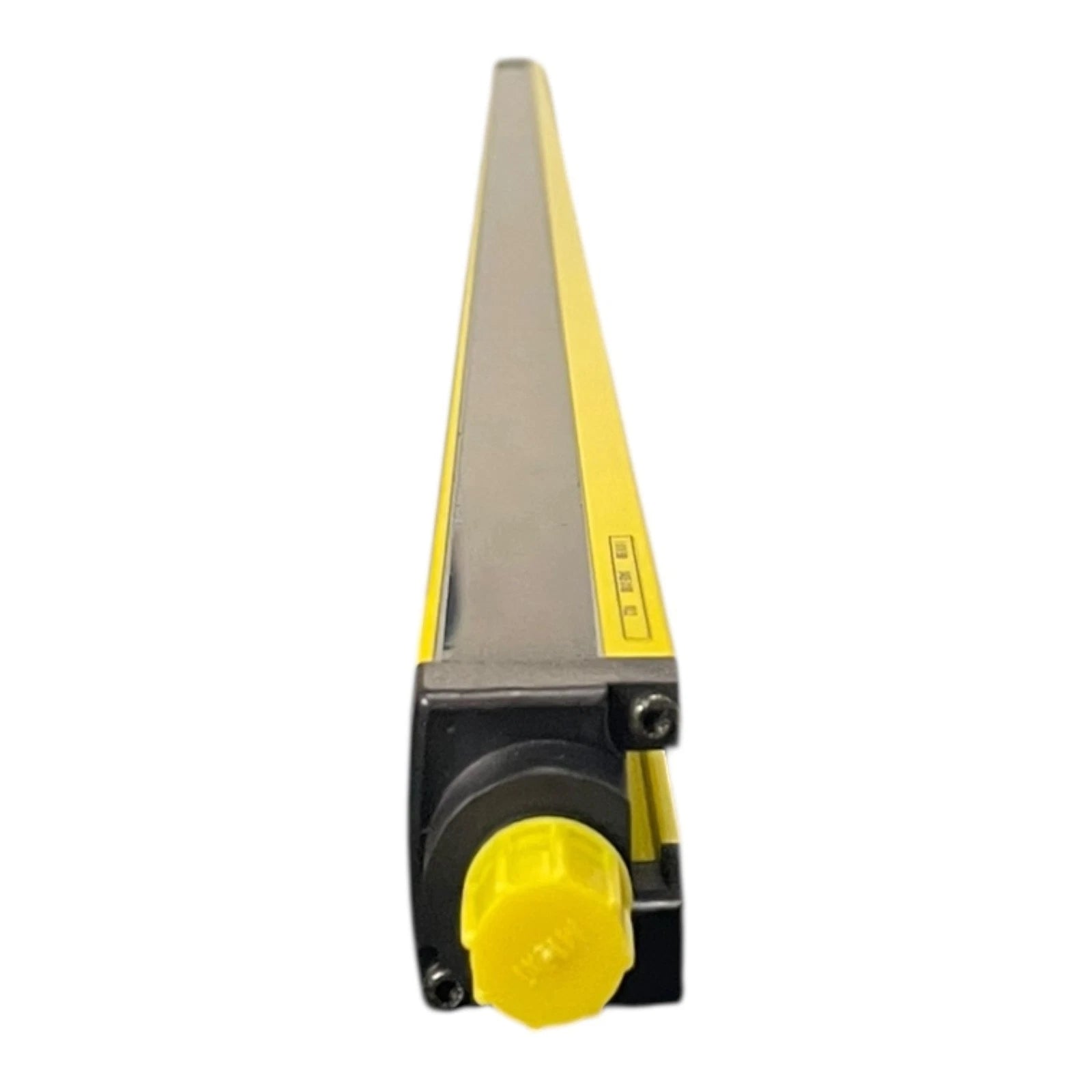

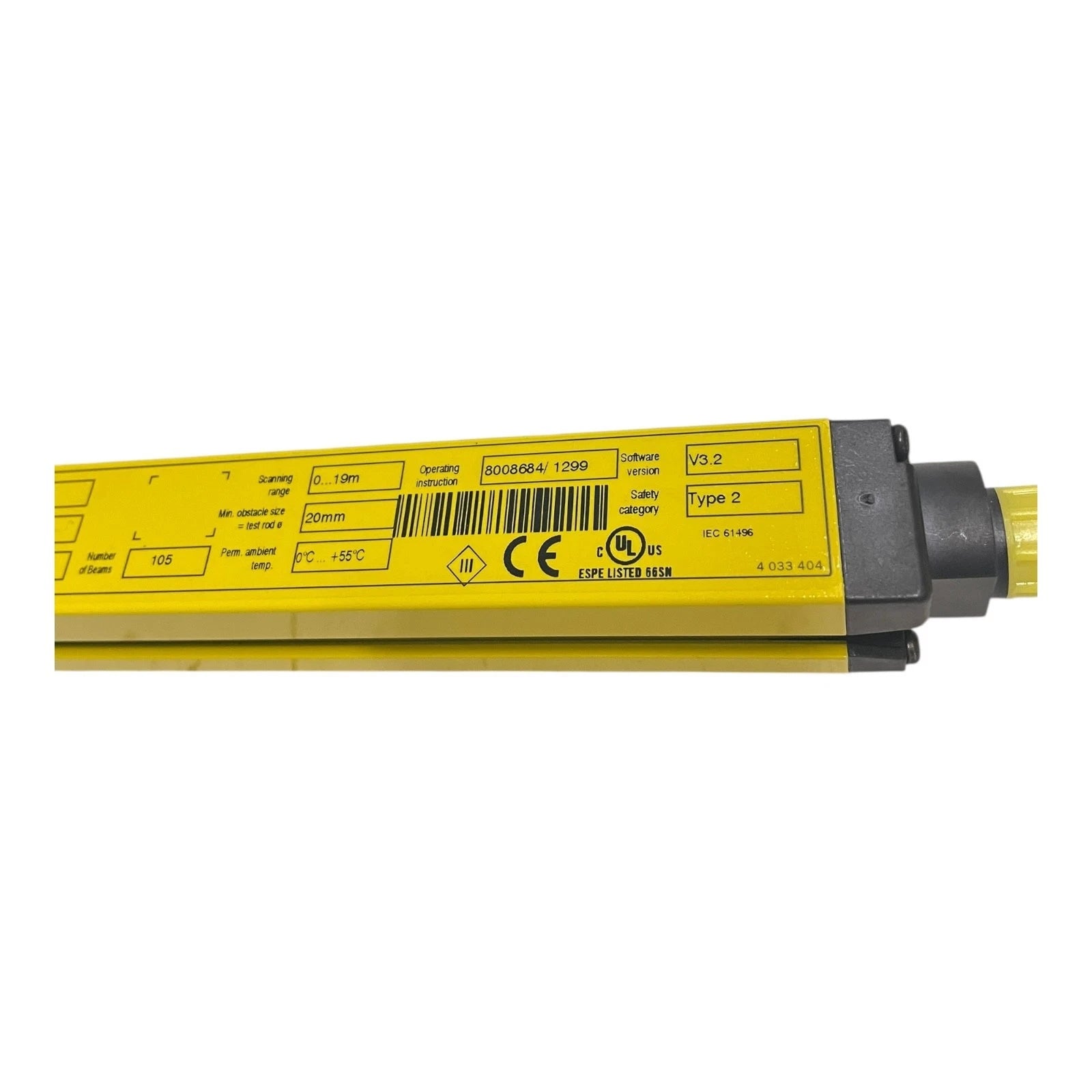

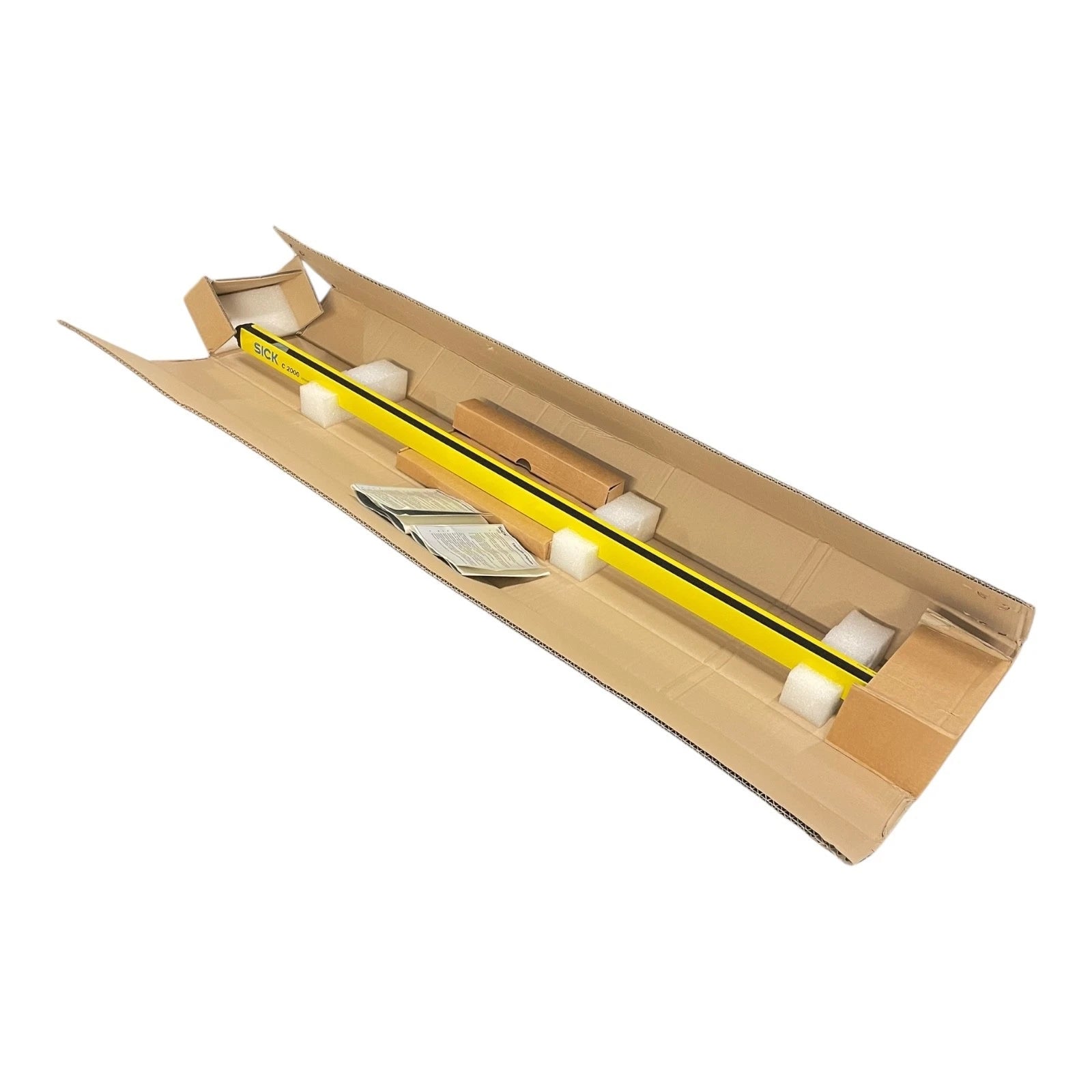

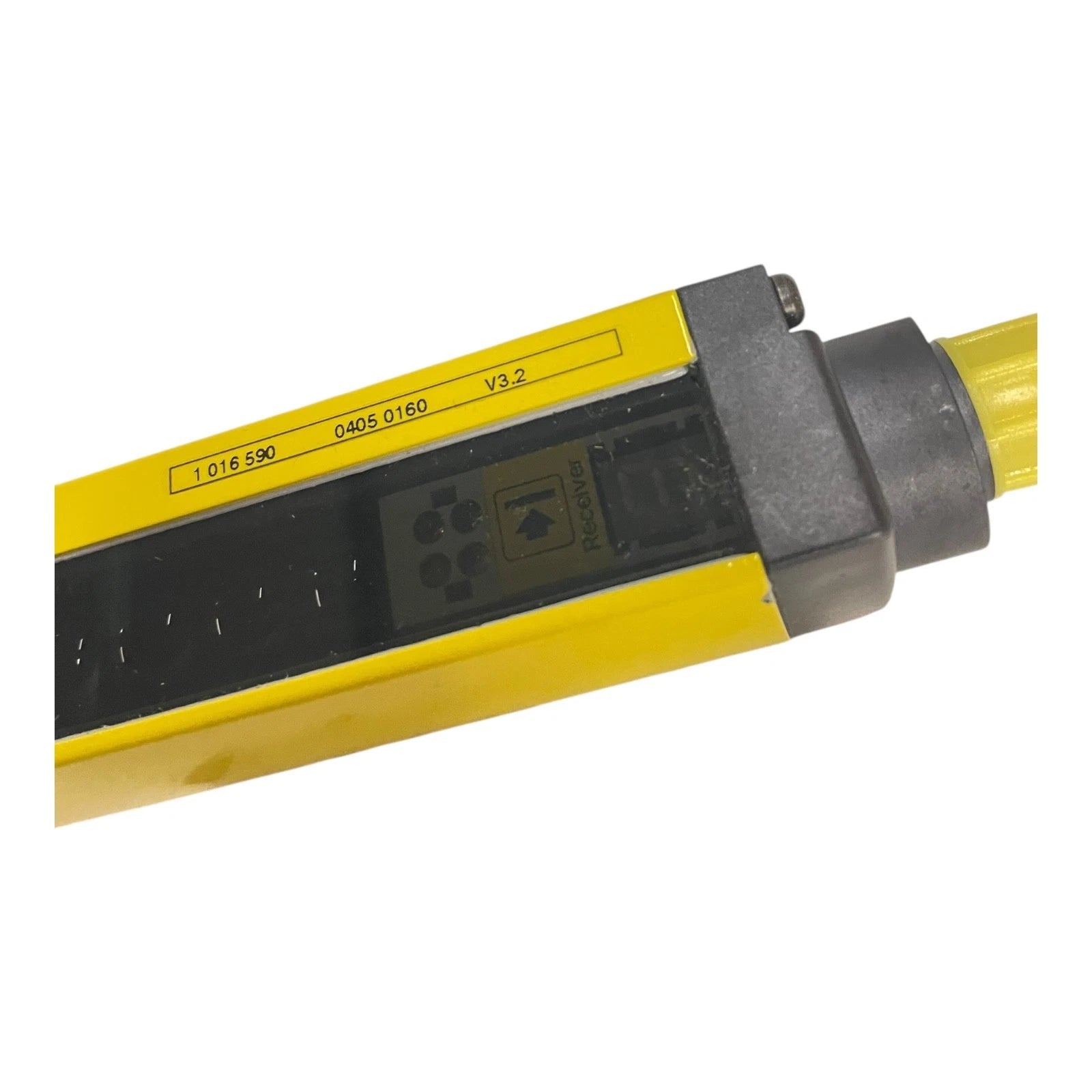

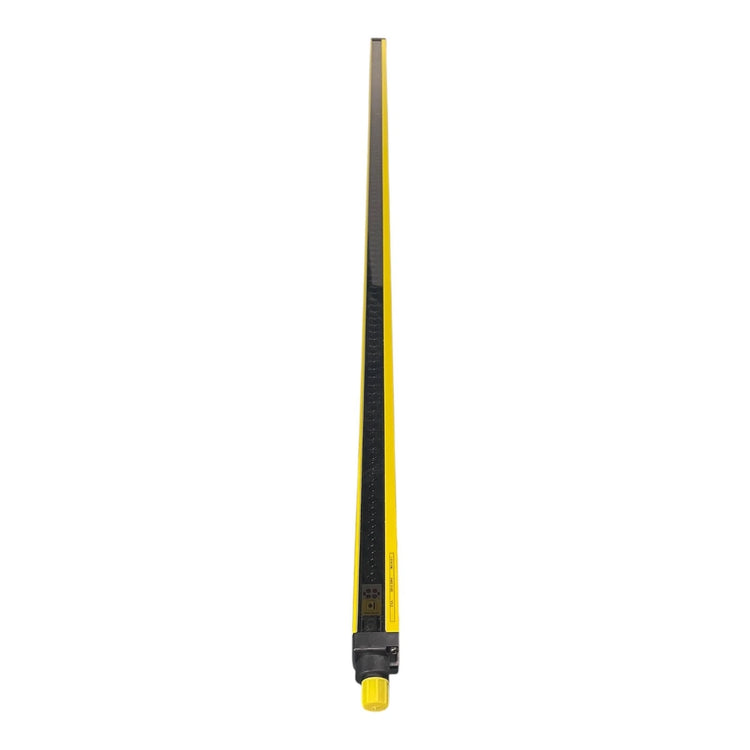

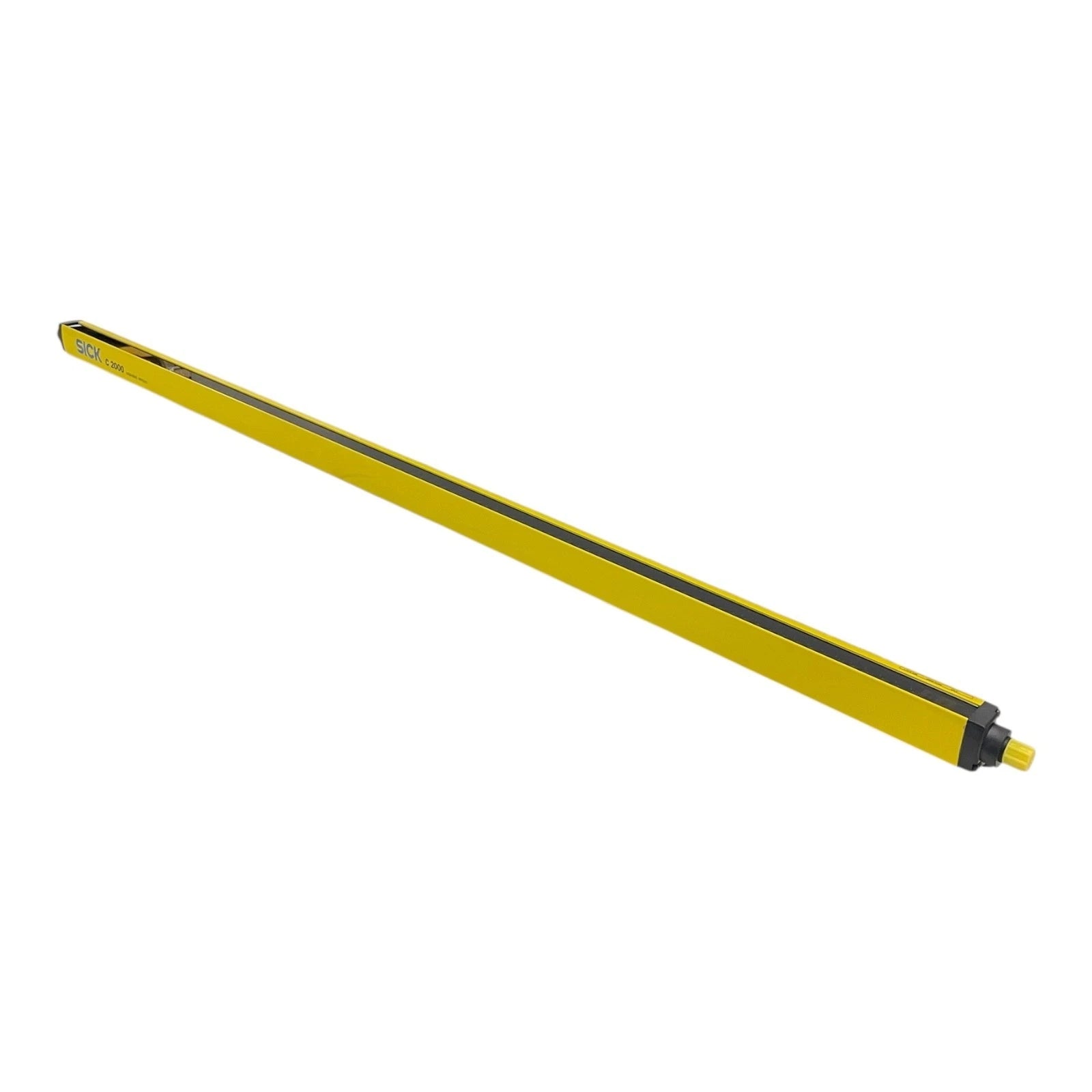

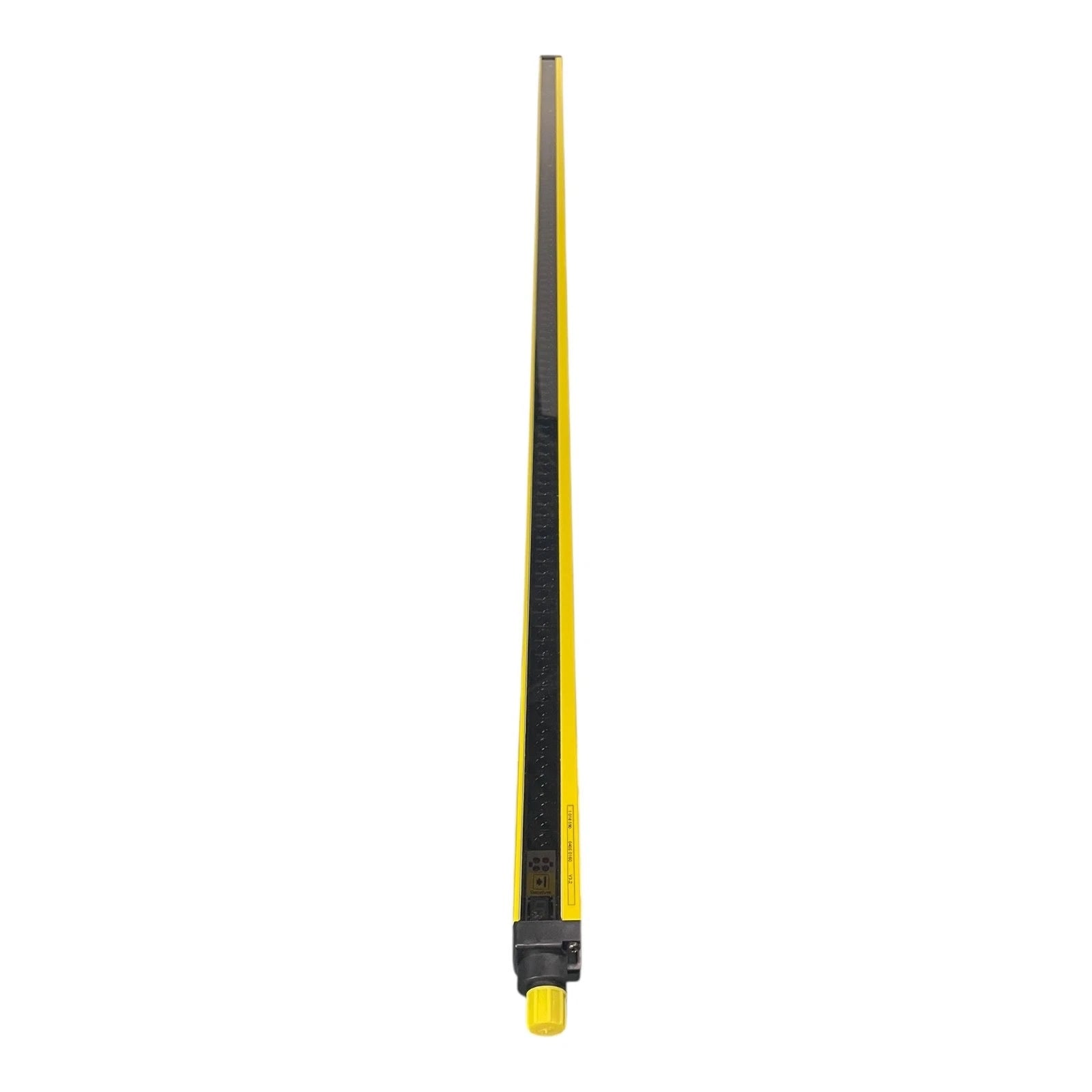

C20E-105302A11 | SICK C2000 Standard Safety Light Curtain Receiver 20 Mm Resolution 1050 Mm Height
- Regular price
- $2,959.00
- Sale price
- $2,959.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C20E-105302A11
Description
The SICK C20E-105302A11 is a Type 2 safety light curtain receiver from the C2000 Standard series designed for reliable personnel protection in industrial environments. It provides precise detection with a 20 mm resolution and a protective field height of 1050 mm while operating on a 24 V DC supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Safety Sensors |
| Part Number | C20E-105302A11 |
| Subcategory | Safety Light Curtains |
| Series | C2000 Standard |
| System Part | Receiver |
| Safety Type | Type 2 (IEC 61496-1) |
| Resolution | 20 mm |
| Protective Field Height | 1,050 mm |
| Response Time | ≤ 34 ms |
| Synchronization | Optical synchronisation |
| Safety Integrity Level | SIL1 (IEC 61508), SILCL1 (EN 62061) |
| Safety Category | Category 2 (EN ISO 13849) |
| Internal Test Rate | 13 tests/s |
| Maximum Demand Rate | ≤ 8 min⁻¹ |
| Supply Voltage | 24 V DC |
| System Connection | M12 male connector, 8-pin |
| Conductor Cross Section | 0.25 mm² |
| Display | 7-segment LED display |
| Housing Cross-Section | 34 mm × 29 mm |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | 0 °C … +55 °C |
| Storage Temperature | –25 °C … +70 °C |
| Weight | 3.3 lbs |
Information About C20E-105302A11
The C20E-105302A11 is part of SICK’s C2000 Standard safety light curtain family developed for basic machine guarding and access protection tasks. This receiver unit operates together with a compatible C2000 emitter to create a Type 2 protective system with defined safety performance levels. Its 20 mm resolution supports reliable finger and hand detection in low to medium risk applications. Optical synchronization simplifies installation, while the integrated 7-segment LED display supports quick status indication and diagnostics.
Key Features
- Type 2 Safety Compliance: Designed according to IEC 61496-1 for standard machine safeguarding applications.
- 20 Mm Resolution: Enables accurate finger and hand detection for improved personnel protection.
- 1050 Mm Protective Field Height: Provides extended vertical coverage for guarding machine access areas.
- Optical Synchronisation: Eliminates hardwired synchronization lines, reducing wiring complexity.
- Integrated LED Display: Uses a 7-segment display for clear status monitoring and diagnostics.
- Compact Housing Design: Slim cross-section supports installation in space-restricted machine layouts.
- IP65 Environmental Protection: Ensures reliable operation in dusty and humid industrial environments.
The C20E-105302A11 delivers the reliability and precision required for consistent personnel protection in Type 2 industrial safety light curtain systems.
