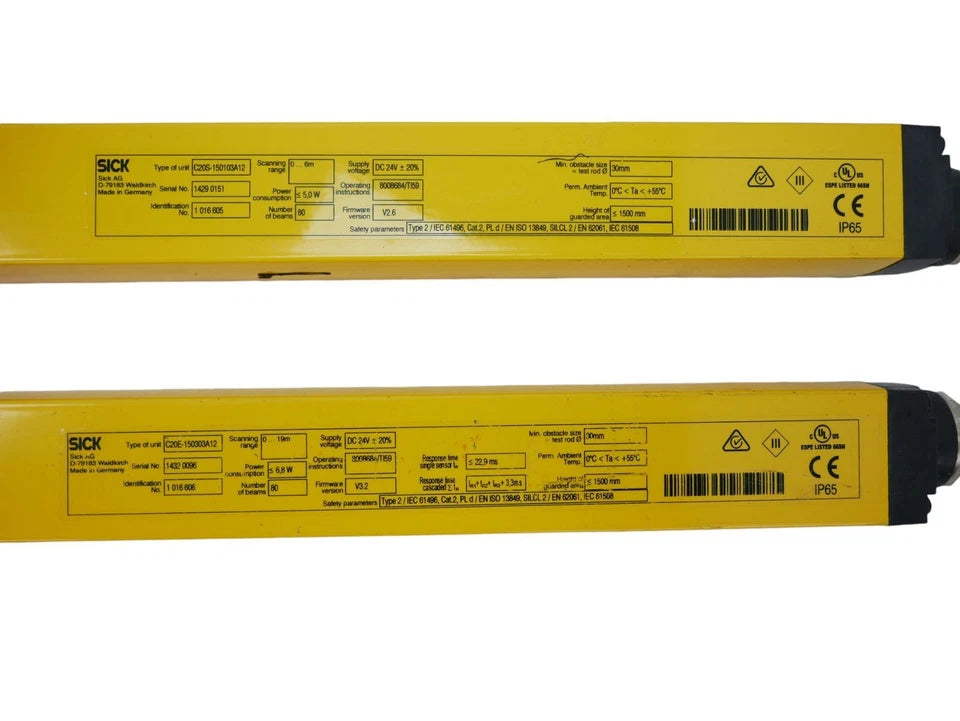

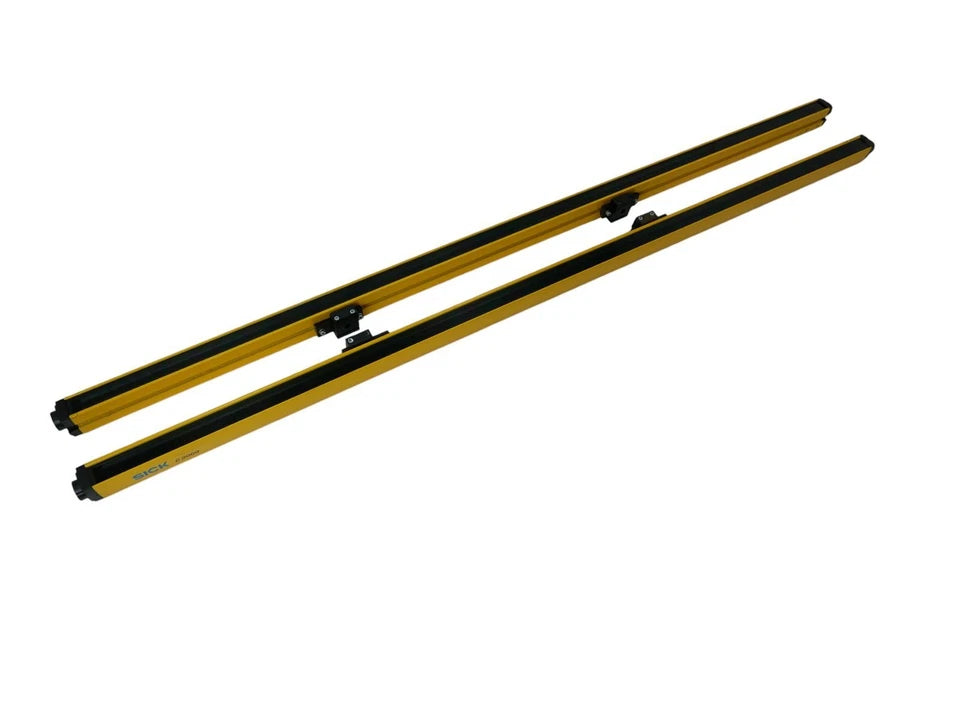

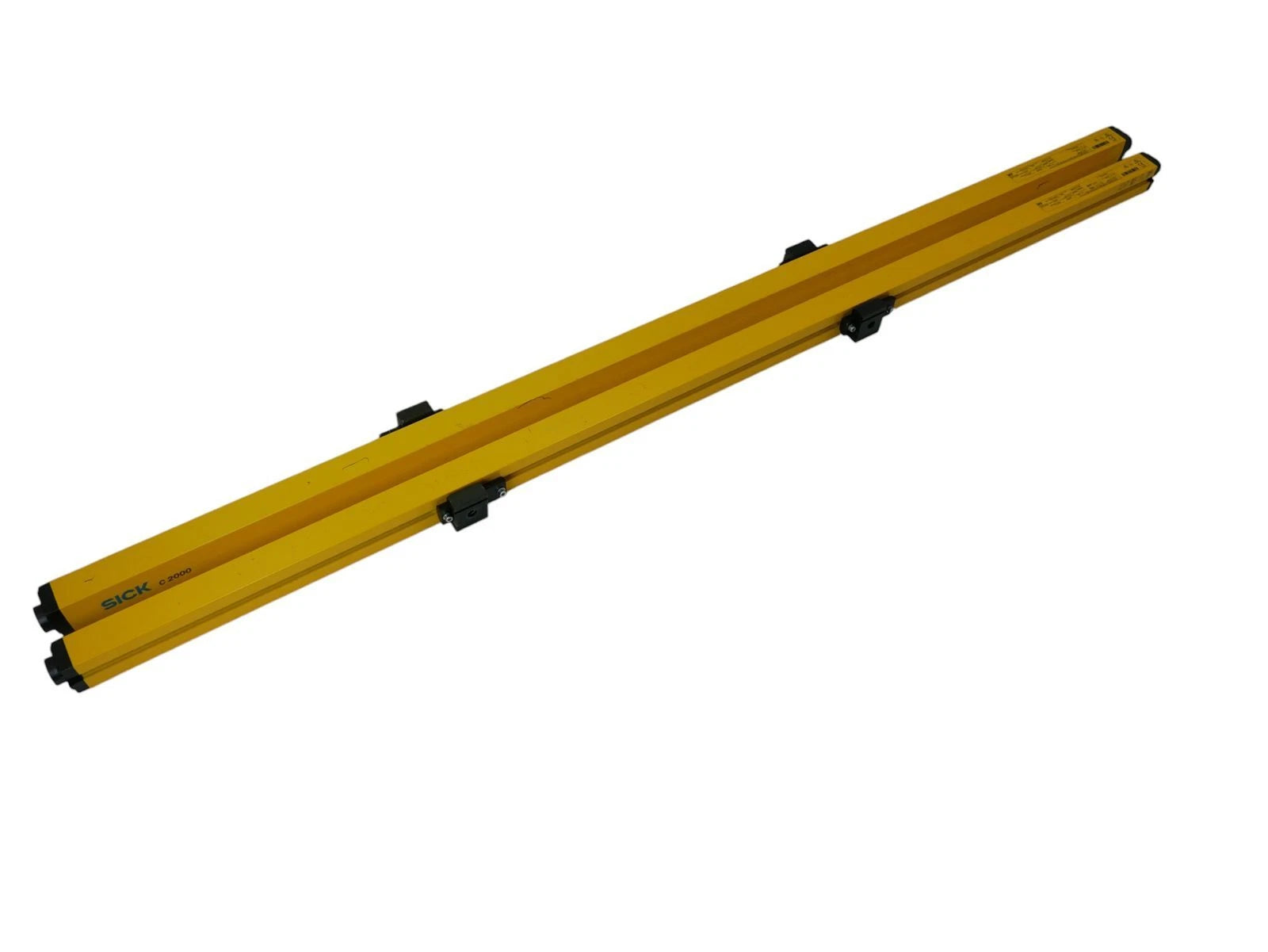

C20E-150303A12 | SICK Safety Light Curtain 1500 mm Protective Height, 30 mm Resolution
- Regular price
- $3,574.00
- Sale price
- $3,574.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C20E-150303A12
Description
The SICK C20E-150303A12 is a safety light curtain designed to provide reliable personnel protection for hazardous machine areas. It features a 30 mm resolution with a 1500 mm protective field height and fast response time, making it suitable for industrial applications requiring high-performance safety guarding. This device ensures non-contact protection while offering safety integrity and compliance with international safety standards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C20E-150303A12 |
| Subcategory | Safety Light Curtains |
| Resolution | 30 mm |
| Protective Field Height | 1500 mm |
| Response Time | ≤ 34 ms |
| Synchronization | Optical synchronization |
| Type | Type 2 (IEC 61496-1) |
| Safety Integrity Level | SIL 1 (IEC 61508) |
| Performance Level | PL c (EN ISO 13849) |
| Test Rate (Internal) | 13/s (EN ISO 13849) |
| Maximum Demand Rate | ≤ 8 min⁻¹ (EN ISO 13849) |
| PFHD | 2.2 x 10⁻⁸ (EN ISO 13849) |
| Mission Time | 20 years (EN ISO 13849) |
| Safe State in Fault | At least one OSSD is OFF |
| Output Type | 2 PNP semiconductors, short-circuit protected |
| Switching Voltage (ON) | 24 VDC (VS – 2.25 VDC) |
| Switching Voltage (OFF) | ≤ 3.5 VDC |
| Current-Carrying Capacity | ≤ 500 mA per OSSD |
| Housing Cross-Section | 48 mm x 40 mm |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –25 °C to +70 °C |
| Air Humidity | 15 % to 95 %, Non-condensing |
| Vibration Resistance | 5 g, 10 Hz to 55 Hz (IEC 68-2-6) |
| Shock Resistance | 10 g, 16 ms (EN 60068-2-29) |
| Electrical Connection | 5-pin M12 male connector |
| Weight | Approx. 1.0 kg |
Information About C20E-150303A12
The C20E-150303A12 is part of SICK’s C20E series of safety light curtains, built for industrial automation systems to ensure personnel protection. It uses optical synchronization and provides Type 2 safety as per IEC 61496-1 with a performance level of PL c, making it suitable for medium-risk applications. The light curtain is designed to integrate easily with existing control systems, offering outputs via short-circuit protected PNP semiconductors. It also features a robust enclosure with IP65 protection and reliable performance across varying environmental conditions.
Key Features:
- 30 mm Resolution: Provides precise detection of small objects and personnel.
- 1500 mm Protective Field Height: Suitable for safeguarding larger machine openings.
- Fast Response Time (≤ 34 ms): Ensures quick detection to prevent accidents.
- Optical Synchronization: Facilitates integration with other safety systems.
- Type 2 Safety (IEC 61496-1): Meets safety requirements for medium-risk applications.
- Safety Integrity Level SIL 1 (IEC 61508): Ensures reliable safety performance for personnel protection.
- Performance Level PL c (EN ISO 13849): Suitable for medium safety requirements in machinery.
- IP65 Enclosure Rating: Provides protection against dust and water ingress.
The C20E-150303A12 delivers the reliability and precision required for non-contact machine safeguarding in industrial automation systems.
