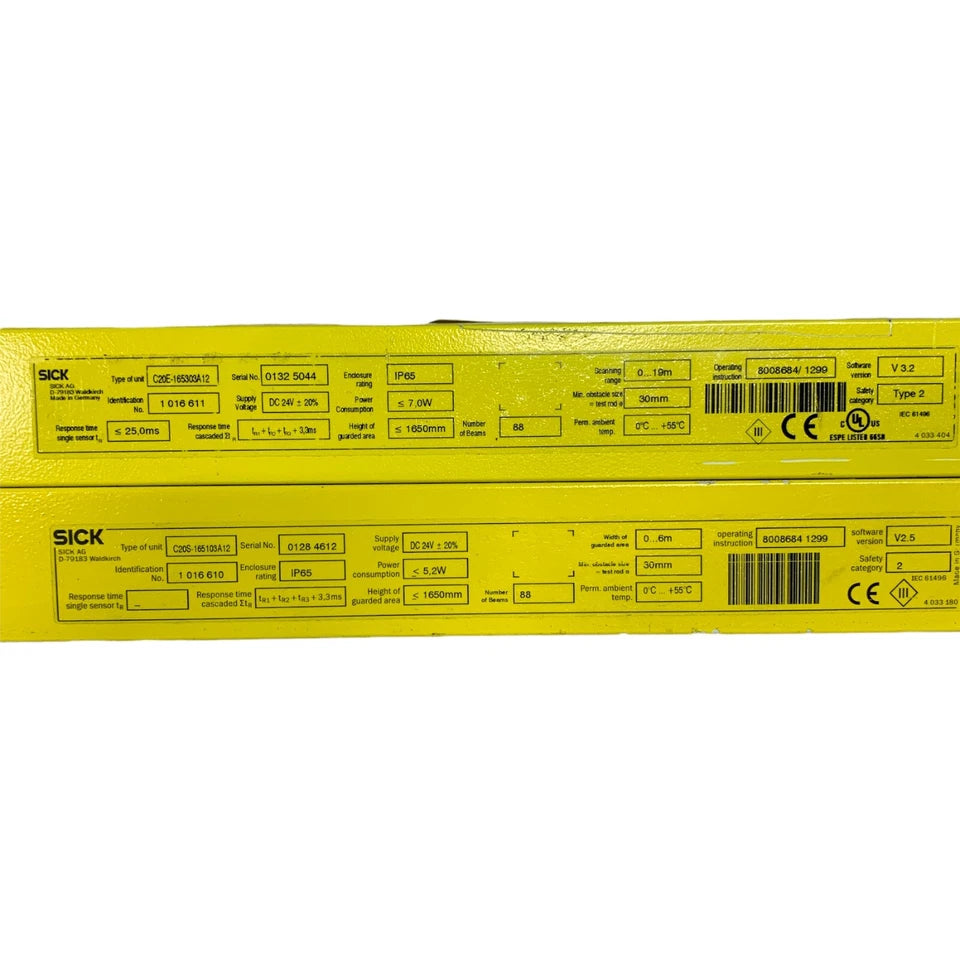

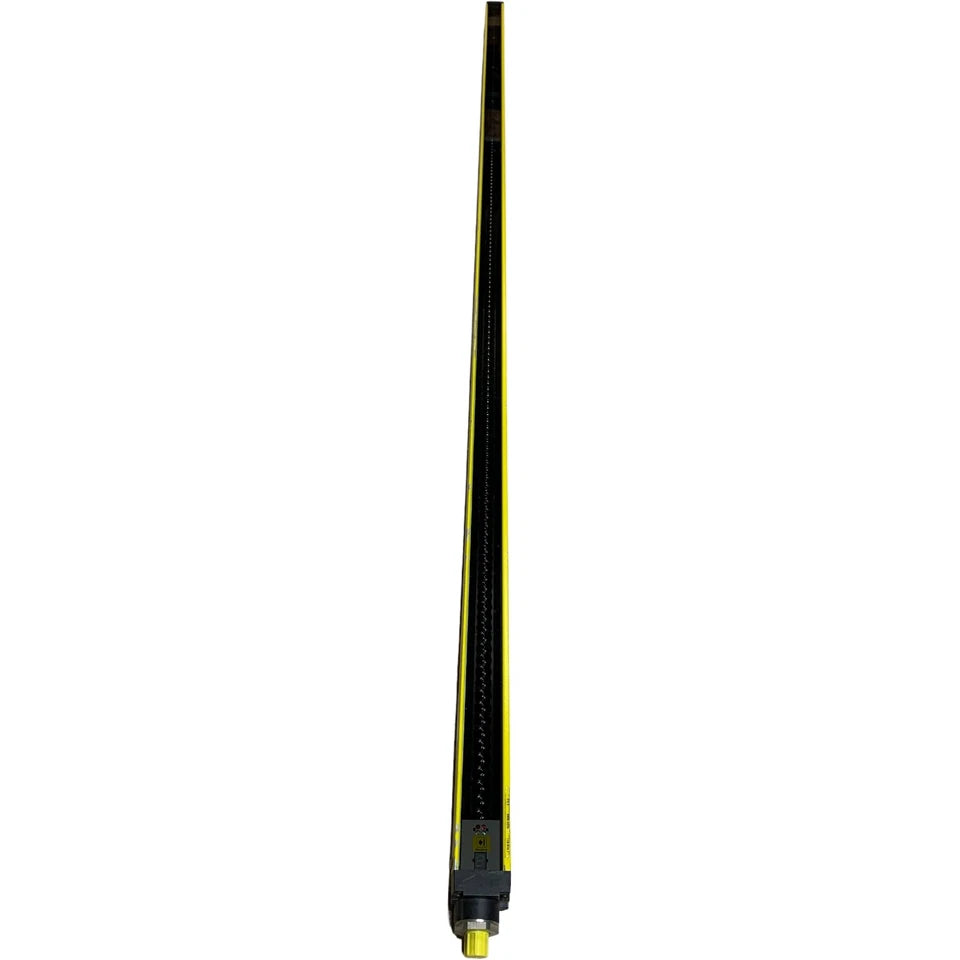

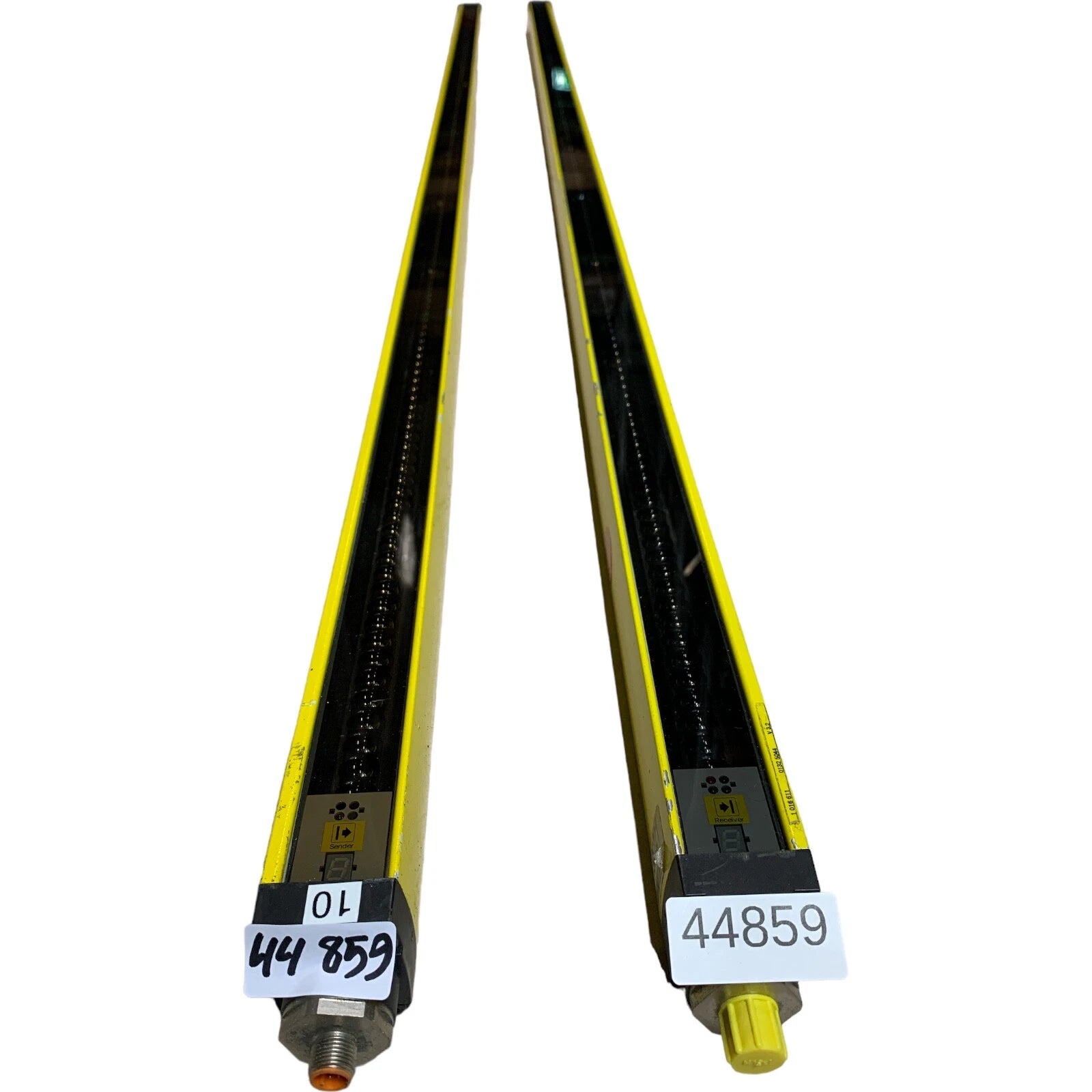

C20E-165303A12 | SICK C2000 Standard Safety Light Curtain Set 1650 mm
- Regular price
- $4,324.00
- Sale price
- $4,324.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C20E-165303A12
Description
The SICK C20E-165303A12 is a safety light curtain set designed to provide non-contact personnel protection in industrial machine safeguarding applications. It features a 30 mm resolution and a 1650 mm protective field height with fast response performance. This set is commonly used to secure access to hazardous machine areas while meeting established functional safety standards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C20E-165303A12 |
| Subcategory | Safety Light Curtains |
| Series | C2000 Standard |
| Resolution | 30 mm |
| Protective Field Height | 1650 mm |
| Response Time | ≤ 34 ms |
| Synchronization | Optical synchronization |
| Safety Type | Type 2 (IEC 61496-1) |
| Safety Integrity Level | SIL 1 (IEC 61508) |
| SIL Claim Limit | SILCL 1 (EN 62061) |
| Performance Level | PL c (EN ISO 13849) |
| Safety Category | Category 2 (EN ISO 13849) |
| PFHD | 2.2 × 10⁻⁸ |
| Mission Time | 20 years |
| Beam Coding | Uncoded |
| External Device Monitoring | Activated |
| Configuration Method | Hard wired |
| System Connection | M12 male connector, 8-pin |
| Maximum Cable Length | ≤ 15 m |
| Protection Class | III (EN 50178) |
| Output Type | 2 PNP OSSDs, short-circuit protected |
| Max Output Current | ≤ 500 mA per OSSD |
| Housing Cross-Section | 48 × 40 mm |
| Enclosure Rating | IP65 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | −25 to +70 °C |
| Air Humidity | 15% to 95%, non-condensing |
| Vibration Resistance | 5 g, 10–55 Hz |
| Shock Resistance | 10 g, 16 ms |
| Weight | Approx. 1.3 kg |
Information About C20E-165303A12
The C20E-165303A12 is part of SICK’s C2000 Standard safety light curtain series, engineered for dependable operation in medium-risk industrial safety applications. It uses optical synchronization and a hard-wired configuration to ensure stable and predictable safety performance. The system supports external device monitoring (EDM) and uncoded beam operation, enabling integration into standard safety architectures. Its robust mechanical design and compliance with IEC and EN safety standards make it suitable for continuous use in industrial environments.
Key Features:
- 30 mm Resolution: Provides reliable detection for hand and body protection applications.
- 1650 mm Protective Field Height: Covers large vertical access openings on machinery.
- Fast Response Time: ≤ 34 ms response supports rapid safety reaction.
- Type 2 Safety Classification: Compliant with IEC 61496-1 for machine safeguarding.
- SIL 1 / SILCL 1 / PL c Ratings: Suitable for Category 2 safety architectures.
- External Device Monitoring (EDM): Activated for enhanced safety system supervision.
- Optical Synchronization: Enables stable operation without electrical sync wiring.
The C20E-165303A12 delivers the reliability and precision required for non-contact machine safeguarding in industrial automation systems.
