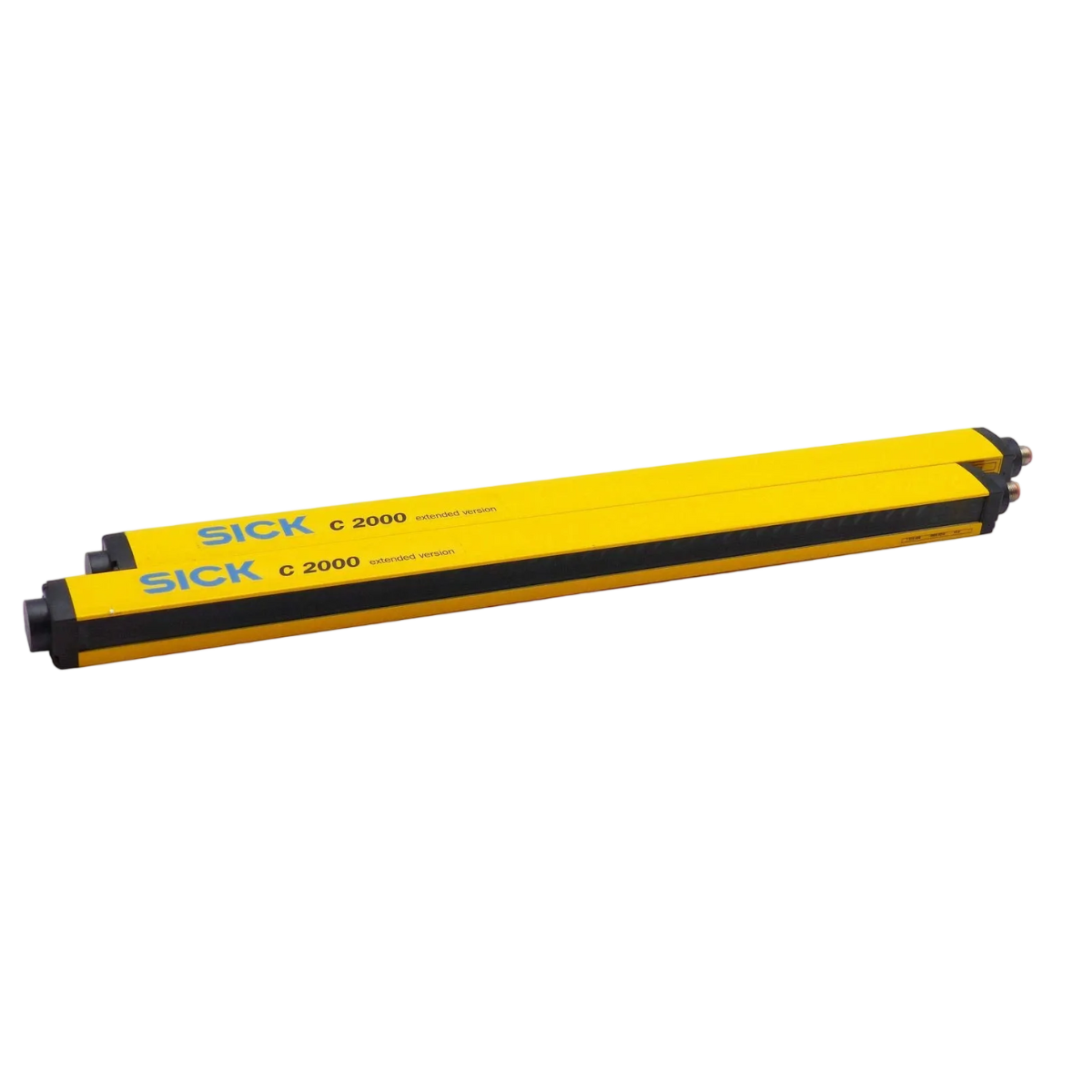

C20S-045103A11 | SICK Type 2 Safety Light Curtain Sender 450 MM Protective Height
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C20S-045103A11
Description
The SICK C20S-045103A11 is a Type 2 safety light curtain sender designed for short-range machine guarding and access protection. It provides a 30 mm resolution with a 450 mm protective height, supporting reliable safety monitoring in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Safety Light Curtains |
| Part Number | C20S-045103A11 |
| Subcategory | Senders |
| System Component | Sender (Emitter) |
| Safety Type | Type 2 (IEC 61496-1) |
| Resolution | 30 mm |
| Protective Field Height | 450 mm |
| Scanning Range | 0 m to 6 m |
| Synchronization | Optical synchronisation |
| Safety Integrity Level | SIL 1 (IEC 61508) |
| Safety Category | Category 2 (EN ISO 13849) |
| Performance Level | PL c (EN ISO 13849) |
| Test Rate (Internal) | 13 /s |
| Maximum Demand Rate | ≤ 8 min⁻¹ |
| PFHD | 2.2 × 10⁻⁸ |
| Housing Cross-Section | 34 mm × 29 mm |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –25 °C to +70 °C |
| Weight | 1.25 lbs |
Information About C20S-045103A11
The C20S-045103A11 is part of the SICK C20 safety light curtain series, developed for basic machine safeguarding tasks requiring Type 2 protection. This sender unit operates with optical synchronisation and is designed to be paired with a compatible C20 series receiver to form a complete safety light curtain system. Its short-range scanning capability supports use on smaller machines, access points, and automated equipment with limited safety distances. The compact housing profile allows straightforward installation in space-restricted industrial layouts while maintaining stable optical alignment.
Key Features
- Type 2 Safety Classification: Designed in accordance with IEC 61496-1 for basic personnel protection in controlled industrial applications.
- Sender Unit Configuration: Functions as the emitting component when paired with a compatible C20 series receiver.
- 30 MM Resolution: Supports detection of hands and objects entering the protected field.
- 450 MM Protective Height: Provides vertical coverage suitable for guarding machine openings and access zones.
- Short-Range Scanning Capability: Operates reliably within a scanning range of up to 6 meters for compact safety installations.
- Optical Synchronisation: Ensures stable communication between sender and receiver without additional wiring.
- Slim Housing Cross-Section: Facilitates installation in tight spaces and on compact machinery frames.
The C20S-045103A11 delivers the reliability and precision required for basic machine safeguarding and personnel protection in industrial environments.
