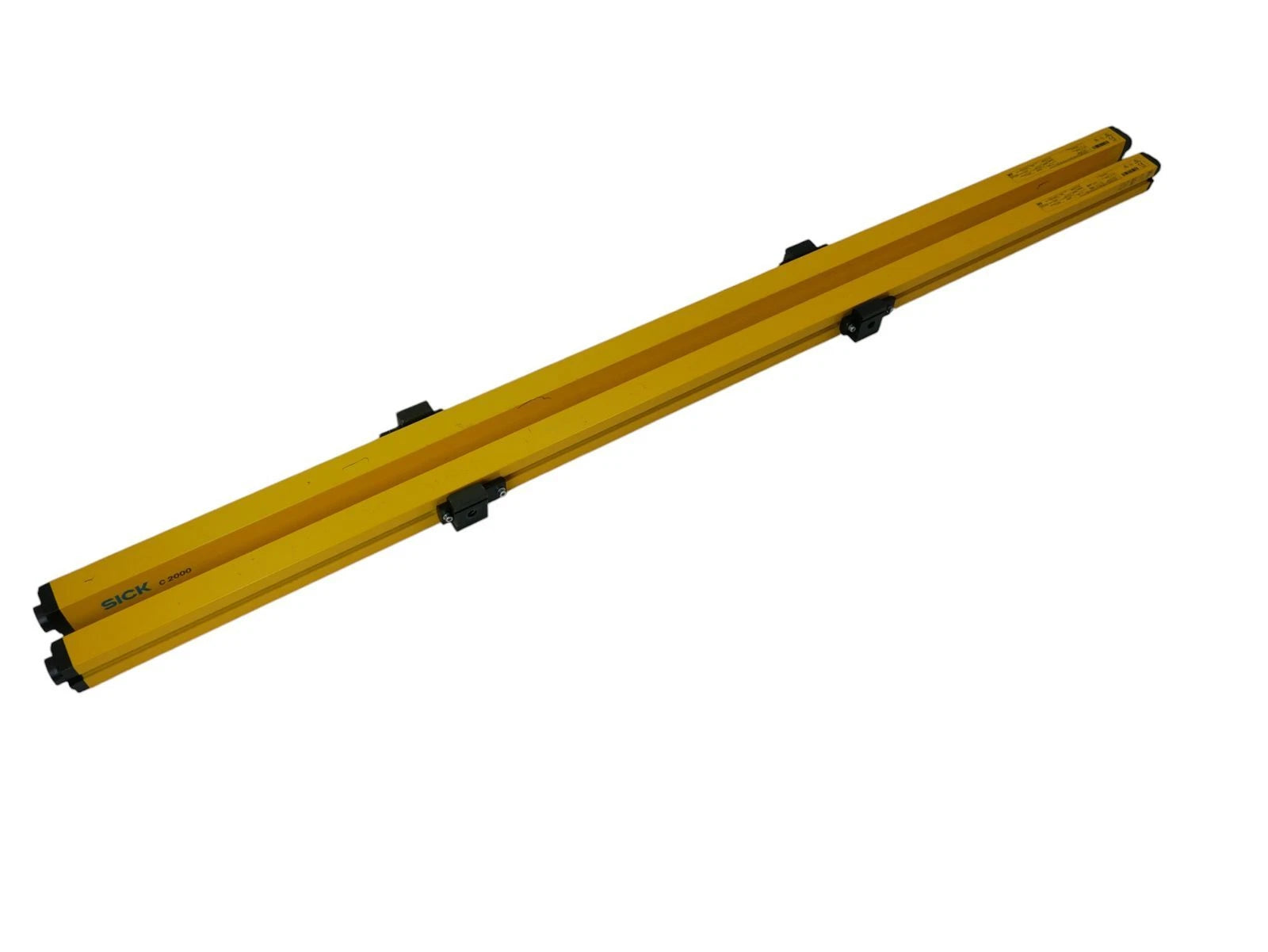

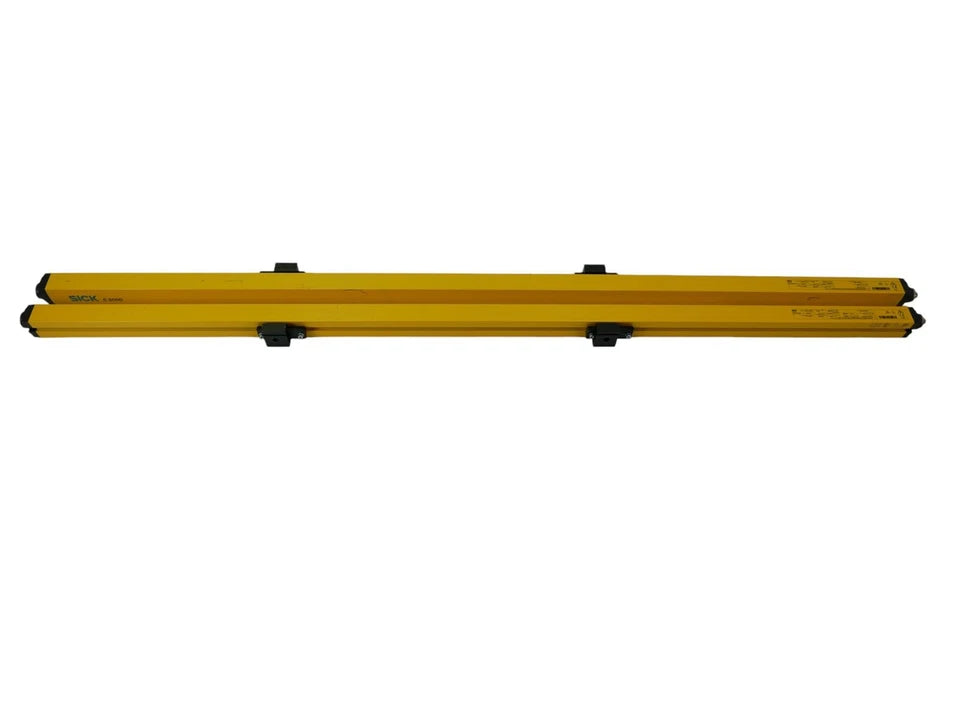

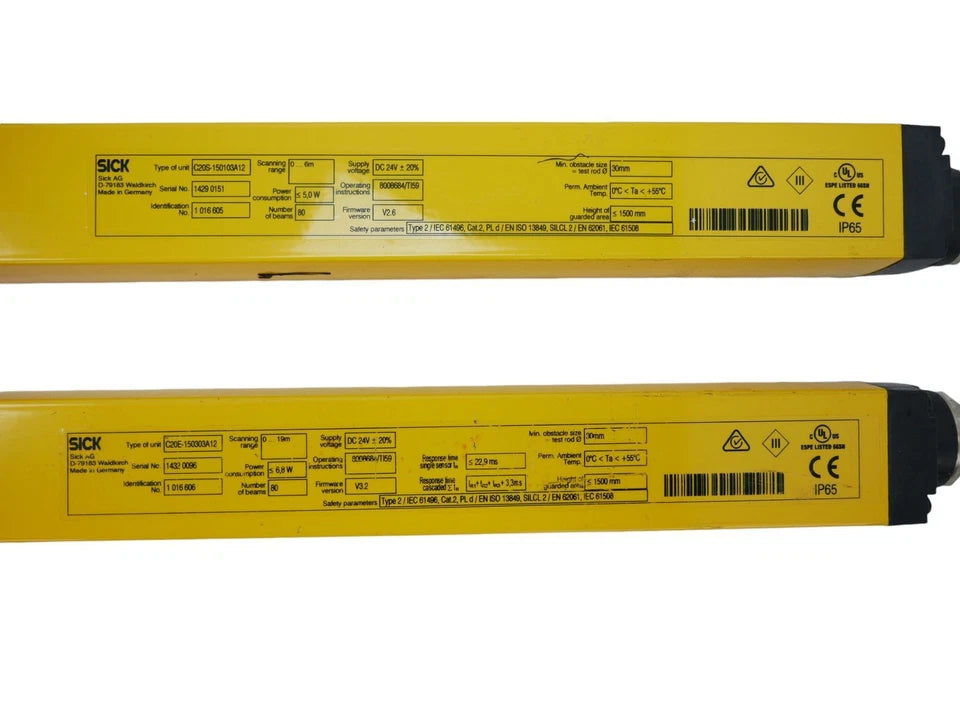

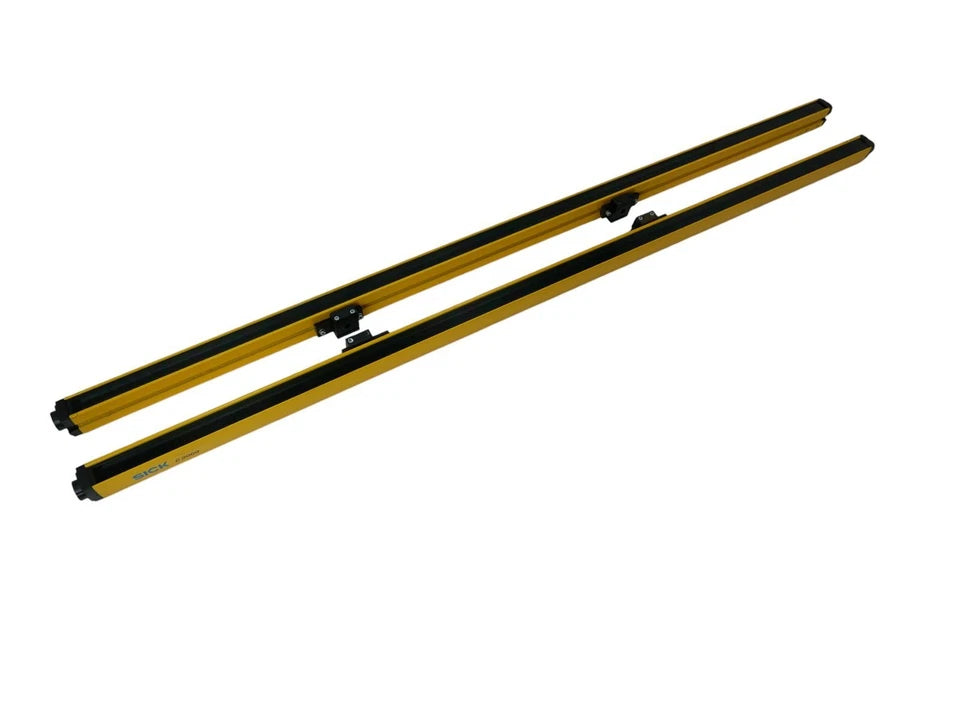

C20S-150103A12 | SICK C2000 Standard Safety Light Curtain 1500 mm
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C20S-150103A12
Description
The SICK C20S-150103A12 is a Type 2 safety light curtain designed to provide non-contact personnel protection for hazardous machine areas. It features a 30 mm resolution with a 1500 mm protective field height and supports reliable detection across a defined scanning range. This safety light curtain is commonly used in industrial machinery and automated production environments requiring compliant access protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C20S-150103A12 |
| Subcategory | Safety Light Curtains |
| Series | C2000 Standard |
| Resolution | 30 mm |
| Protective Field Height | 1500 mm |
| Scanning Range | 0 to 6 m |
| Synchronization | Optical synchronization |
| Safety Type | Type 2 (IEC 61496-1) |
| Safety Integrity Level | SIL 1 (IEC 61508) |
| Performance Level | PL c (EN ISO 13849) |
| Category | Category 2 (EN ISO 13849) |
| PFHD | 2.2 × 10⁻⁸ |
| Mission Time | 20 years |
| Output State on Fault | At least one OSSD OFF |
| Configuration Method | Hard wired |
| Beam Coding | Uncoded |
| System Connection | M12 male connector, 8-pin |
| Maximum Cable Length | ≤ 15 m |
| Protection Class | III (EN 50178) |
| Housing Cross-Section | 48 × 40 mm |
| Enclosure Rating | IP65 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | −25 to +70 °C |
| Air Humidity | 15% to 95%, non-condensing |
| Vibration Resistance | 5 g, 10–55 Hz |
| Shock Resistance | 10 g, 16 ms |
| Wavelength | 950 nm |
| Weight | Approx. 1.1 kg |
Information About C20S-150103A12
The C20S-150103A12 is part of SICK’s C2000 Standard safety light curtain series, engineered for dependable machine safeguarding in medium-risk applications. It uses optical synchronization and hard-wired configuration to ensure stable and predictable safety performance. The device meets international safety standards including IEC 61496-1 Type 2 and achieves SIL 1 and PL c ratings for functional safety. Its robust housing, status indicators, and standardized M12 connection support straightforward integration into industrial control systems.
Key Features:
- 30 mm Resolution: Provides reliable detection for hand and body protection applications.
- 1500 mm Protective Field Height: Covers large vertical access openings on machinery.
- Scanning Range up to 6 m: Supports flexible installation distances.
- Type 2 Safety Classification: Complies with IEC 61496-1 for machine safeguarding.
- SIL 1 / PL c Safety Ratings: Suitable for Category 2 safety architectures.
- Optical Synchronization: Ensures stable operation without electrical synchronization wiring.
- Integrated Status Display: Includes 7-segment display and LEDs for diagnostics.
The C20S-150103A12 delivers the reliability and precision required for non-contact machine safeguarding in industrial automation systems.
