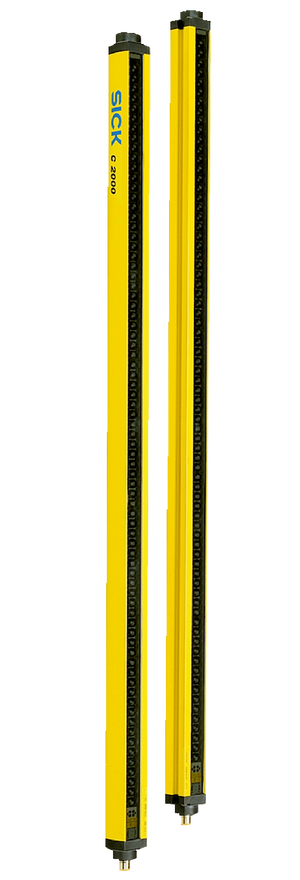

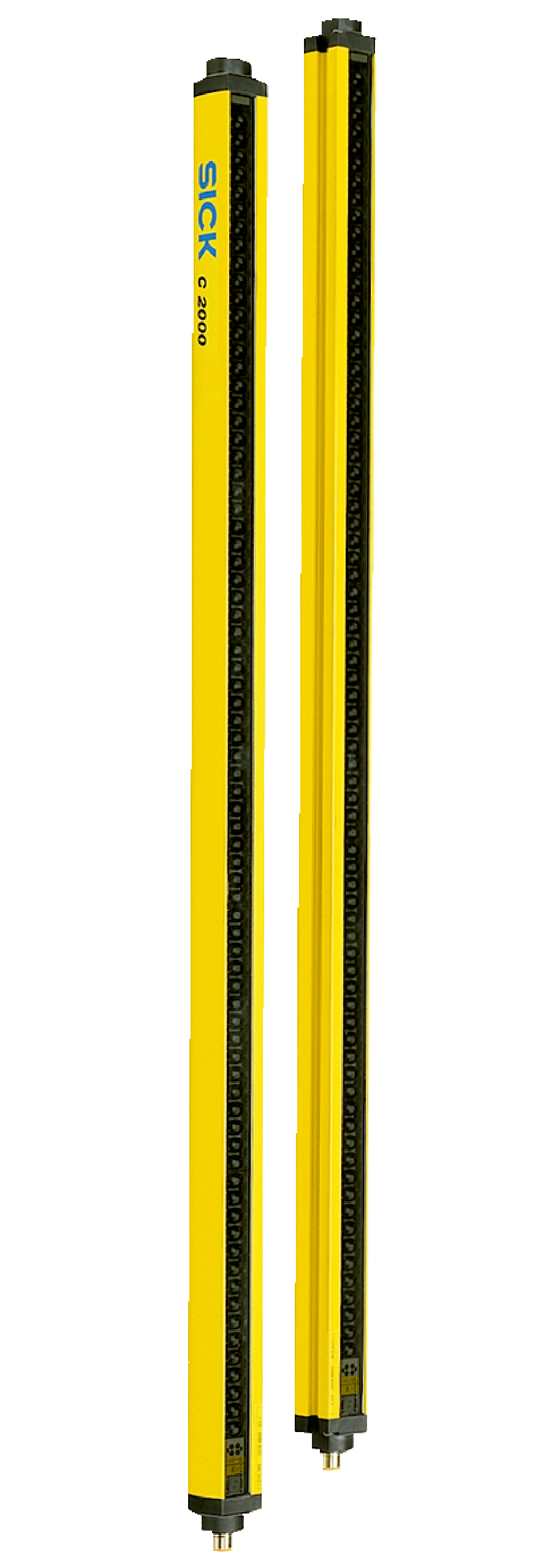

C20S-180104A12 | SICK C2000 Standard Safety Light Curtain 1800 mm
- Regular price
- $4,177.00
- Sale price
- $4,177.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C20S-180104A12
Description
The SICK C20S-180104A12 is a Type 2 safety light curtain designed to provide non-contact protection for hazardous machine areas in industrial environments. It features a 40 mm resolution with a 1800 mm protective field height to ensure reliable detection across wide access points. This safety light curtain is commonly used in machinery safeguarding and automated production systems requiring compliant personnel protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C20S-180104A12 |
| Subcategory | Safety Light Curtains |
| Series | C2000 Standard |
| Resolution | 40 mm |
| Protective Field Height | 1800 mm |
| Scanning Range | 0 to 6 m |
| Synchronization | Optical synchronization |
| Safety Type | Type 2 (IEC 61496-1) |
| Safety Integrity Level | SIL 1 (IEC 61508) |
| Performance Level | PL c (EN ISO 13849) |
| Safety Category | Category 2 (EN ISO 13849) |
| PFHD | 2.2 × 10⁻⁸ |
| Mission Time | 20 years |
| Beam Coding | Uncoded |
| Output State on Fault | At least one OSSD OFF |
| Configuration Method | Hard wired |
| System Connection | M12 male connector, 8-pin |
| Maximum Cable Length | ≤ 15 m |
| Protection Class | III (EN 50178) |
| Housing Cross-Section | 48 × 40 mm |
| Enclosure Rating | IP65 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | −25 to +70 °C |
| Air Humidity | 15% to 95%, non-condensing |
| Vibration Resistance | 5 g, 10–55 Hz |
| Shock Resistance | 10 g, 16 ms |
| Wavelength | 950 nm |
| Weight | Approx. 1.2 kg |
Information About C20S-180104A12
The C20S-180104A12 is part of SICK’s C2000 Standard safety light curtain series, engineered for dependable performance in medium-risk machine safety applications. It uses optical synchronization and a hard-wired configuration method to maintain stable and predictable operation. The device complies with IEC and EN safety standards, achieving SIL 1 and PL c ratings for functional safety. Its robust mechanical design, clear status indicators, and standardized M12 connectivity support reliable integration into industrial control systems.
Key Features:
- 40 mm Resolution: Suitable for reliable hand and body detection in machine guarding applications.
- 1800 mm Protective Field Height: Covers large vertical access openings on industrial machinery.
- Scanning Range up to 6 m: Allows flexible installation distances in safety layouts.
- Type 2 Safety Classification: Complies with IEC 61496-1 for machine safeguarding.
- SIL 1 / PL c Compliance: Designed for Category 2 safety architectures.
- Optical Synchronization: Enables stable operation without electrical sync wiring.
- Integrated Status Indication: Features 7-segment display and LEDs for diagnostics and monitoring.
The C20S-180104A12 delivers the reliability and precision required for non-contact machine safeguarding in industrial automation systems.
