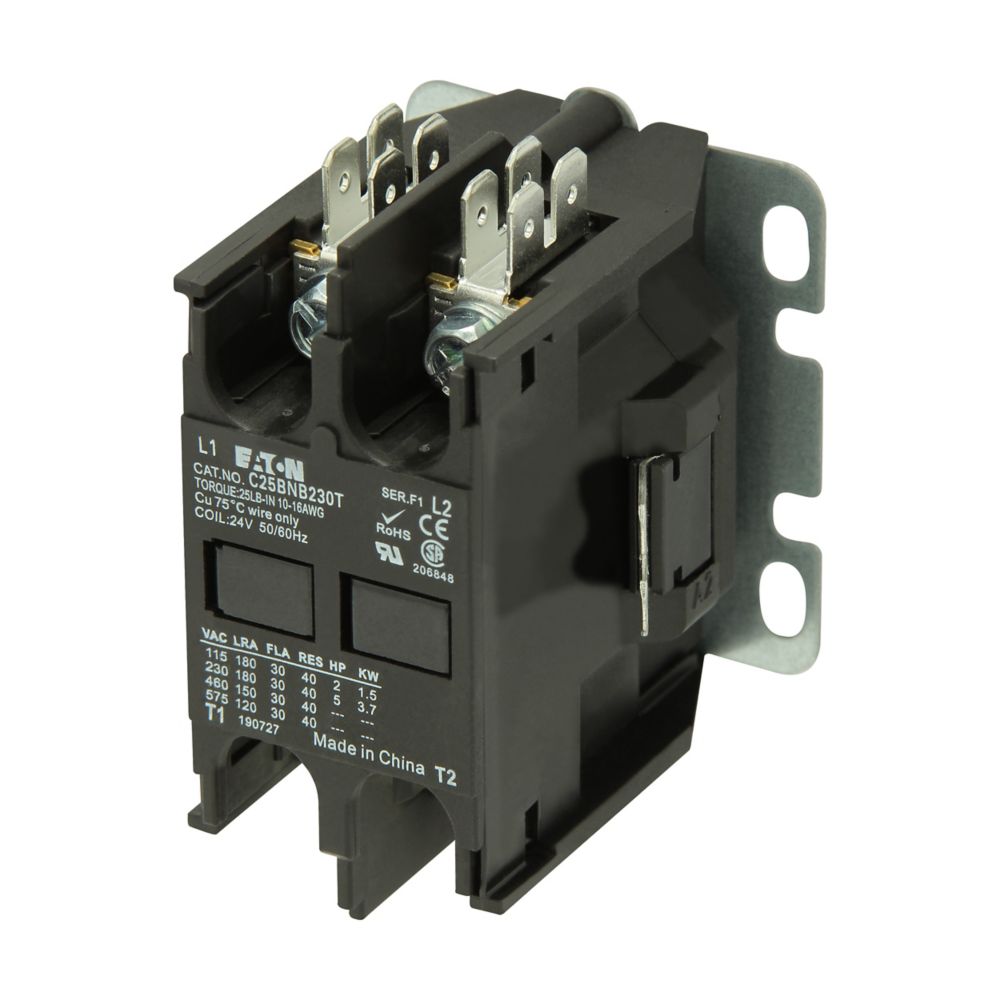

C25BNB230T | Eaton Definite Purpose Contactor
- Regular price
- $54.00
- Sale price
- $54.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C25BNB230T
Description
The C25BNB230T, produced by Eaton, is a definite purpose contactor designed for specific applications. It features a quick configuration with a current rating of 30 amperes (A) and operates at 277 volts alternating current (Vac) and 60 Hertz (Hz) frequency. The contactor is an open type with a metal mounting plate, providing durability and stability during operation. Despite its compact size, it offers a two-pole configuration with power terminals utilizing both binding head screw and quick connect mechanisms.
Technical Specifications
|
Product Name |
Eaton definite purpose contactor |
|
Catalog Number |
C25BNB230T |
|
UPC |
786685116068 |
|
Product Length/Depth |
2.32 in |
|
Product Height |
3.19 in |
|
Product Width |
1.97 in |
|
Product Weight |
0.7 lb |
|
Amperage Rating |
30A |
|
Number of Poles |
Two-pole |
|
Type |
Non-reversing |
|
Coil |
24 Vac, 50/60 Hz |
|
Enclosure |
Open with metal mounting plate |
|
Frame Size |
Compact, two-pole |
|
Inductive Full Load |
30 A |
|
Model |
Contactor |
|
Resistive Load |
40 A |
|
Terminals |
Binding head screw and quick connect terminals (side-by-side) |
|
Connection |
Quick |
Information About C25BNB230T
The C25BNB230T, manufactured by Eaton, is a definite purpose contactor designed for specific applications. Classified as a quick contactor, it features a current rating of 30 amperes (A) and operates at 277 volts alternating current (Vac) with a frequency of 60 Hertz (Hz). The contactor is constructed as an open unit with a metal mounting plate, ensuring durability and stability during operation. Despite its compact design, it incorporates a two-pole configuration, providing essential functionality for electrical control purposes.
This contactor is specifically engineered for non-reversing applications, ensuring its suitability for diverse electrical systems where reversing functionality is not required. The power terminals of the C25BNB230T utilize both binding head screw and quick connect mechanisms, offering versatility and convenience during installation. This configuration allows for efficient and reliable electrical connections, accommodating various wiring preferences and requirements.
In terms of its electrical performance, the C25BNB230T exhibits an inductive full load rating of 30 A and a resistive load rating of 40 A. These ratings indicate the contactor's capability to handle different types of electrical loads, ensuring compatibility with a wide range of applications.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
