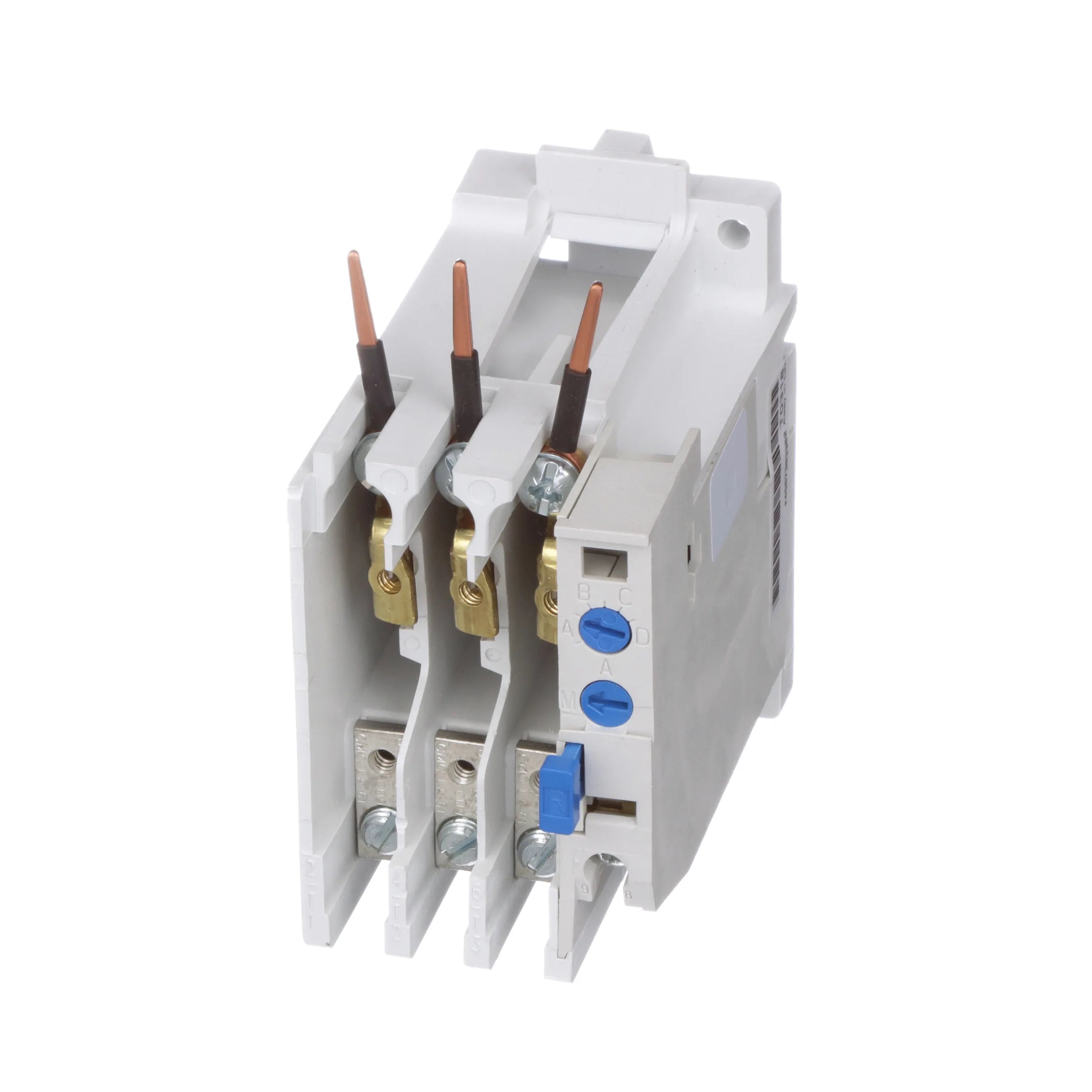

C306DN3B | Eaton Cutler-Hammer Freedom Series Thermal Overload Relay 32A
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C306DN3B
Description
The Eaton Cutler-Hammer C306DN3B is a thermal overload relay designed to protect electrical circuits and motors from sustained overload conditions. Rated at 32 amps, this relay provides reliable thermal protection by responding to excessive current levels over time. The C306DN3B is commonly used in industrial motor control and power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton Cutler-Hammer |
| Category | Overload Relay |
| Part Number | C306DN3B |
| Subcategory | Thermal Overload Relay |
| Series / Family | Freedom Series |
| Relay Type | Thermal |
| Model Type | C306 |
| Rated Current | 32 A |
| Minimum Amperage | 32 A |
| Maximum Amperage | 32 A |
| Protection Function | Overload Detection |
| Application | Motor and Circuit Protection |
Information About C306DN3B
The C306DN3B is part of Eaton Cutler-Hammer’s Freedom Series and is engineered for dependable overload protection in industrial electrical systems. It uses thermal sensing elements that react to prolonged overcurrent conditions, helping prevent damage to motors, conductors, and connected equipment. The relay is designed for integration into motor starters, control panels, and switchgear assemblies. Its construction supports stable performance and consistent tripping behavior in demanding operating environments.
Key Features:
- Freedom Series Construction: Designed for compatibility with Eaton motor control and protection systems used in industrial environments.
- Thermal Overload Protection: Uses heat-responsive elements to detect sustained overcurrent conditions and initiate circuit interruption.
- Fixed 32 Amp Rating: Calibrated for precise operation at a defined current level, supporting predictable protection behavior.
- C306 Relay Design: Supports integration with compatible Eaton contactors and motor starters.
- Industrial-Grade Build: Engineered to withstand mechanical stress and thermal cycling in continuous-duty applications.
- Motor and Equipment Protection: Helps reduce the risk of overheating, insulation damage, and premature equipment failure.
The C306DN3B delivers the reliability and precision required for effective overload protection in Eaton Cutler-Hammer Freedom Series motor control and industrial electrical systems.
