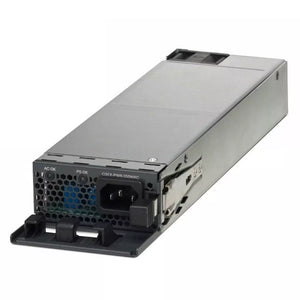

C3KX-PWR-1100WAC | Cisco AC Power Supply
- Regular price
- $337.00
- Sale price
- $337.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C3KX-PWR-1100WAC
Description
The Cisco C3KX-PWR-1100WAC is a 1100W AC power supply designed for Cisco Catalyst 3750-X and 3560-X Series switches. It provides redundant and hot-swappable power, ensuring high availability and reliability in enterprise network environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | Power Supply Systems |
| Part Number | C3KX-PWR-1100WAC |
| Subcategory |
Power Supplies
|
| Input Voltage | AC 115-240 V |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | Power IEC 60320 C16 |
| Power Capacity | 1100 Watt |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% |
| Width | 3.3 in |
| Depth | 10.2 in |
| Height | 1.4 in |
| Weight | 2.04 kgs |
Information About C3KX-PWR-1100WAC
The Cisco C3KX-PWR-1100WAC is an 1100-watt AC power supply module designed for the Cisco Catalyst 3750-X and 3560-X Series switches, providing reliable power for high-performance networking environments.
Key Features:
-
High Power Output: Delivers up to 1100 watts, supporting switches with high Power over Ethernet Plus (PoE+) requirements.
-
Redundancy and Hot-Swappability: Supports redundant configurations and can be replaced without shutting down the system, ensuring continuous operation.
-
Input Voltage Range: Operates within an input voltage range of 115 to 240 VAC (autoranging) at 50 to 60 Hz, accommodating various power environments.
-
Output Ratings: Provides an output voltage of -56 V at 19.64 A, suitable for demanding network applications.
-
Heat Dissipation: Generates approximately 3751 BTUs per hour, necessitating appropriate ventilation.
-
Operating Temperature: Supports a range from 23°F to 113°F (-5°C to 45°C).
-
Storage Temperature: Can be stored in temperatures ranging from -40°F to 158°F (-40°C to 70°C).
-
Relative Humidity: Operates effectively in non-condensing humidity levels between 10% and 95%.
-
Altitude: Designed to function at altitudes up to 10,000 feet (3049 meters).
This power supply module is essential for organizations utilizing Cisco Catalyst 3750-X and 3560-X Series switches, especially those requiring high PoE+ power budgets for devices like IP phones, wireless access points, and surveillance cameras. Its robust design ensures network reliability and uptime in enterprise settings.
