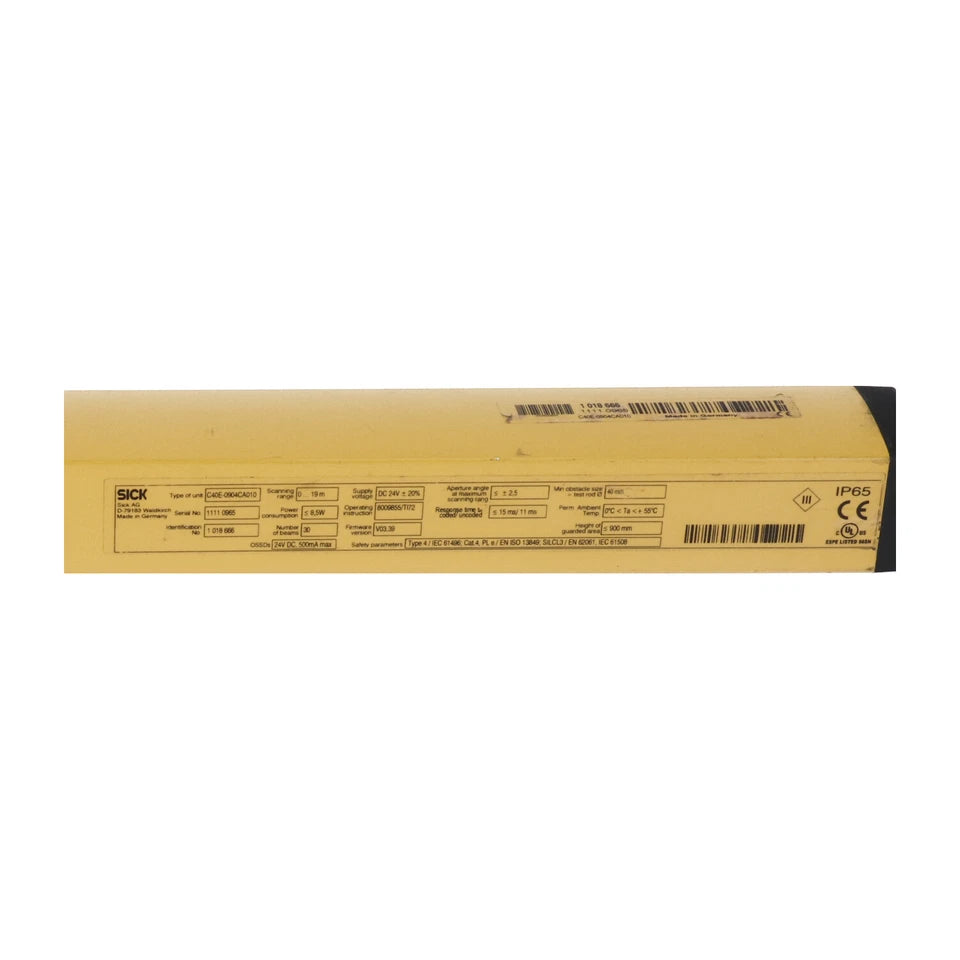

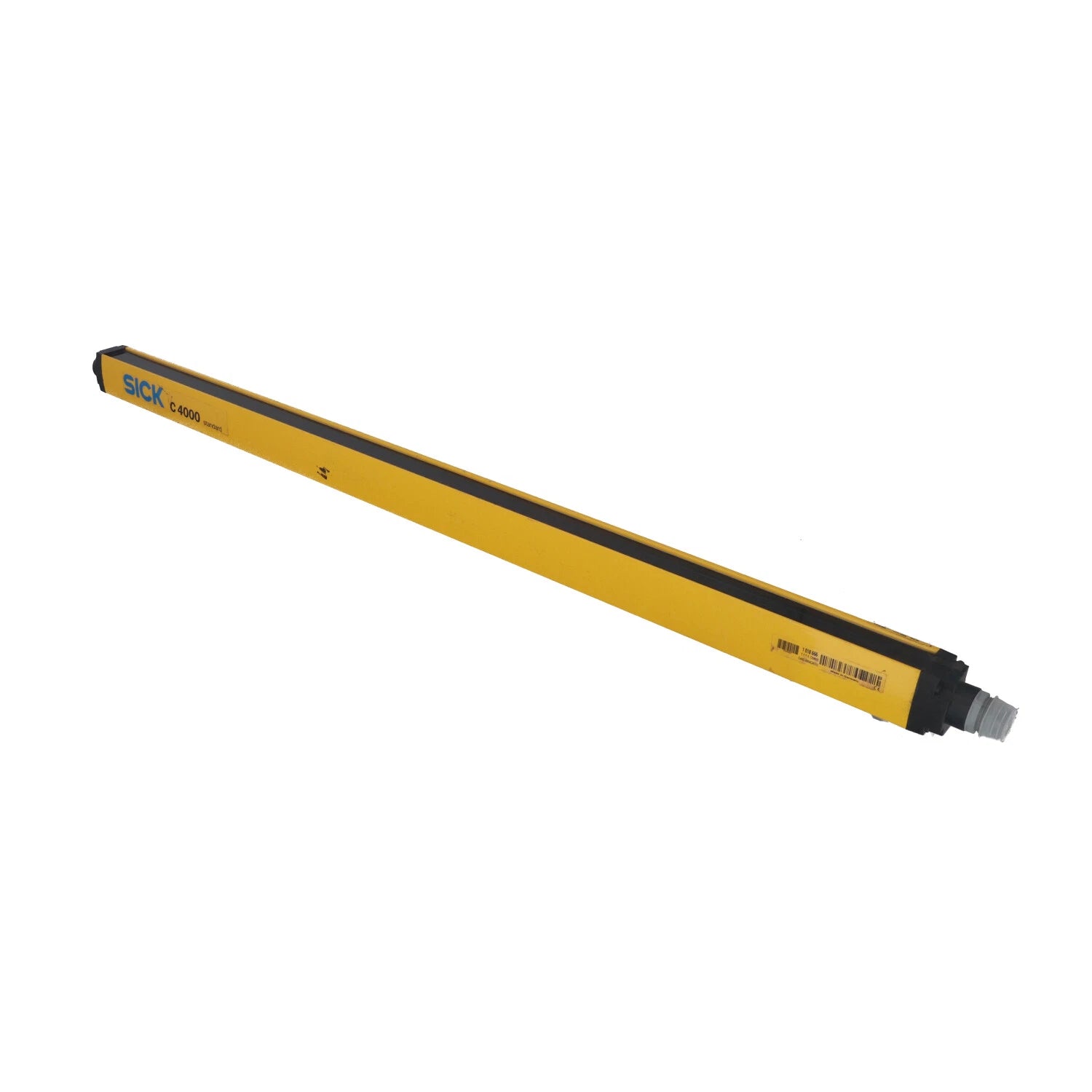

C40E-0904CA010 | SICK C4000 Type 4 Safety Light Curtain Receiver 900 Mm 40 Mm Resolution
- Regular price
- $3,809.00
- Sale price
- $3,809.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C40E-0904CA010
Description
The SICK C40E-0904CA010 is a safety light curtain receiver from the C4000 series designed for reliable personnel protection in industrial environments. It provides fast response safety monitoring with a 40 mm resolution and a protective field height of 900 mm.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Safety Sensors |
| Part Number | C40E-0904CA010 |
| Subcategory | Safety Light Curtains |
| System Part | Receiver |
| Series | C4000 |
| Safety Type | Type 4 (IEC 61496-1) |
| Resolution | 40 mm |
| Protective Field Height | 900 mm |
| Scanning Range | 21 m |
| Response Time | 11 ms |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Safety Category | Category 4 (EN ISO 13849) |
| Performance Level | PL e (EN ISO 13849) |
| Supply Voltage | 24 V DC (19.2…28.8 V) |
| Protection Class | Class III (IEC 61140) |
| Residual Ripple | ≤ 10 % |
| System Connection | Hirschmann male connector M26, 12-pin |
| Configuration Connection | Female connector M8, 4-pin |
| Cable Connection Direction | Straight |
| Conductor Cross Section | 0.75 mm² |
| Permitted Cable Length | Up to 50 m |
| Housing Material | Aluminum extruded profile |
| Housing Cross-Section | 48 mm × 40 mm |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | 0 °C … +55 °C |
| Storage Temperature | –25 °C … +70 °C |
| Weight | 1,990 g |
Information About C40E-0904CA010
The C40E-0904CA010 is part of SICK’s C4000 safety light curtain family developed for high-risk machine safeguarding applications. This receiver unit works with a compatible C4000 emitter to form a certified Type 4 protective system capable of achieving SIL 3 and PL e safety levels. Its 40 mm resolution supports reliable hand and body detection while maintaining fast response times for effective hazard mitigation. The aluminum housing and IP65 enclosure rating ensure durability and stable operation in normal industrial environments.
Key Features
- Type 4 Safety Certification: Complies with IEC 61496-1 and supports SIL 3 and PL e safety levels for high-risk machine protection.
- 40 Mm Resolution: Enables dependable detection of hand and body intrusion while allowing practical safety distances.
- 900 Mm Protective Field Height: Provides vertical coverage suitable for guarding machine openings and access points.
- Fast 11 Ms Response Time: Supports rapid machine stop initiation when the protective field is interrupted.
- Long Scanning Range: Operates reliably at distances up to 21 m between emitter and receiver.
- Robust Aluminum Housing: Uses an extruded aluminum profile for mechanical stability and long service life.
- Flexible Industrial Connectivity: Supports Hirschmann M26 and M8 connectors for secure system and configuration connections.
The C40E-0904CA010 delivers the reliability and precision required for advanced personnel protection in industrial machine safety systems.
