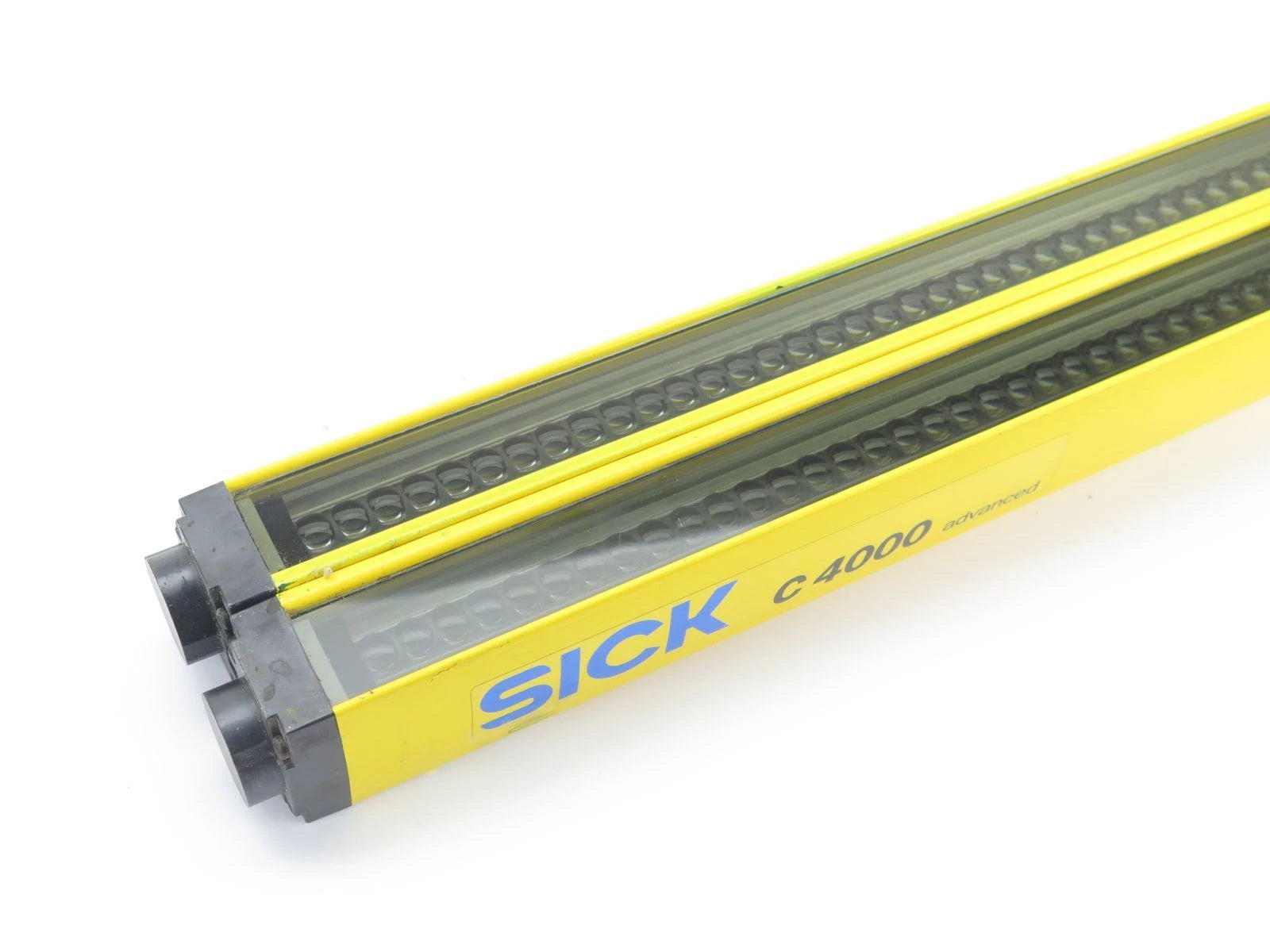

C40E-1004CA010 | SICK C4000 Safety Light Curtain Receiver 40 Mm Resolution 1050 Mm Height
- Regular price
- $2,549.00
- Sale price
- $2,549.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C40E-1004CA010
Description
The SICK C40E-1004CA010 is a safety light curtain receiver from the C4000 series designed for personnel protection in normal industrial environments. It provides reliable Type 4 safety monitoring with a 40 mm resolution, fast 11 ms response time, and optical synchronization.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Safety Sensors |
| Part Number | C40E-1004CA010 |
| Subcategory | Safety Light Curtains |
| System Part | Receiver |
| Series | C4000 |
| Resolution | 40 mm |
| Scanning Range | 21 m |
| Protective Field Height | 1,050 mm |
| Response Time | 11 ms |
| Synchronization | Optical synchronisation |
| Application Environment | Normal industrial environment |
| System Connection | Hirschmann male connector M26, 12-pin |
| Configuration Connection | Female connector M8, 4-pin |
| Cable Connection Direction | Straight |
| Conductor Cross Section | 0.75 mm² |
| Permitted Cable Length | Up to 50 m |
| Configuration Method | PC with CDS software |
| Display Elements | 7-segment display |
| Housing Material | Aluminum extruded profile |
| Housing Cross-Section | 48 mm × 40 mm |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | 0 °C … +55 °C |
| Storage Temperature | –25 °C … +70 °C |
| Weight | 2,280 g |
Information About C40E-1004CA010
The C40E-1004CA010 is part of SICK’s C4000 safety light curtain family developed for advanced machine safeguarding applications. This receiver unit operates together with a compatible C4000 emitter to form a certified protective system capable of monitoring hazardous access zones. With a 40 mm resolution, it supports reliable hand and body detection while maintaining fast response times for effective risk reduction. The integrated 7-segment display and PC-based configuration via CDS software simplify setup, diagnostics, and ongoing maintenance.
Key Features
- 40 Mm Resolution: Enables dependable detection of hand and body intrusion while supporting practical safety distances.
- 1050 Mm Protective Field Height: Provides extended vertical coverage for guarding taller machine openings and access points.
- Fast 11 Ms Response Time: Supports rapid machine stop initiation when the protective field is interrupted.
- Optical Synchronisation: Eliminates the need for hardwired synchronization, simplifying installation and system layout.
- Long Scanning Range: Operates reliably at distances up to 21 m between emitter and receiver.
- Advanced Configuration Options: Supports PC-based setup using CDS software and provides a 7-segment display for status indication.
- Robust Aluminum Housing: Extruded aluminum profile and IP65 rating ensure durability in industrial environments.
The C40E-1004CA010 delivers the reliability and precision required for effective personnel protection in industrial machine safety systems.
