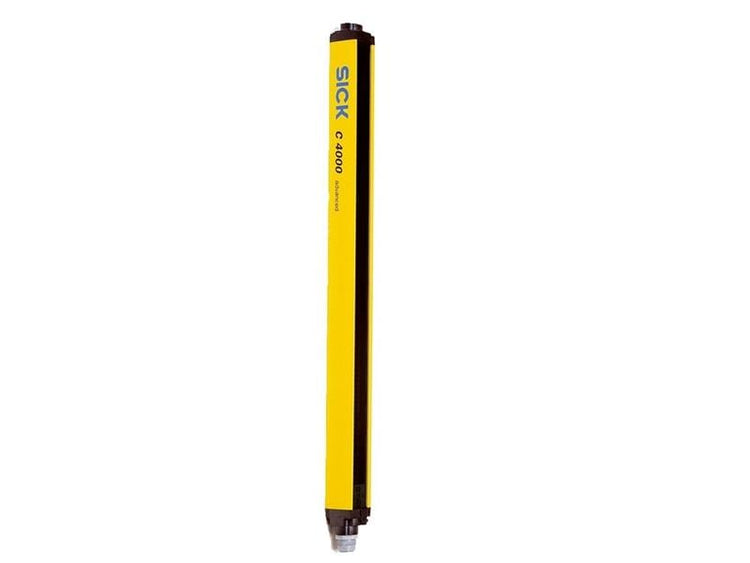

C40E-1203DA010 | SICK C4000 Safety Light Curtain Receiver 1200 mm Type 4
- Regular price
- $5,249.00
- Sale price
- $5,249.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C40E-1203DA010
Description
The SICK C40E-1203DA010 is a safety light curtain receiver designed for reliable area protection in normal industrial environments. It provides Type 4 safety performance with a tall protective field to support advanced machine guarding requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C40E-1203DA010 |
| Subcategory | Safety Light Curtain Receivers |
| Series | C4000 |
| System Part | Receiver |
| Application | Normal Industrial Environment |
| Resolution | 30 mm |
| Minimum Object Size | 30 mm |
| Protective Field Height | 1200 mm |
| Number of Beams | 60 |
| Scanning Range | Up to 21 m |
| Response Time | 13 ms |
| Synchronization | Optical Synchronisation |
| Safety Type | Type 4 (IEC 61496-1) |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Protection Class | Class III (IEC 61140) |
| Supply Voltage | 24 VDC (19.2–28.8 VDC) |
| Residual Ripple | ≤ 10% |
| Output Signal | OSSD |
| Output Type | 2 × PNP Semiconductors, Short-Circuit Protected |
| OSSD Current Capacity | ≤ 500 mA per Channel |
| Housing Material | Aluminum Extruded Profile |
| Housing Cross-Section | 48 mm × 40 mm |
| Weight | 2,560 g |
Information About C40E-1203DA010
The C40E-1203DA010 is part of SICK’s C4000 safety light curtain family, developed for robust machine and area protection in industrial automation. This receiver operates as a matched component within a Type 4 safety system, ensuring reliable beam monitoring and fault detection. It meets stringent international safety standards, including SIL 3 and Category 4, supporting use in safety-critical applications. Its aluminum extruded housing provides durability and consistent performance in demanding production environments.
Key Features
- Type 4 Safety Performance: Designed in accordance with IEC 61496-1 to meet the highest machine safety requirements.
- PL e / SIL 3 Safety Architecture: Supports advanced functional safety systems for high-risk industrial applications.
- Extended Protective Height: 1200 mm sensing field with 60 beams enables effective area protection.
- 30 mm Detection Resolution: Ensures reliable detection of objects with a minimum size of 30 mm.
- Fast Safety Response: 13 ms response time supports rapid machine stop activation when hazards are detected.
- Optical Synchronisation: Provides stable and accurate operation with the corresponding transmitter.
- Rugged Industrial Housing: Extruded aluminum profile ensures long-term reliability in industrial environments.
The C40E-1203DA010 delivers the reliability and precision required for high-level industrial safety and machine protection systems.
