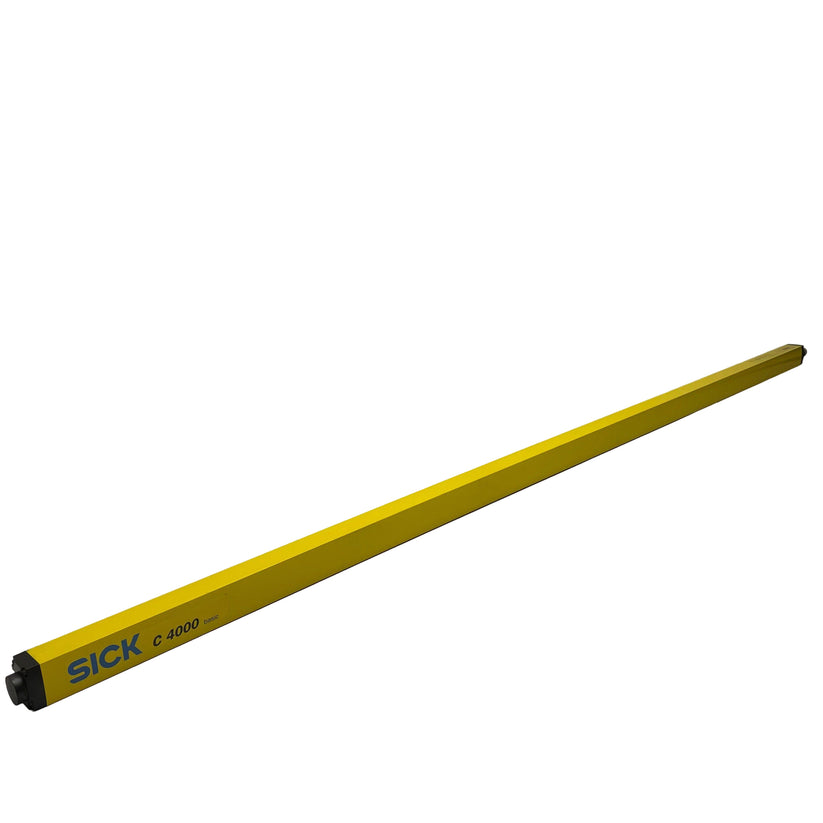

C40E-1803AH030 | SICK C4000 Safety Light Curtain Receiver 1800 mm Type 4
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C40E-1803AH030
Description
The SICK C40E-1803AH030 is a safety light curtain receiver designed for reliable area protection in industrial machine safety applications. It provides a tall protective field with Type 4 safety performance to support advanced operator protection requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C40E-1803AH030 |
| Subcategory | Safety Light Curtain Receivers |
| Series | C4000 |
| System Part | Receiver |
| Protective Field Height | 1800 mm |
| Resolution | 30 mm |
| Scanning Range | Up to 6 m |
| Synchronization | Optical |
| Safety Type | Type 4 (IEC 61496-1) |
| Performance Level | PL e (EN ISO 13849) |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Safety Category | Category 4 (EN ISO 13849) |
| PFHD | 15 × 10⁻⁹ per hour |
| Mission Time (TM) | 20 years |
| Light Source Wavelength | 850 nm |
| Housing Material | Aluminum Extruded Profile |
| Housing Dimensions | 48 mm × 40 mm Cross-Section |
| Ingress Protection | IP65 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Range | 15% to 95%, Non-Condensing |
| Weight | 8.7 lbs |
Information About C40E-1803AH030
The C40E-1803AH030 is part of SICK’s C4000 safety light curtain family, developed for robust machine guarding and area protection. This receiver is designed to operate as part of a matched transmitter-receiver pair, ensuring accurate beam synchronization and fault detection. It meets the highest safety classifications, including Type 4, PL e, and SIL 3, making it suitable for high-risk industrial environments. Its extruded aluminum housing and IP65 rating support long-term reliability in demanding factory conditions.
Key Features
- Type 4 Safety Performance: Designed in accordance with IEC 61496-1 to meet the highest safety requirements for machine guarding.
- PL e And SIL 3 Compliance: Supports advanced functional safety architectures for critical industrial applications.
- Extended Protective Height: 1800 mm protective field enables full-body or area protection coverage.
- 30 mm Resolution: Provides reliable detection of objects within the defined safety zone.
- Optical Synchronization: Ensures stable communication and alignment with the corresponding transmitter.
- Rugged Aluminum Housing: Extruded profile construction enhances durability and resistance to industrial wear.
- Wide Operating Environment Range: Maintains stable performance across temperature and humidity variations.
The C40E-1803AH030 delivers the reliability and precision required for high-level industrial safety and machine protection systems.
