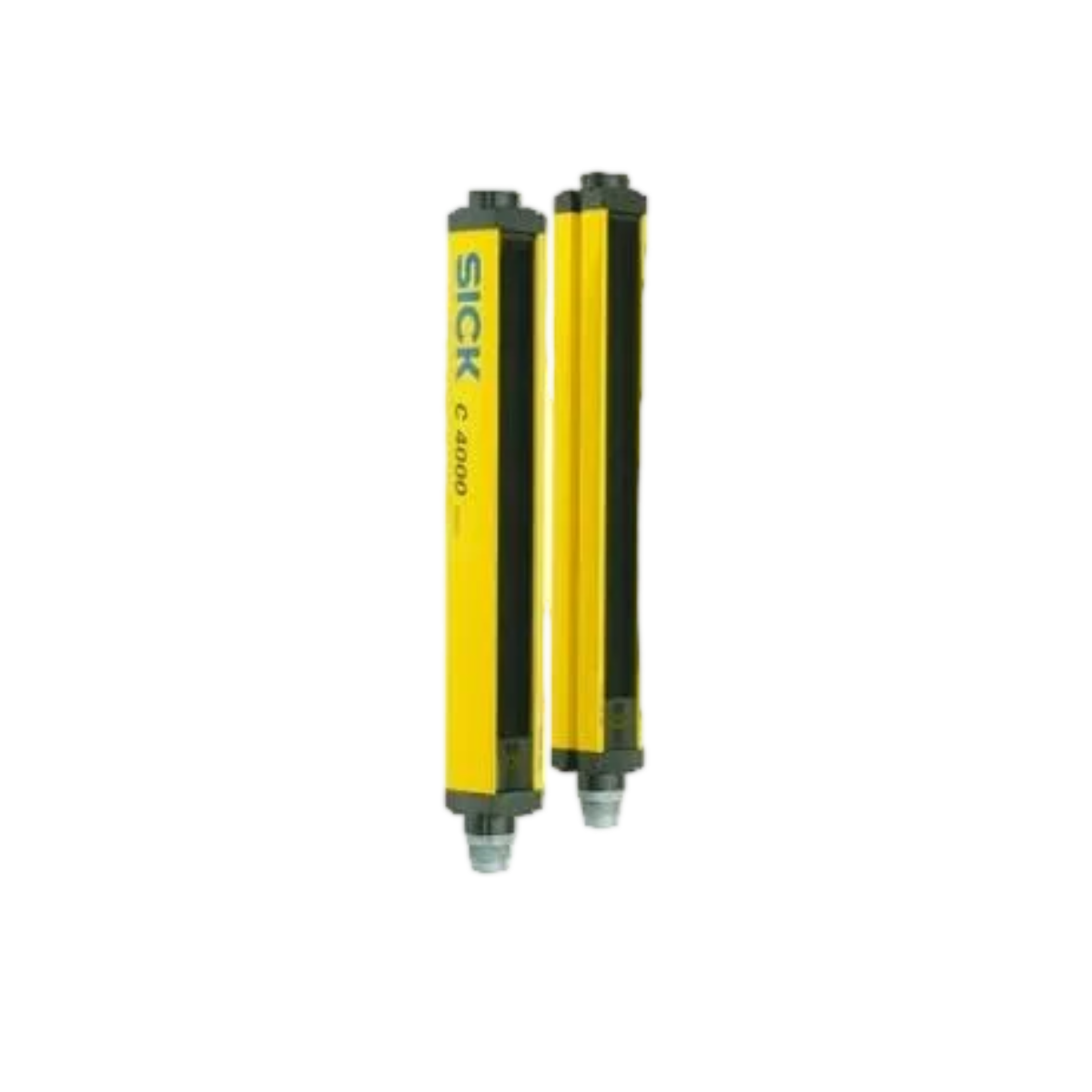

C40S-0703AA030 | SICK C4000 Basic Safety Light Curtain Sender 30 Mm Resolution 750 Mm Height
- Regular price
- $1,749.00
- Sale price
- $1,749.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C40S-0703AA030
Description
The SICK C40S-0703AA030 is a C4000 Basic safety light curtain sender designed for reliable personnel protection in industrial machine safeguarding applications. It emits a defined infrared protective field with a 30 mm resolution and a protective height of 750 mm over a scanning range of up to 6 m.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Safety Sensors |
| Part Number | C40S-0703AA030 |
| Subcategory | Safety Light Curtains |
| System Part | Sender |
| Series | C4000 Basic |
| Safety Type | Type 4 (IEC 61496-1) |
| Resolution | 30 mm |
| Protective Field Height | 750 mm |
| Scanning Range | Up to 6 m |
| Safety Integrity Level | SIL 3 (IEC 61508), SILCL 3 (EN 62061) |
| Safety Category | Category 4 (EN ISO 13849) |
| Performance Level | PL e (EN ISO 13849) |
| PFHD | 1.5 × 10⁻⁸ |
| Mission Time | 20 years |
| Safe State on Fault | At least one OSSD in OFF state |
| Wavelength | 950 nm |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | 0 °C … +55 °C |
| Storage Temperature | –25 °C … +70 °C |
| Air Humidity | 15 % … 95 %, non-condensing |
| Vibration Resistance | 5 g, 10 Hz … 55 Hz |
| Shock Resistance | 10 g, 16 ms |
| Weight | 3.9 lbs |
Information About C40S-0703AA030
The C40S-0703AA030 is part of SICK’s C4000 Basic safety light curtain platform developed for high-risk machine safeguarding applications. This sender unit works together with a compatible C4000 receiver to form a certified Type 4 protective system capable of achieving SIL 3 and PL e safety levels. Its 30 mm resolution supports reliable hand and body detection while maintaining practical safety distances. The device is engineered for stable operation in normal industrial environments with defined resistance to vibration, shock, and environmental influences.
Key Features
- Type 4 Safety Certification: Designed in accordance with IEC 61496-1 and supports SIL 3 and PL e safety performance levels.
- 30 Mm Resolution: Enables reliable detection of hand and body intrusion in hazardous machine areas.
- 750 Mm Protective Field Height: Provides vertical coverage suitable for guarding machine access points and work cells.
- 6 M Scanning Range: Supports flexible installation with stable beam alignment between sender and receiver.
- Defined Safe State Behavior: Ensures at least one OSSD switches to the OFF state in the event of a detected fault.
- Robust Environmental Resistance: Maintains reliable operation under vibration, shock, and varying humidity conditions.
- Infrared Emission At 950 Nm: Provides stable and interference-resistant optical performance for safety applications.
The C40S-0703AA030 delivers the reliability and precision required for high-performance personnel protection in certified industrial safety light curtain systems.
