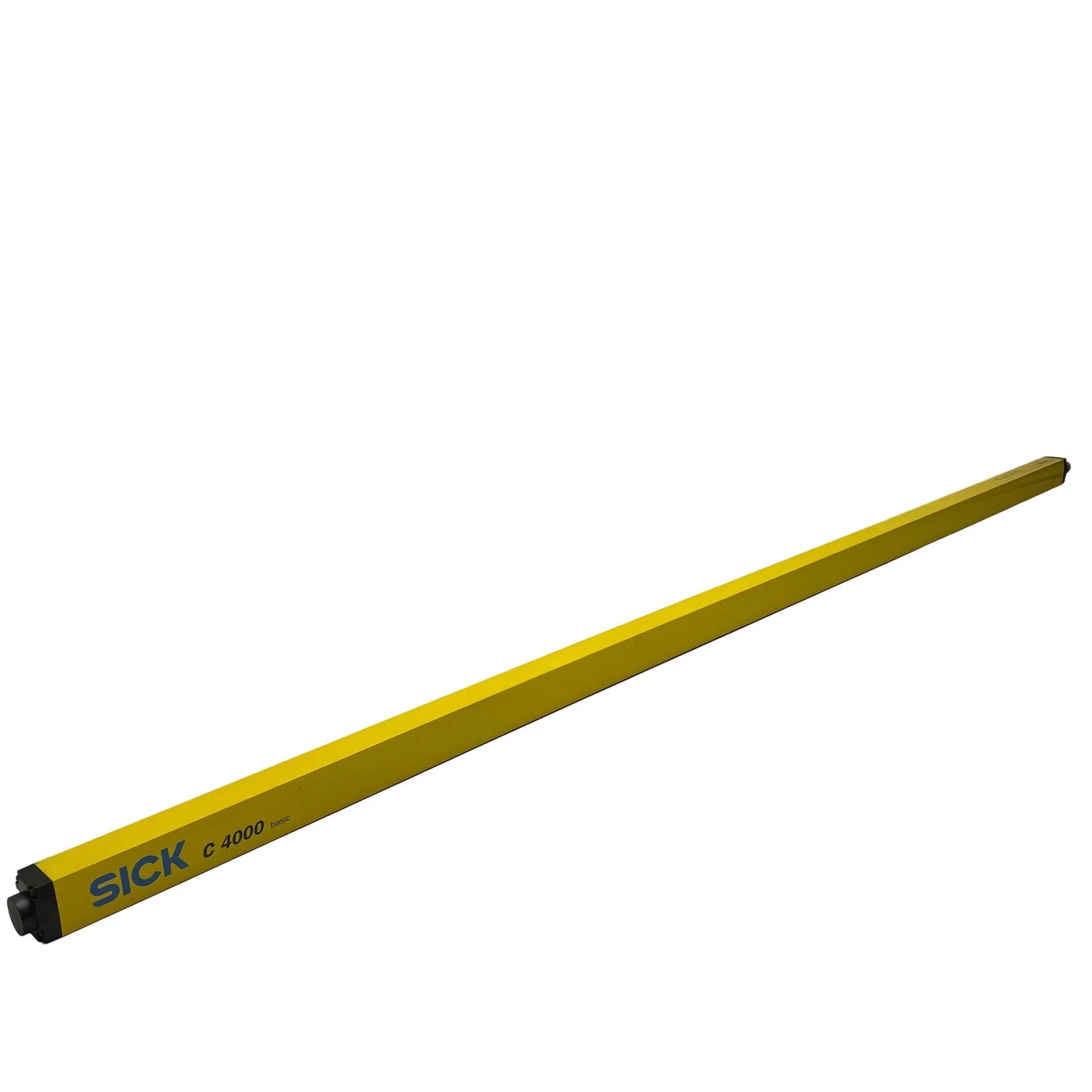

C40S-1803AA030 | SICK C4000 Safety Light Curtain Sender 1800 mm
- Regular price
- $5,299.00
- Sale price
- $5,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C40S-1803AA030
Description
The SICK C40S-1803AA030 is a safety light curtain sender designed for reliable machine guarding in industrial automation environments. It provides a tall protective field with certified Type 4 safety performance to support advanced personnel protection systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C40S-1803AA030 |
| Subcategory | Safety Light Curtains |
| Series | C4000 |
| System Part | Sender |
| Resolution | 30 mm |
| Protective Field Height | 1800 mm |
| Scanning Range | Up to 6 m |
| Synchronization | Optical Synchronization |
| Safety Type | Type 4 (IEC 61496-1) |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Safety Category | Category 4 (EN ISO 13849) |
| Performance Level | PL e (EN ISO 13849) |
| Protection Class | Class III (IEC 61140) |
| Supply Voltage | 24 VDC (19.2–28.8 VDC) |
| Residual Ripple | ≤ 10% |
| Housing Material | Aluminum Extruded Profile |
| Housing Cross-Section | 48 mm × 40 mm |
| Ingress Protection | IP65 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Weight | 3,680 g |
Information About C40S-1803AA030
The C40S-1803AA030 is part of SICK’s C4000 safety light curtain series, engineered to deliver dependable machine guarding in industrial environments. This sender forms the transmitting component of a Type 4 safety light curtain system and is designed to operate in conjunction with a compatible C4000 receiver. It features optical synchronization to ensure stable beam alignment and consistent system operation. The rugged aluminum housing and high ingress protection rating support long-term use in demanding automation applications.
Key Features
- Type 4 Safety Architecture: Designed in accordance with IEC 61496-1 to meet the highest machine safety requirements.
- PL e And SIL 3 Compliance: Supports advanced functional safety systems for high-risk industrial applications.
- Extended Protective Height: 1800 mm sensing field enables effective area and access protection.
- Short-Range Scanning Capability: Optimized for installations requiring scanning distances up to 6 meters.
- Optical Synchronization: Ensures stable and accurate operation with the corresponding receiver.
- Rugged Industrial Housing: Extruded aluminum profile with IP65 protection ensures durability in harsh environments.
- Wide Operating Temperature Range: Maintains reliable performance in typical industrial conditions.
The C40S-1803AA030 delivers the reliability and precision required for advanced industrial machine safety and personnel protection systems.
