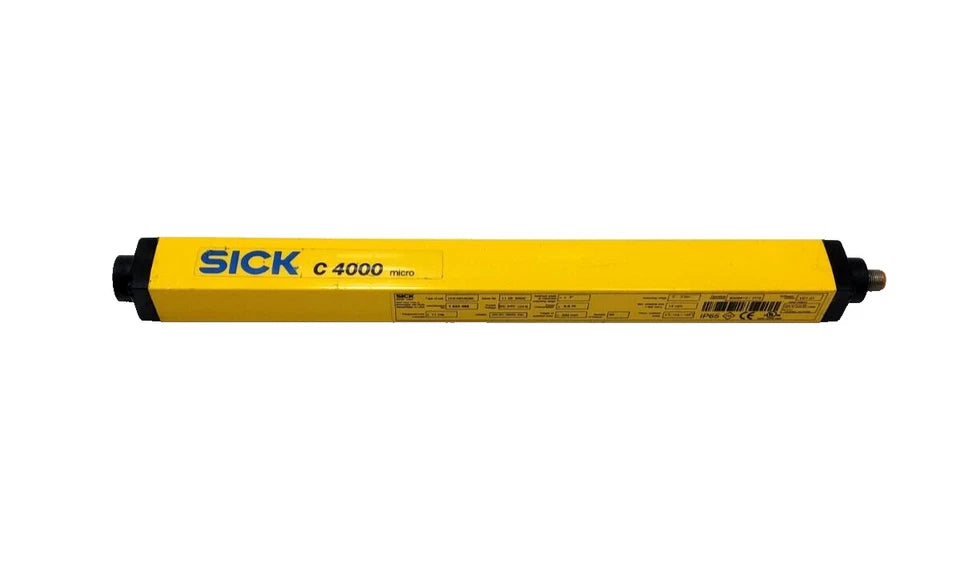

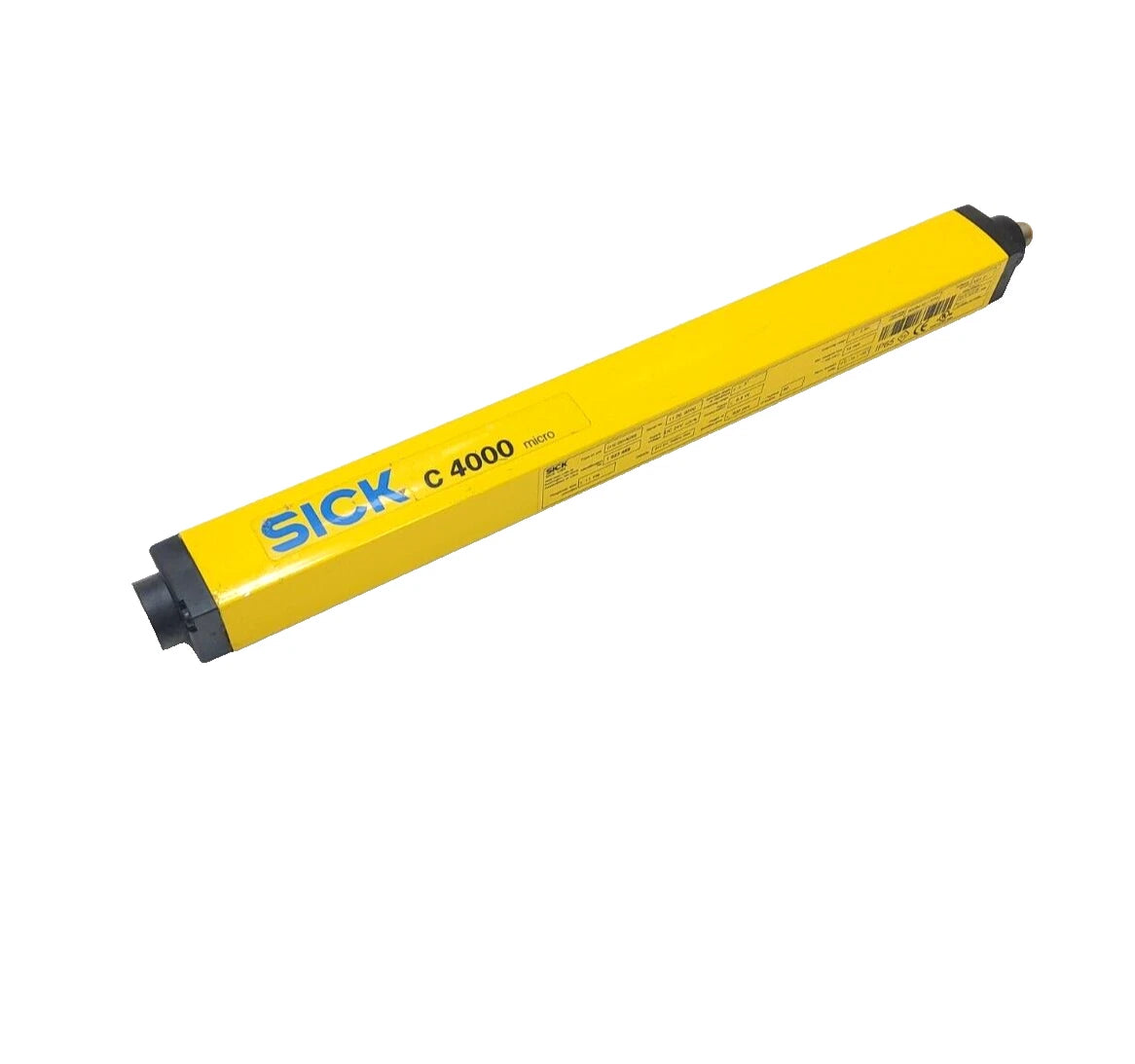

C41E-0301AG300 | SICK C4000 Micro Safety Light Curtain Receiver 300 mm
- Regular price
- $2,795.00
- Sale price
- $2,795.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C41E-0301AG300
Description
The SICK C41E-0301AG300 is a C4000 Micro safety light curtain receiver designed for short-range finger protection in compact machine safety applications. It provides high-resolution detection and certified Type 4 safety performance within a slim and space-efficient housing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C41E-0301AG300 |
| Subcategory | Safety Light Curtain Receivers |
| Series | C4000 Micro |
| System Part | Receiver |
| Protection Type | Finger Protection |
| Resolution | 14 mm |
| Protective Field Height | 300 mm |
| Scanning Range | Up to 2.5 m |
| Synchronization | Optical Synchronization |
| Safety Type | Type 4 (IEC 61496-1) |
| Performance Level | PL e (EN ISO 13849) |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Safety Category | Category 4 (EN ISO 13849) |
| PFHD | 15 × 10⁻⁹ per hour |
| Mission Time (TM) | 20 years |
| Protection Class | Class III (IEC 61140) |
| Supply Voltage | 24 VDC (19.2–28.8 VDC) |
| Ingress Protection | IP65 |
| Operating Temperature | -30°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| Humidity Range | 15% to 95%, Non-Condensing |
| Housing Material | Aluminum Extruded Profile |
| Housing Cross-Section | 33.5 mm × 28.5 mm |
| Weight | 385 g |
Information About C41E-0301AG300
The C41E-0301AG300 is part of SICK’s C4000 Micro safety light curtain series, developed for compact machinery requiring high-resolution finger protection. This receiver is engineered to operate as a matched component within a Type 4 safety system, ensuring reliable detection and fault monitoring. It meets stringent international safety standards, including PL e and SIL 3, supporting use in safety-critical industrial environments. Its slim aluminum housing allows installation in confined spaces while maintaining robust environmental protection.
Key Features
- 14 mm High-Resolution Detection: Enables precise finger protection for close-proximity hazardous areas.
- Type 4 Safety Architecture: Designed to meet the highest machine safety requirements under IEC and ISO standards.
- PL e And SIL 3 Compliance: Supports advanced functional safety systems in high-risk applications.
- Compact Protective Height: 300 mm sensing field optimized for small access openings and localized protection.
- Optical Synchronization: Ensures stable and accurate operation with the corresponding transmitter.
- Slim Aluminum Housing: Space-saving extruded profile supports installation in tight machine designs.
- Wide Environmental Tolerance: Maintains reliable performance across extended temperature and humidity ranges.
The C41E-0301AG300 delivers the reliability and precision required for compact, high-performance machine safety and finger protection applications.
