C41E-0301BG300 | SICK C4000 Micro Type 4 Safety Light Curtain 300 mm
- Regular price
- $1,724.00
- Sale price
- $1,724.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C41E-0301BG300
Description

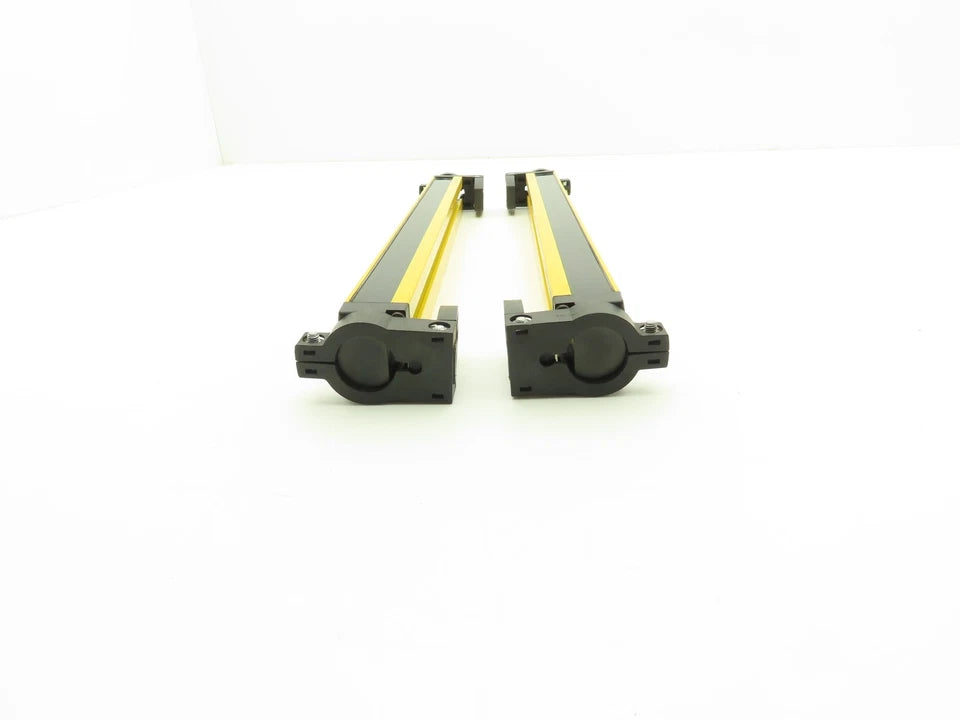

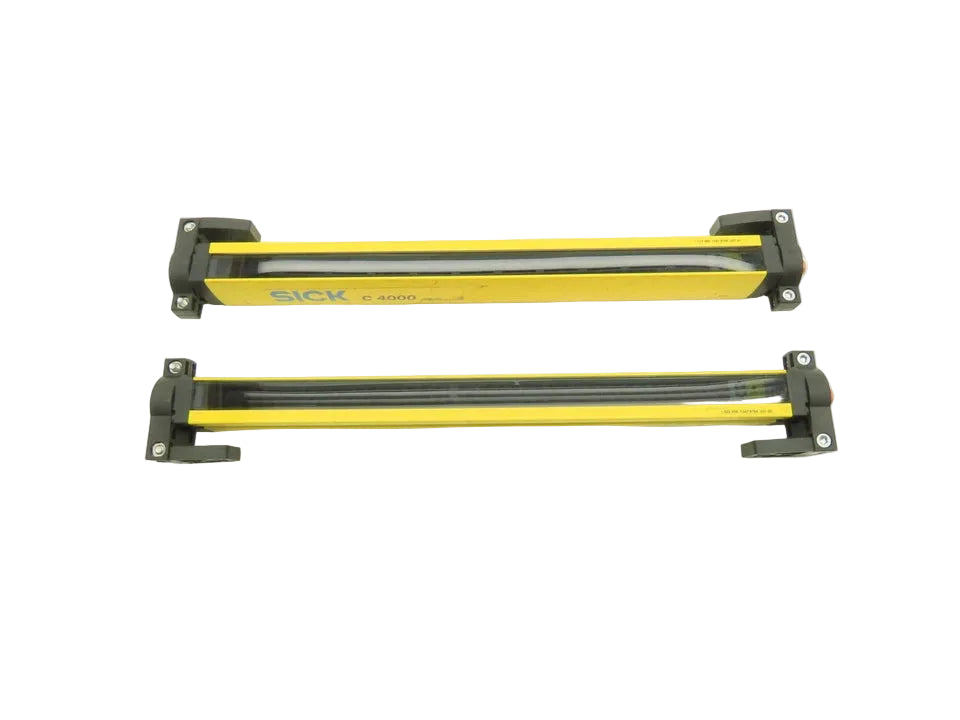

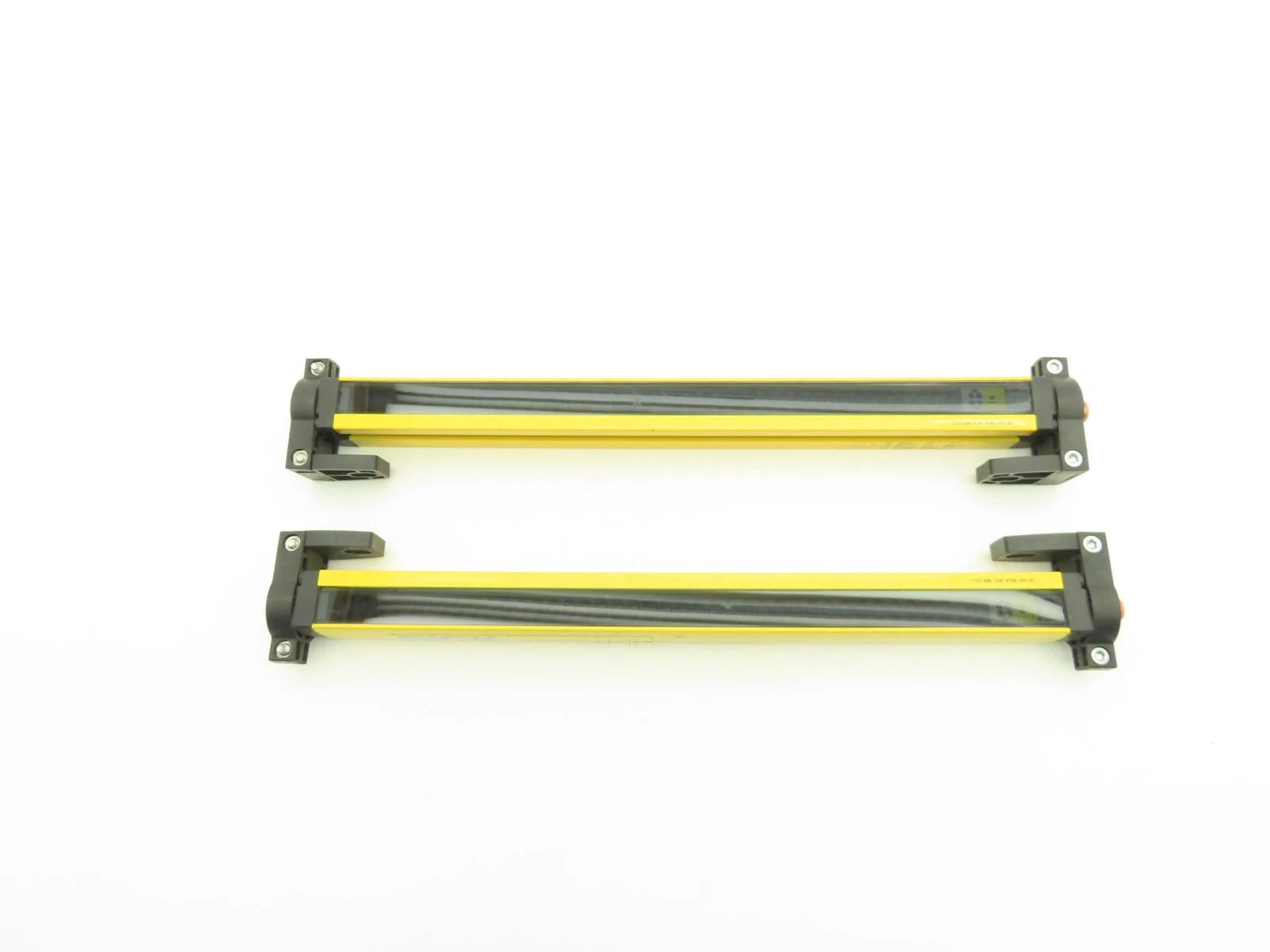

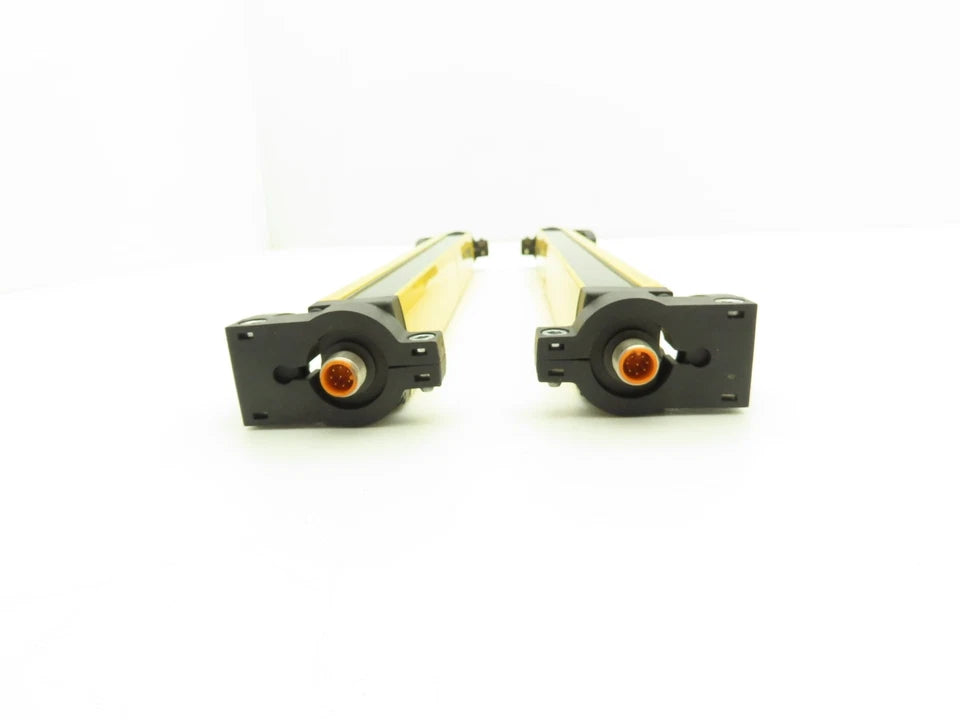

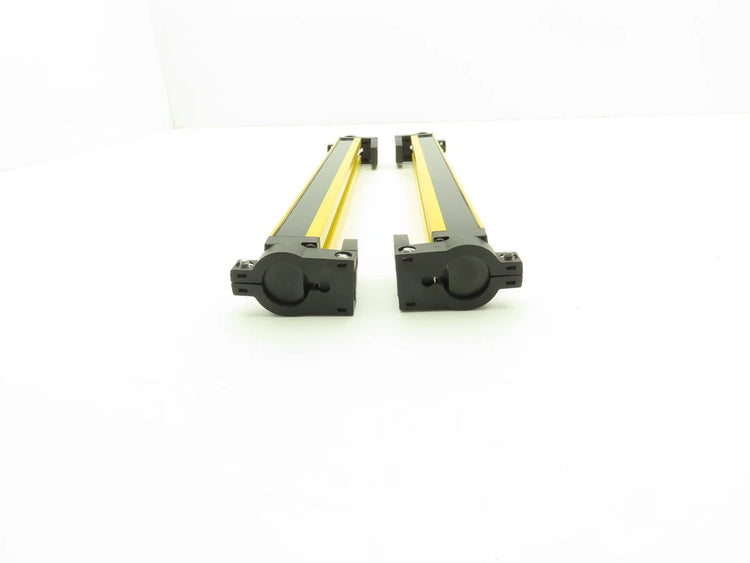

The SICK C41E-0301BG300 is a Type 4 safety light curtain system designed to provide reliable personnel protection in industrial automation environments. It offers a 300 mm protective field height with 14 mm resolution, ensuring precise detection for machine safeguarding applications. This sender-receiver pair is engineered for fast response times and high safety integrity in demanding production settings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Machine Safety |
| Part Number | C41E-0301BG300 |
| Subcategory | Safety Light Curtains |
| Series | C4000 Micro |
| System Type | Sender-Receiver Pair |
| Resolution | 14 mm |
| Protective Field Height | 300 mm |
| Scanning Range | 1 m to 5 m |
| Response Time | ≤ 20 ms |
| Synchronization | Optical |
| Safety Type | Type 4 (IEC 61496-1) |
| Safety Integrity Level | SIL3 / SILCL3 |
| Performance Level | PL e (EN ISO 13849) |
| Output Type | 2 × PNP OSSDs |
| Connection Type | M12 Connector, 8-Pin |
| Enclosure Rating | IP65 |
| Operating Temperature | -30 to +55 °C |
| Housing Cross-Section | 33.5 × 28.5 mm |
| Weight | Approx. 385 g (0.39 kg) |
Information About C41E-0301BG300
The C41E-0301BG300 belongs to SICK’s C4000 Micro series of opto-electronic protective devices developed for advanced machine safety. It operates as a sender-receiver pair with optical synchronization and supports flexible integration via hardwired configuration or external safety controllers. The system meets stringent international safety standards, including Type 4, SIL3, and Performance Level e. It is commonly used in packaging machines, assembly lines, robotic cells, and automated equipment where high-level personnel protection is required.
Key Features:
- Type 4 Safety Light Curtain: Complies with IEC 61496-1 for high-risk machine safeguarding
- Fine Resolution Detection: 14 mm resolution suitable for finger and hand protection
- Compact Protective Field: 300 mm guarded height for targeted safety zones
- Fast Response Time: ≤ 20 ms response supports dynamic industrial processes
- High Safety Certification: Rated SIL3, SILCL3, and PL e for maximum functional safety
- Flexible System Integration: Supports hardwired configuration and Flexi Soft safety networks
- Robust Industrial Design: IP65 enclosure rating for harsh industrial environments
The C41E-0301BG300 delivers the reliability and precision required for high-integrity machine safety and personnel protection systems.
