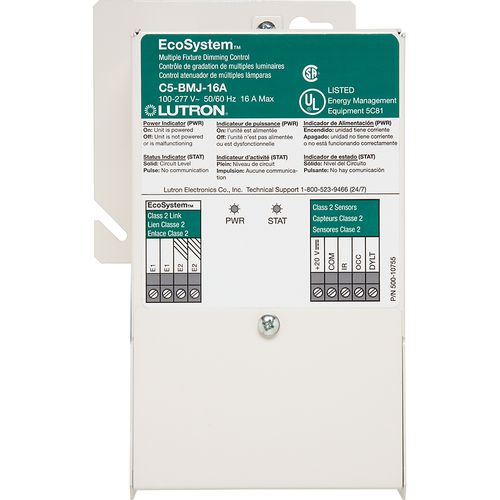

C5-BMJ-16A | Lutron Ecosystem Dimming Power Module 3-Wire 100–277V 16A
- Regular price
- $375.00
- Sale price
- $375.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C5-BMJ-16A
Description
The Lutron C5-BMJ-16A Ecosystem Dimming Power Module is a 3-wire dimming interface module designed to provide reliable control for compatible Lutron dimming ballasts and loads. Operating on 100–277 VAC, it supports up to 16 amps of lighting load for fluorescent, incandescent, halogen, magnetic low-voltage (MLV), and electronic low-voltage (ELV) sources in commercial lighting systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | C5-BMJ-16A |
| Subcategory | Dimming Modules |
| Series | Ecosystem® |
| Type | Dimming Power Module |
| Voltage Rating | 100–277 VAC, 50/60 Hz |
| Current Rating | 16 A |
| Load Rating | Up to 16 A for supported load types |
| Load Types | Fluorescent, Incandescent, Halogen, MLV, ELV |
| Control Type | 3-wire dimming interface |
| Power Rating | 2 VA nominal |
| Wire Size | 12–22 AWG |
| Mounting Type | Surface or panel mounting (indoor use) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity Range | <90% RH, non-condensing |
| Material | Metal/plastic enclosure |
| Dimensions (H × W × D) | 7.8 in × 5 in × 2.5 in |
| Certifications | UL 916, CSA 184, NOM |
| Standards Compliance | ANSI C62.41, ESD S20.20, ISO 9001, NEC |
| Application | Indoor commercial lighting dimming |
| Country of Origin | USA |
| Color/Finish | White |
| UNSPSC | 39121009 |
| Weight | 2.2 lb (approx.) |
Information About C5-BMJ-16A
The C5-BMJ-16A belongs to the Lutron Ecosystem® dimming family, engineered to enable seamless communication and power delivery for 3-wire dimming ballasts. This module acts as a dimming load booster, extending the control capacity of Lutron lighting systems while ensuring precise, flicker-free dimming. Built to UL 916, CSA 184, and NOM standards, the unit provides efficient power regulation and load compatibility across a wide voltage range (100–277 VAC, 50/60 Hz). With its compact design and wide operating temperature range, the module is ideal for indoor commercial environments requiring stable dimming control and energy efficiency.
Key Features:
- 3-Wire Dimming Control: Designed for use with Lutron 3-wire dimming ballasts and compatible loads.
- High Load Capacity: Supports up to 16 A of connected lighting load for large-scale applications.
- Wide Voltage Range: Operates from 100 to 277 VAC, accommodating international and commercial power systems.
- Versatile Load Support: Compatible with fluorescent, incandescent, halogen, MLV, and ELV lighting types.
- Ecosystem Integration: Works with Lutron Ecosystem digital lighting control systems for networked dimming.
- Compact Design: Small form factor allows easy installation in panels or junction boxes.
- Certified Safe: UL 916, CSA 184, NOM, and ANSI compliant for commercial-grade safety and reliability.
- Environmental Protection: Operates from 32°F to 104°F (0°C to 40°C) with <90% humidity.
The C5-BMJ-16A delivers the reliability and precision required for advanced, scalable dimming in professional lighting control environments.
