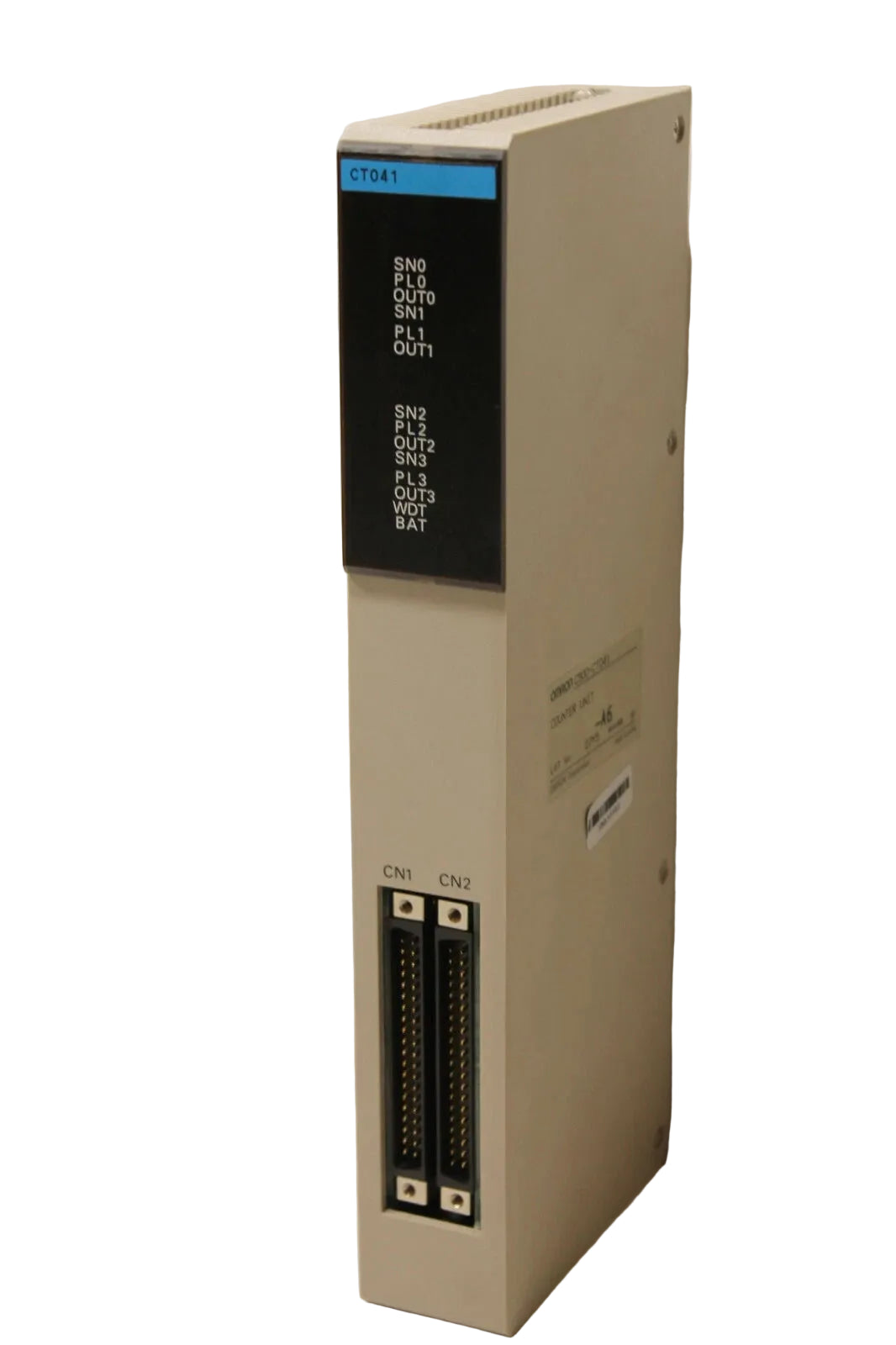

C500-CT041 | Omron SYSMAC C500 High-Speed Counter Unit, 4-Channel
- Regular price
- $3,327.00
- Sale price
- $3,327.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C500-CT041
Description
The Omron C500-CT041 programmable controller module is a high-speed counter unit designed for precise pulse and event counting within SYSMAC C500 PLC systems. It supports fast input signal processing up to 20 kcps, making it suitable for motion feedback, encoder input, and high-speed counting applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Programmable Logic Controllers |
| Part Number | C500-CT041 |
| Subcategory | PLC Counter Modules |
| Product Line | C500 |
| Module Name | High-Speed Counter Unit |
| Number of Channels | 4 (individually operable) |
| Maximum Count Speed | 20 kcps |
| Input Voltage | 24 VDC |
| Input Current | 8 mA typical per input |
| Minimum ON Voltage | 21.6 VDC |
| Maximum OFF Voltage | 4.0 VDC |
| Internal Current Consumption | 1.0 A at 5 VDC (max.) |
| External Power Supply | 30 mA at 24 VDC |
| Output Type | External Output Signals |
| Maximum Switching Capacity | 100 mA at 24 VDC (200 mA max./common) |
| Minimum Switching Capacity | 1 mA at 5 VDC |
| Leakage Current | 0.1 mA max. |
| Residual Voltage | 0.4 V max. |
| Mounting Type | Panel Mount / PLC Rack |
| Weight | 0.63 lbs (0.28 kg) |
Information About C500-CT041
The C500-CT041 is part of Omron’s SYSMAC C500 product line, a modular PLC platform built for reliable industrial automation. This high-speed counter unit provides up to four independently operable channels, allowing flexible configuration based on application requirements. It operates on a 24 VDC input system and supports external output signaling for integration with control logic and peripheral devices. Designed for panel-mounted PLC racks, the module delivers stable performance in applications requiring accurate counting and timing control.
Key Features:
- High-Speed Counter Function: Supports pulse counting speeds up to 20 kcps for fast signal processing.
- Four Independent Channels: Allows individual operation and configuration of up to four counter inputs.
- SYSMAC C500 Compatibility: Designed specifically for integration with Omron C500 PLC systems.
- 24 VDC Input Operation: Ensures compatibility with standard industrial control voltages.
- External Output Signals: Provides output signaling for control logic and system feedback.
- Precise Switching Characteristics: Supports low leakage current and defined ON/OFF voltage thresholds.
- Panel-Mount PLC Module: Installs directly into C500 PLC racks for modular system expansion.
The C500-CT041 delivers the reliability and precision required for high-speed counting, pulse monitoring, and motion-related PLC applications.
