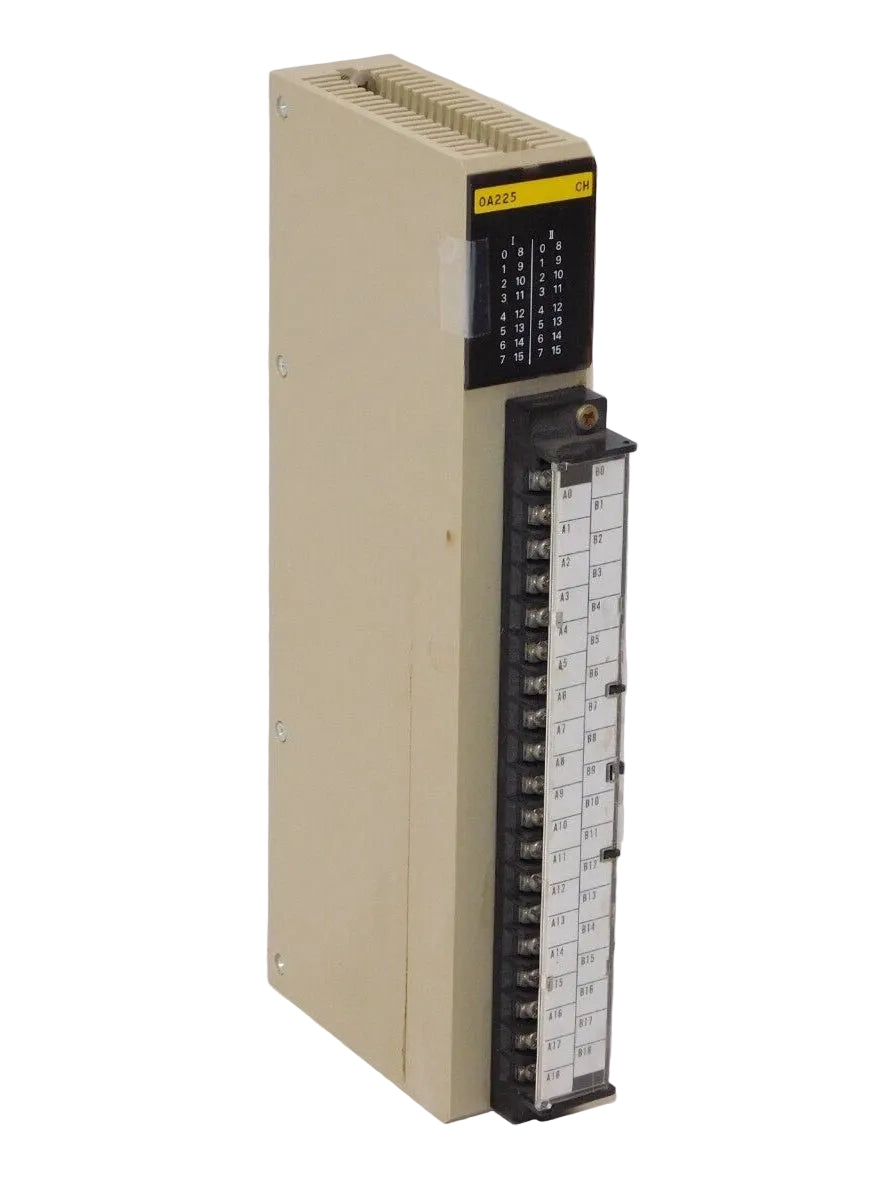

C500-OA223 | Omron SYSMAC C500 24-Point TRIAC Output Module
- Regular price
- $407.00
- Sale price
- $407.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C500-OA223
Description
The Omron C500-OA223 is a 24-point TRIAC output module designed for the SYSMAC C500 programmable controller platform. It provides AC output switching up to 1 A per point at 250 VAC, making it suitable for controlling lamps, solenoids, and other AC loads. This panel-mounted unit delivers fast response times and stable switching performance for industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | C500-OA223 |
| Subcategory | PLC Output Modules |
| Product Line | SYSMAC C500 |
| Module Type | TRIAC Output Unit |
| Number of Points | 24 Outputs (8 Points/Common, 3 Circuits) |
| Output Type | TRIAC (AC Output) |
| Maximum Switching Capacity | 1 A per point at 250 VAC, 50/60 Hz (4 A/Common, 5 A/Unit) |
| Minimum Switching Capacity | 10 mA (Resistive), 40 mA (Inductive), 10 VAC |
| Leakage Current | 3 mA max. (100 VAC), 6 mA max. (200 VAC) |
| Residual Voltage | 1.2 V max |
| ON Response Time | 1 ms max |
| OFF Response Time | Half of load frequency max |
| Internal Current Consumption | 450 mA max at 5 VDC |
| Fuse Capacity | 5 A, 250 V (Two Fuses) |
| Mounting Type | Panel Mount |
| Weight | 1.44 lbs (0.65 kg) |
Information About C500-OA223
The C500-OA223 is a TRIAC output unit developed for the Omron SYSMAC C500 PLC series, enabling reliable AC load control within modular control architectures. It features 24 output points arranged in 8 points per common across three circuits, allowing flexible wiring and load grouping. The module supports a maximum switching capacity of 1 A per point at 250 VAC, with defined leakage current and residual voltage characteristics to ensure predictable performance. Built for panel mounting, it integrates directly into C500 racks and is protected by dual 5 A fuses to safeguard the output circuits in demanding industrial environments.
Key Features:
- 24 TRIAC Outputs: Provides 24 AC output points for switching industrial loads.
- 1 A per Point Rating: Supports up to 1 A at 250 VAC per output channel.
- 8 Points per Common: Organized into three circuits for flexible load distribution.
- Fast Response Time: ON response time of 1 ms maximum for precise control.
- Defined Leakage Current: Maximum 3 mA at 100 VAC and 6 mA at 200 VAC.
- Low Residual Voltage: 1.2 V maximum ensures stable load operation.
- Integrated Fuse Protection: Equipped with two 5 A, 250 V fuses for circuit protection.
- Panel Mount Design: Designed for direct installation in SYSMAC C500 control racks.
The C500-OA223 delivers the reliability and precision required for AC output switching in industrial PLC control systems.
