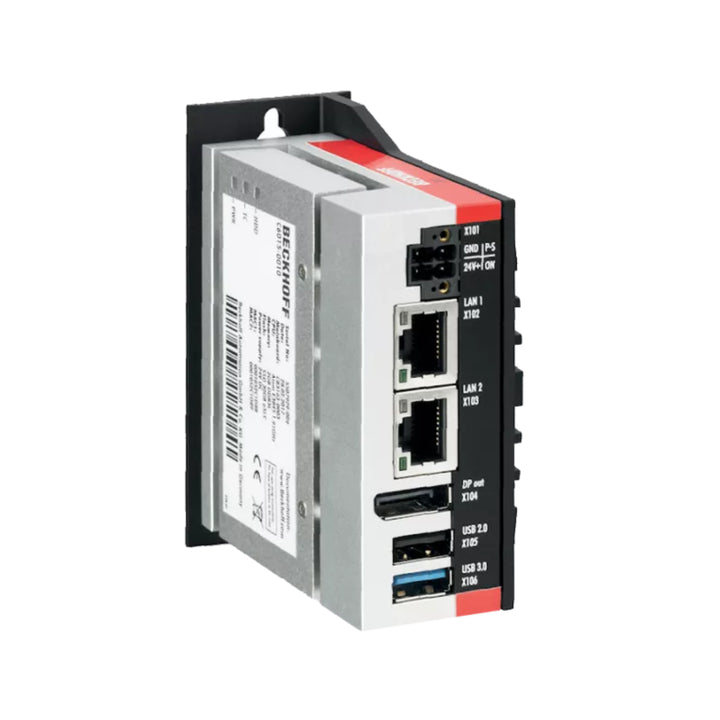

C6015-0010 | Beckhoff Ultra-Compact Industrial PC
- Regular price
- $2,099.00
- Sale price
- $2,099.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C6015-0010
Description
The Beckhoff C6015-0010 is an ultra-compact industrial PC with dimensions of only 82 x 82 x 40 mm. It features Intel Atom® processing power, 2 GB DDR3L RAM, and a 40 GB M.2 SSD, making it a versatile solution for automation, IoT gateway, and edge device applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | C6015-0010 |
| Subcategory | Ultra-Compact PCs |
| Device Type | Ultra-compact control cabinet PC |
| Housing | Aluminum zinc die-cast housing |
| Installation | Rear-wall, side-wall, or DIN rail mounting |
| Processor | Intel Atom® E3815, 1.46 GHz, 1 core (expandable to E3845, 1.91 GHz, 4 cores) |
| Motherboard | Compact motherboard for Intel Atom® E38xx |
| Memory | 2 GB DDR3L RAM (expandable up to 4 GB) |
| Storage | 40 GB M.2 SSD (expandable up to 320 GB) |
| Graphics | Integrated in processor |
| Ethernet Ports | 2 x 100/1000BASE-T onboard |
| Interfaces | 1 x USB 3.0, 1 x USB 2.0, 1 x DisplayPort |
| Cooling | Passive with single side cooling plate |
| Protection Rating | IP20 |
| Operating Temperature | 0…55°C |
| Storage Temperature | -25…+85°C |
| Free Space Requirement | 5 cm above and below for air circulation |
| Dimensions (W x H x D) | 82 x 82 x 40 mm (3.2" x 3.2" x 1.6"), without mounting plate |
| Power Supply | 24 V DC |
| Application | Automation tasks, IoT gateway, edge computing |
| Weight | 0.60 lbs (approx. 270 g) |
Information About C6015-0010
The C6015-0010 is part of Beckhoff’s C6015 series of ultra-compact industrial PCs, designed for space-saving control cabinet installation and efficient computing. Its aluminum zinc die-cast housing ensures durability while maintaining a lightweight design, and the device supports flexible mounting options including rear-wall, side-wall, or DIN rail configurations. Powered by an Intel Atom® E3815 processor at 1.46 GHz (expandable up to an E3845 quad-core option), it provides reliable performance for automation control, IoT gateways, and edge computing. With 2 GB DDR3L RAM, a 40 GB M.2 SSD, dual Gigabit Ethernet, USB connectivity, and full TwinCAT and EtherCAT compatibility, the C6015-0010 integrates seamlessly into industrial networks while maintaining energy-efficient operation.
Key Features:
-
Ultra-Compact Size: Measures only 82 x 82 x 40 mm, saving space in control cabinets and machine installations.
-
Processor Performance: Equipped with Intel Atom® E3815, 1.46 GHz single-core, scalable up to E3845 quad-core versions.
-
Integrated Memory and Storage: Comes with 2 GB DDR3L RAM and a 40 GB M.2 SSD, expandable up to 4 GB RAM and 320 GB SSD.
-
Versatile Mounting: Supports rear-wall, side-wall, and DIN rail mounting for flexible installation in various environments.
-
Passive Cooling: Features single-side cooling plate with no moving parts, ensuring silent and reliable operation.
-
Dual Ethernet Ports: Provides 2 x 100/1000BASE-T onboard for high-speed industrial communication.
-
Interface Options: Includes 1 x USB 3.0, 1 x USB 2.0, and 1 x DisplayPort for external device connections.
-
Durable Construction: Aluminum zinc die-cast housing rated IP20 for industrial robustness.
-
Environmental Tolerance: Operates between 0…55°C with 5 cm required free space for air circulation.
-
Automation Integration: Fully compatible with Beckhoff TwinCAT and EtherCAT systems for seamless deployment.
The C6015-0010 delivers the reliability and precision required for industrial automation, IoT gateway functions, and edge computing in compact environments.
Description
The Beckhoff C6015-0010 is an ultra-compact industrial PC with dimensions of only 82 x 82 x 40 mm. It features Intel Atom® processing power, 2 GB DDR3L RAM, and a 40 GB M.2 SSD, making it a versatile solution for automation, IoT gateway, and edge device applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | C6015-0010 |
| Subcategory | Ultra-Compact PCs |
| Device Type | Ultra-compact control cabinet PC |
| Housing | Aluminum zinc die-cast housing |
| Installation | Rear-wall, side-wall, or DIN rail mounting |
| Processor | Intel Atom® E3815, 1.46 GHz, 1 core (expandable to E3845, 1.91 GHz, 4 cores) |
| Motherboard | Compact motherboard for Intel Atom® E38xx |
| Memory | 2 GB DDR3L RAM (expandable up to 4 GB) |
| Storage | 40 GB M.2 SSD (expandable up to 320 GB) |
| Graphics | Integrated in processor |
| Ethernet Ports | 2 x 100/1000BASE-T onboard |
| Interfaces | 1 x USB 3.0, 1 x USB 2.0, 1 x DisplayPort |
| Cooling | Passive with single side cooling plate |
| Protection Rating | IP20 |
| Operating Temperature | 0…55°C |
| Storage Temperature | -25…+85°C |
| Free Space Requirement | 5 cm above and below for air circulation |
| Dimensions (W x H x D) | 82 x 82 x 40 mm (3.2" x 3.2" x 1.6"), without mounting plate |
| Power Supply | 24 V DC |
| Application | Automation tasks, IoT gateway, edge computing |
| Weight | 0.60 lbs (approx. 270 g) |
Information About C6015-0010
The C6015-0010 is part of Beckhoff’s C6015 series of ultra-compact industrial PCs, designed for space-saving control cabinet installation and efficient computing. Its aluminum zinc die-cast housing ensures durability while maintaining a lightweight design, and the device supports flexible mounting options including rear-wall, side-wall, or DIN rail configurations. Powered by an Intel Atom® E3815 processor at 1.46 GHz (expandable up to an E3845 quad-core option), it provides reliable performance for automation control, IoT gateways, and edge computing. With 2 GB DDR3L RAM, a 40 GB M.2 SSD, dual Gigabit Ethernet, USB connectivity, and full TwinCAT and EtherCAT compatibility, the C6015-0010 integrates seamlessly into industrial networks while maintaining energy-efficient operation.
Key Features:
-
Ultra-Compact Size: Measures only 82 x 82 x 40 mm, saving space in control cabinets and machine installations.
-
Processor Performance: Equipped with Intel Atom® E3815, 1.46 GHz single-core, scalable up to E3845 quad-core versions.
-
Integrated Memory and Storage: Comes with 2 GB DDR3L RAM and a 40 GB M.2 SSD, expandable up to 4 GB RAM and 320 GB SSD.
-
Versatile Mounting: Supports rear-wall, side-wall, and DIN rail mounting for flexible installation in various environments.
-
Passive Cooling: Features single-side cooling plate with no moving parts, ensuring silent and reliable operation.
-
Dual Ethernet Ports: Provides 2 x 100/1000BASE-T onboard for high-speed industrial communication.
-
Interface Options: Includes 1 x USB 3.0, 1 x USB 2.0, and 1 x DisplayPort for external device connections.
-
Durable Construction: Aluminum zinc die-cast housing rated IP20 for industrial robustness.
-
Environmental Tolerance: Operates between 0…55°C with 5 cm required free space for air circulation.
-
Automation Integration: Fully compatible with Beckhoff TwinCAT and EtherCAT systems for seamless deployment.
The C6015-0010 delivers the reliability and precision required for industrial automation, IoT gateway functions, and edge computing in compact environments.
