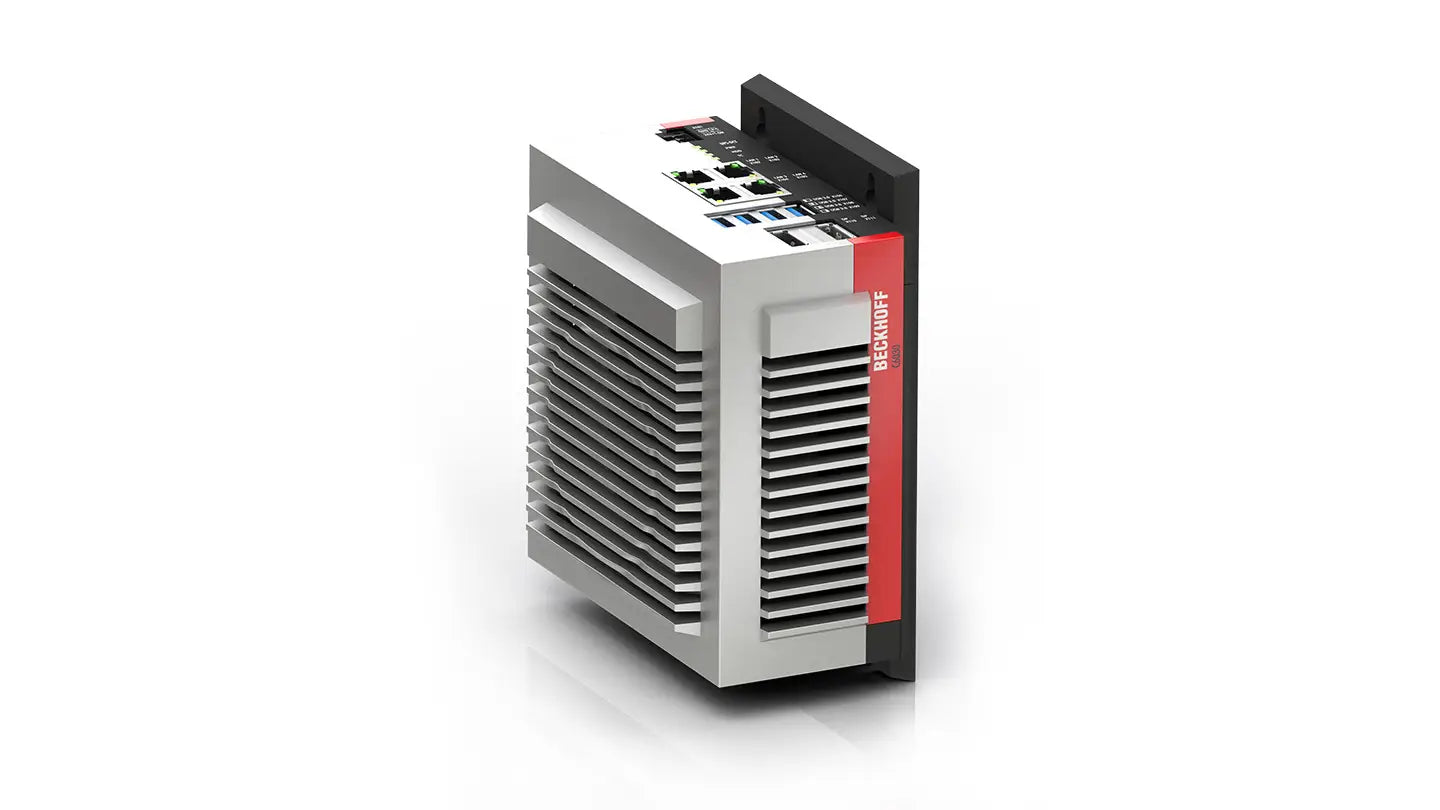

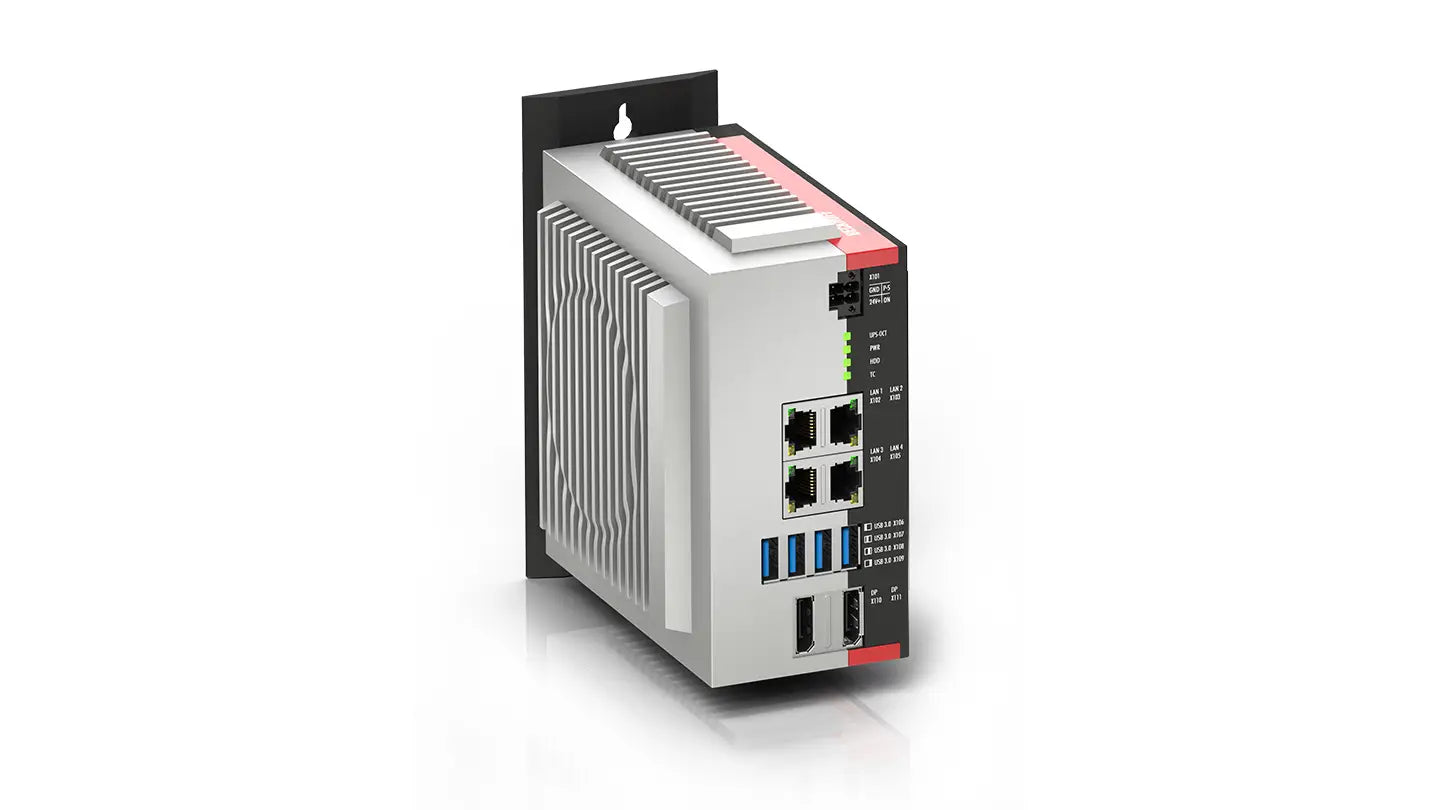

C6030-0060 | Beckhoff Ultra-Compact Industrial PC
- Regular price
- $3,240.00
- Sale price
- $3,240.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C6030-0060
Description
The Beckhoff C6030-0060 is an ultra-compact industrial PC featuring an Intel® Celeron G3900 dual-core processor, 4 GB DDR4 RAM, and a 40 GB M.2 SSD. With 4 x USB 3.0 ports, dual DisplayPort outputs, and robust 24 V DC operation, it provides reliable performance for automation and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | C6030-0060 |
| Subcategory | Ultra-Compact PCs |
| Device Type | Ultra-compact control cabinet PC |
| Housing | Aluminum zinc die-cast housing |
| Installation | Rear-wall or side-wall mounting |
| Processor | Intel® Celeron® G3900 2.8 GHz, 2 cores (expandable to Intel® Core™ i7 7700, 4 cores) |
| Motherboard | Compact motherboard for Intel® 6th/7th Gen CPUs |
| Memory | 4 GB DDR4 RAM (expandable up to 32 GB) |
| Storage | 40 GB M.2 SSD (expandable up to 640 GB) |
| Graphics | Integrated in processor |
| Ethernet Ports | 4 × 100/1000BASE-T onboard |
| Interfaces | 4 × USB 3.0, 2 × DisplayPort |
| Cooling | Integrated controlled fan |
| Operating Temperature | 0…55°C |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 132 × 133 × 76 mm (5.2” × 5.24” × 3.0”), without mounting plate |
| Power Supply | 24 V DC |
| Free Space Requirement | 5 cm around PC for air circulation |
| UPS | External supported |
| Operating Systems | Windows 10 IoT Enterprise (various versions) |
| Security | TPM 2.0 |
| TwinCAT Support | TwinCAT 2 and TwinCAT 3 (P50, P60, P70, P80) |
| Approvals/Markings | CE, cURus, EAC |
| Weight | 3.65 lbs (approx. 1.65 kg) |
Information About C6030-0060
The C6030-0060 is part of Beckhoff’s C6030 series, designed as a powerful yet space-saving industrial PC for modern automation environments. Built within a durable aluminum zinc die-cast housing, it measures only 132 × 133 × 76 mm and supports flexible installation on rear-wall or side-wall mounting plates. The unit operates with Intel® Celeron G3900 at 2.8 GHz, expandable up to Intel® Core™ i7 processors, and supports up to 32 GB DDR4 RAM with M.2 SSD storage up to 640 GB. With IP20 protection, an integrated fan for controlled cooling, four Gigabit Ethernet ports, four USB 3.0 ports, and compatibility with TwinCAT 2 and TwinCAT 3, the C6030-0060 offers scalability, performance, and seamless integration into industrial networks.
Key Features:
-
Processor Options: Comes with Intel® Celeron G3900 dual-core 2.8 GHz, scalable up to Intel® Core™ i7 7700 with four cores for higher workloads.
-
Memory and Storage: Equipped with 4 GB DDR4 RAM and 40 GB M.2 SSD, expandable up to 32 GB RAM and 640 GB SSD for demanding applications.
-
Compact Housing: Ultra-compact design (132 × 133 × 76 mm) with aluminum zinc die-cast housing ensures durability and space efficiency.
-
Versatile Interfaces: Includes 4 x USB 3.0 ports, 2 x DisplayPort outputs, and 4 x Gigabit Ethernet onboard for flexible connectivity.
-
Cooling System: Features an integrated controlled fan for efficient heat management during continuous operation.
-
Operating System Support: Compatible with Windows 10 IoT Enterprise in multiple versions, enabling modern software environments.
-
External UPS: Provides UPS connection support to ensure power stability during outages.
-
Protection Class: IP20-rated design for cabinet installation in industrial environments.
-
TwinCAT Integration: Supports TwinCAT 2 and multiple TwinCAT 3 performance levels (P50–P80) for seamless automation control.
-
Security Ready: Built with TPM 2.0 for secure system operation in industrial IT infrastructures.
The C6030-0060 delivers the reliability and precision required for compact yet powerful industrial computing, enabling automation, visualization, and control in demanding environments.
Description
The Beckhoff C6030-0060 is an ultra-compact industrial PC featuring an Intel® Celeron G3900 dual-core processor, 4 GB DDR4 RAM, and a 40 GB M.2 SSD. With 4 x USB 3.0 ports, dual DisplayPort outputs, and robust 24 V DC operation, it provides reliable performance for automation and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | C6030-0060 |
| Subcategory | Ultra-Compact PCs |
| Device Type | Ultra-compact control cabinet PC |
| Housing | Aluminum zinc die-cast housing |
| Installation | Rear-wall or side-wall mounting |
| Processor | Intel® Celeron® G3900 2.8 GHz, 2 cores (expandable to Intel® Core™ i7 7700, 4 cores) |
| Motherboard | Compact motherboard for Intel® 6th/7th Gen CPUs |
| Memory | 4 GB DDR4 RAM (expandable up to 32 GB) |
| Storage | 40 GB M.2 SSD (expandable up to 640 GB) |
| Graphics | Integrated in processor |
| Ethernet Ports | 4 × 100/1000BASE-T onboard |
| Interfaces | 4 × USB 3.0, 2 × DisplayPort |
| Cooling | Integrated controlled fan |
| Operating Temperature | 0…55°C |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 132 × 133 × 76 mm (5.2” × 5.24” × 3.0”), without mounting plate |
| Power Supply | 24 V DC |
| Free Space Requirement | 5 cm around PC for air circulation |
| UPS | External supported |
| Operating Systems | Windows 10 IoT Enterprise (various versions) |
| Security | TPM 2.0 |
| TwinCAT Support | TwinCAT 2 and TwinCAT 3 (P50, P60, P70, P80) |
| Approvals/Markings | CE, cURus, EAC |
| Weight | 3.65 lbs (approx. 1.65 kg) |
Information About C6030-0060
The C6030-0060 is part of Beckhoff’s C6030 series, designed as a powerful yet space-saving industrial PC for modern automation environments. Built within a durable aluminum zinc die-cast housing, it measures only 132 × 133 × 76 mm and supports flexible installation on rear-wall or side-wall mounting plates. The unit operates with Intel® Celeron G3900 at 2.8 GHz, expandable up to Intel® Core™ i7 processors, and supports up to 32 GB DDR4 RAM with M.2 SSD storage up to 640 GB. With IP20 protection, an integrated fan for controlled cooling, four Gigabit Ethernet ports, four USB 3.0 ports, and compatibility with TwinCAT 2 and TwinCAT 3, the C6030-0060 offers scalability, performance, and seamless integration into industrial networks.
Key Features:
-
Processor Options: Comes with Intel® Celeron G3900 dual-core 2.8 GHz, scalable up to Intel® Core™ i7 7700 with four cores for higher workloads.
-
Memory and Storage: Equipped with 4 GB DDR4 RAM and 40 GB M.2 SSD, expandable up to 32 GB RAM and 640 GB SSD for demanding applications.
-
Compact Housing: Ultra-compact design (132 × 133 × 76 mm) with aluminum zinc die-cast housing ensures durability and space efficiency.
-
Versatile Interfaces: Includes 4 x USB 3.0 ports, 2 x DisplayPort outputs, and 4 x Gigabit Ethernet onboard for flexible connectivity.
-
Cooling System: Features an integrated controlled fan for efficient heat management during continuous operation.
-
Operating System Support: Compatible with Windows 10 IoT Enterprise in multiple versions, enabling modern software environments.
-
External UPS: Provides UPS connection support to ensure power stability during outages.
-
Protection Class: IP20-rated design for cabinet installation in industrial environments.
-
TwinCAT Integration: Supports TwinCAT 2 and multiple TwinCAT 3 performance levels (P50–P80) for seamless automation control.
-
Security Ready: Built with TPM 2.0 for secure system operation in industrial IT infrastructures.
The C6030-0060 delivers the reliability and precision required for compact yet powerful industrial computing, enabling automation, visualization, and control in demanding environments.
