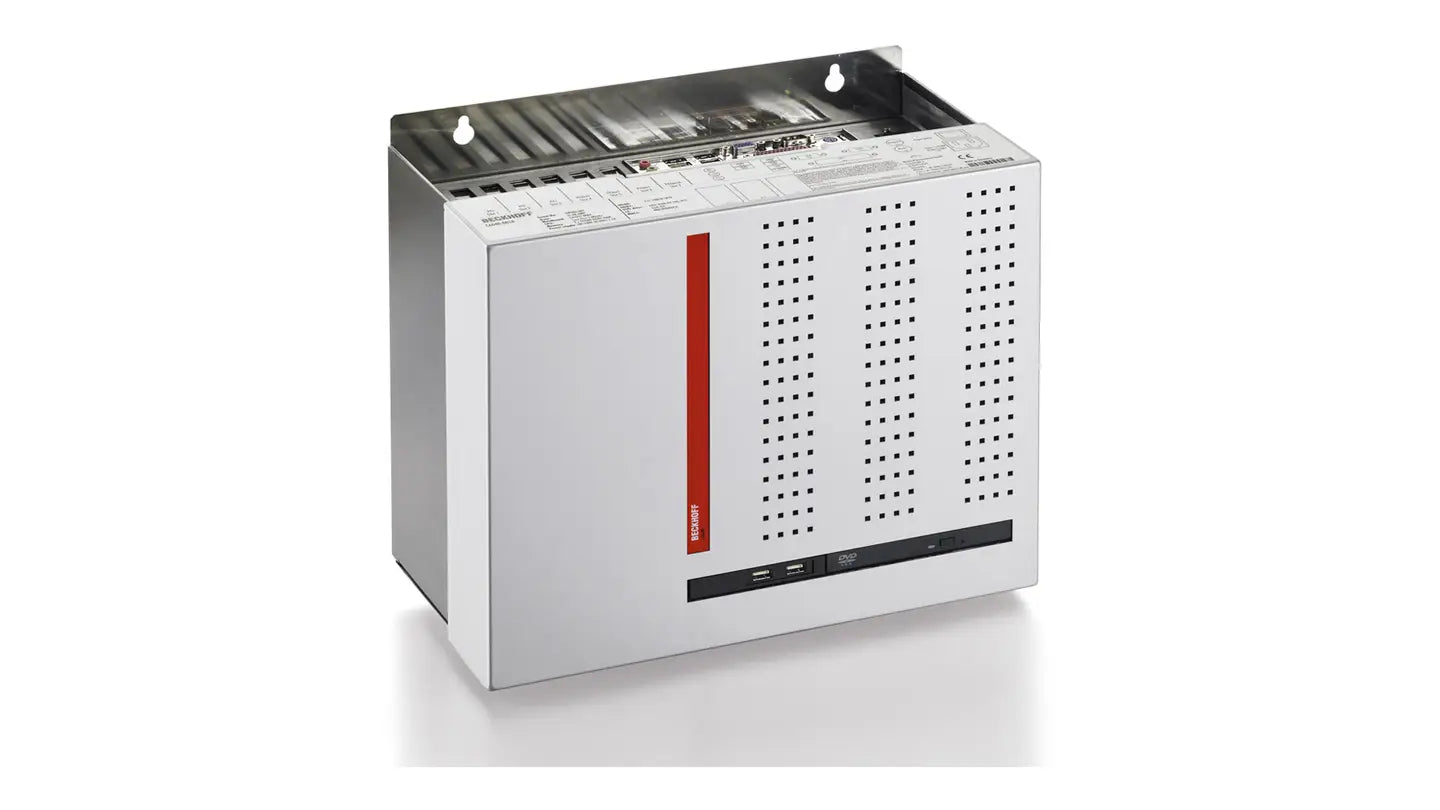

C6640-0050 | Beckhoff Control Cabinet Industrial PC ATX-Based High Performance
- Regular price
- $4,192.00
- Sale price
- $4,192.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C6640-0050
Description
The Beckhoff C6640-0050 is a compact control cabinet Industrial PC designed for high-performance automation and control applications. Built on an ATX motherboard, it supports Intel® Celeron®, Pentium®, and Core™ processors to deliver scalable computing power in industrial environments. The C6640-0050 combines robust construction with flexible expansion for long-term use in control cabinets.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | C6640-0050 |
| Subcategory | Control Cabinet Industrial PCs |
| Device Type | Control cabinet PC |
| Housing Material | Stainless steel–based housing |
| Protection Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Processor | Intel® Celeron® G3900, 2.8 GHz, 2 cores |
| Motherboard | ATX motherboard |
| Memory Installed | 4 GB DDR4 RAM |
| Maximum Memory | Up to 64 GB DDR4 RAM |
| Graphics | Integrated in processor |
| Ethernet Interfaces | 2 × 10/100/1000BASE-T on-board |
| Expansion Slots | PCIe x1, PCIe x4, PCIe x16, PCI |
| Storage | 3.5-inch HDD, 1 TB (expandable) |
| RAID Support | On-board SATA RAID 1 controller |
| Interfaces | USB 3.0, DVI, DisplayPort, RS232, PS/2 |
| Power Supply | 100–240 V AC |
| Dimensions (W × H × D) | 371 × 336 × 198 mm |
| Weight | Approx. 11 kg |
Information About C6640-0050
The C6640-0050 is part of the Beckhoff C66xx series of Industrial PCs, developed for space-efficient installation and long service life in automation systems. It features a stainless steel–based housing with passive side walls, allowing installation directly alongside other control cabinet components. The system architecture supports modern Intel® processors and expandable memory, storage, and PCIe cards for evolving application requirements. With upward-facing connections and accessible internal components, the C6640-0050 simplifies wiring, maintenance, and future upgrades while ensuring reliable continuous operation.
Key Features:
- ATX-Based Industrial PC: Uses a full ATX motherboard for maximum performance and flexibility.
- Scalable Intel® Processor Support: Compatible with Intel® Celeron®, Pentium®, and Core™ i3/i5/i7 processors.
- Compact Control Cabinet Design: Optimized housing for dense installations in industrial enclosures.
- Extensive Expansion Capability: Supports PCIe and PCI slots for plug-in cards up to 210 mm in length.
- Integrated Graphics and Ethernet: On-board graphics and dual Ethernet interfaces without occupying slots.
- High Data Security Options: Supports RAID 1 configurations using M.2 SSDs or SATA drives.
- Flexible Storage Configurations: Accommodates HDDs, SSDs, and optional multi-DVD drives.
- Robust Industrial Housing: Stainless steel–based enclosure with IP20 protection rating.
- Flexible Power Supply Options: Available with 100–240 V AC or optional 24 V DC with UPS support.
The C6640-0050 delivers the reliability and precision required for industrial PC-based control, data processing, and automation cabinet applications.
Description
The Beckhoff C6640-0050 is a compact control cabinet Industrial PC designed for high-performance automation and control applications. Built on an ATX motherboard, it supports Intel® Celeron®, Pentium®, and Core™ processors to deliver scalable computing power in industrial environments. The C6640-0050 combines robust construction with flexible expansion for long-term use in control cabinets.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | C6640-0050 |
| Subcategory | Control Cabinet Industrial PCs |
| Device Type | Control cabinet PC |
| Housing Material | Stainless steel–based housing |
| Protection Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Processor | Intel® Celeron® G3900, 2.8 GHz, 2 cores |
| Motherboard | ATX motherboard |
| Memory Installed | 4 GB DDR4 RAM |
| Maximum Memory | Up to 64 GB DDR4 RAM |
| Graphics | Integrated in processor |
| Ethernet Interfaces | 2 × 10/100/1000BASE-T on-board |
| Expansion Slots | PCIe x1, PCIe x4, PCIe x16, PCI |
| Storage | 3.5-inch HDD, 1 TB (expandable) |
| RAID Support | On-board SATA RAID 1 controller |
| Interfaces | USB 3.0, DVI, DisplayPort, RS232, PS/2 |
| Power Supply | 100–240 V AC |
| Dimensions (W × H × D) | 371 × 336 × 198 mm |
| Weight | Approx. 11 kg |
Information About C6640-0050
The C6640-0050 is part of the Beckhoff C66xx series of Industrial PCs, developed for space-efficient installation and long service life in automation systems. It features a stainless steel–based housing with passive side walls, allowing installation directly alongside other control cabinet components. The system architecture supports modern Intel® processors and expandable memory, storage, and PCIe cards for evolving application requirements. With upward-facing connections and accessible internal components, the C6640-0050 simplifies wiring, maintenance, and future upgrades while ensuring reliable continuous operation.
Key Features:
- ATX-Based Industrial PC: Uses a full ATX motherboard for maximum performance and flexibility.
- Scalable Intel® Processor Support: Compatible with Intel® Celeron®, Pentium®, and Core™ i3/i5/i7 processors.
- Compact Control Cabinet Design: Optimized housing for dense installations in industrial enclosures.
- Extensive Expansion Capability: Supports PCIe and PCI slots for plug-in cards up to 210 mm in length.
- Integrated Graphics and Ethernet: On-board graphics and dual Ethernet interfaces without occupying slots.
- High Data Security Options: Supports RAID 1 configurations using M.2 SSDs or SATA drives.
- Flexible Storage Configurations: Accommodates HDDs, SSDs, and optional multi-DVD drives.
- Robust Industrial Housing: Stainless steel–based enclosure with IP20 protection rating.
- Flexible Power Supply Options: Available with 100–240 V AC or optional 24 V DC with UPS support.
The C6640-0050 delivers the reliability and precision required for industrial PC-based control, data processing, and automation cabinet applications.
