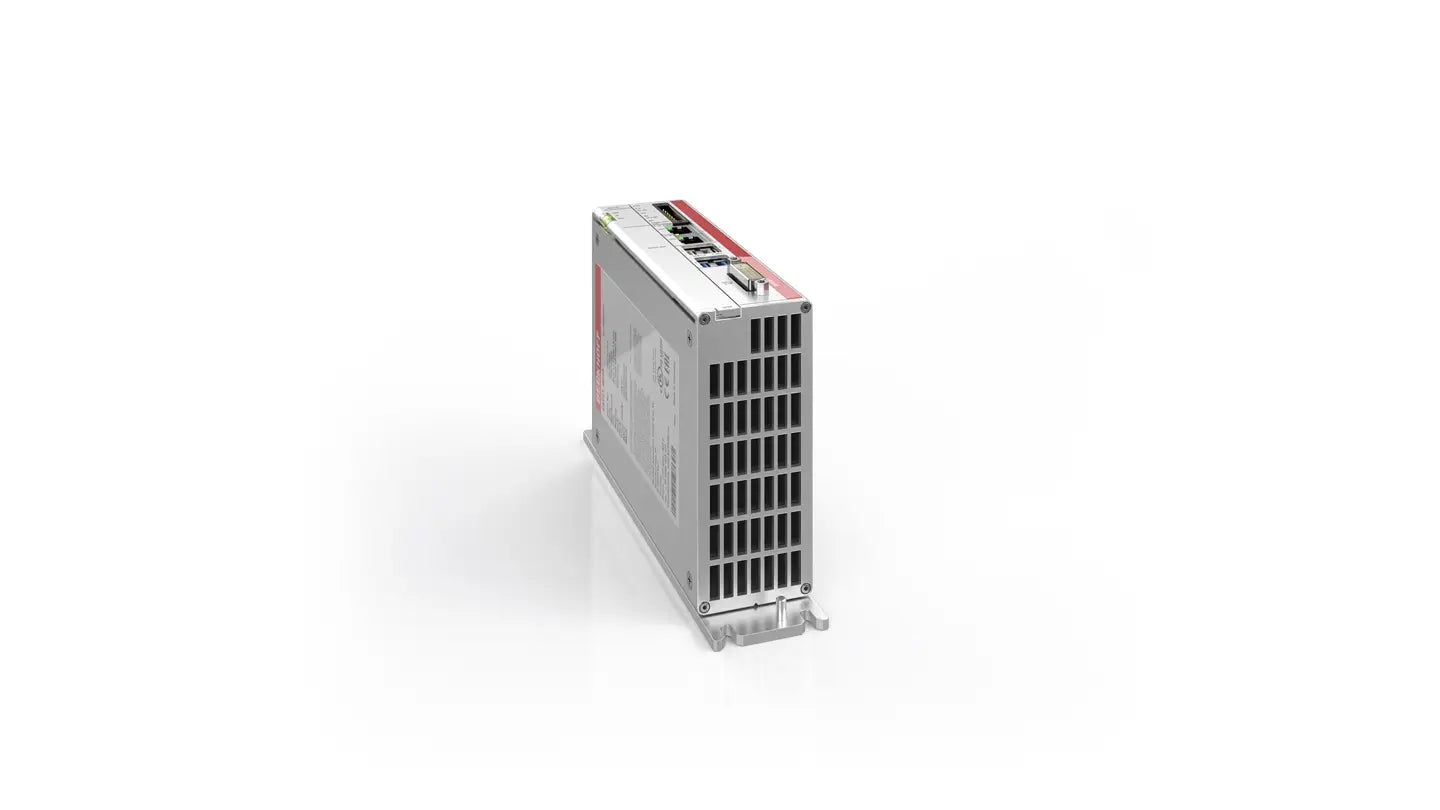

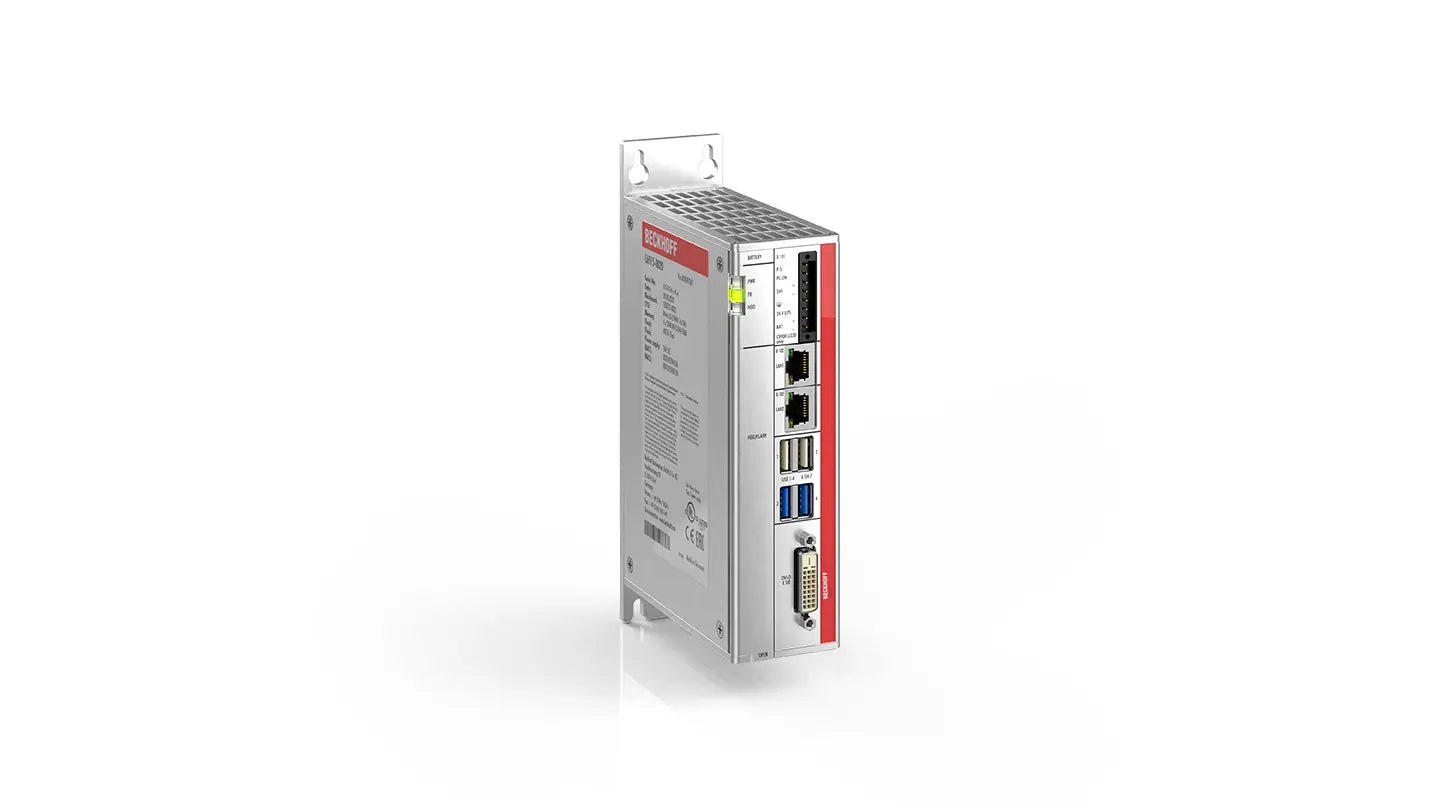

C6915-0010 | Beckhoff Fanless Industrial PC with Intelยฎ Atom E3815, 2 GB RAM
- Regular price
- $2,699.00
- Sale price
- $2,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C6915-0010
Descriptionย
The Beckhoff C6915-0010 is a fanless industrial PC designed for control cabinet installation, offering efficient performance and compact design. Equipped with an Intelยฎ Atomยฎ E3815 1.46 GHz processor, 2 GB DDR3L RAM, and 40 GB CFast storage, it provides reliable, maintenance-free operation for industrial control and automation tasks.
ย
Technical Specificationsย
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | C6915-0010 |
| Subcategory | Fanless Industrial PC |
| Device Type | Fanless control cabinet Industrial PC |
| Processor | Intelยฎ Atomยฎ E3815, 1.46 GHz, 1 core |
| Motherboard | 3ยฝ-inch motherboard for Intel Atomยฎ E38xx series |
| Memory (Standard) | 2 GB DDR3L RAM |
| Memory (Max) | Up to 8 GB DDR4 RAM ex factory |
| Storage (Standard) | 40 GB CFast card |
| Storage (Optional) | Up to 320 GB CFast, HDD, or SSD |
| Graphics | Integrated in processor |
| Ethernet Ports | 2 ร 100/1000BASE-T (on-board), 1 additional optional 100/1000BASE-T |
| Interfaces | 4 ร USB 2.0, 1 ร DVI |
| Slots for Flash/Drives | 1 or 2 CFast slots (depending on configuration) |
| Cooling System | Passive, fanless design |
| Free Air Space Required | 5 cm (2") above and below unit |
| Power Supply | 24 V DC |
| Protection Rating | IP20 |
| Installation Options | Mounting sheet for rear or right side wall |
| Operating Temperature | 0ยฐC to +55ยฐC |
| Storage Temperature | -25ยฐC to +85ยฐC |
| Relative Humidity | Up to 95%, non-condensing |
| Dimensions (W ร H ร D) | 48 ร 164 ร 119 mm (1.9" ร 6.5" ร 4.7") |
| Weight (Basic Configuration) | 2.8 lbs (approx. 1.25 kg) |
ย
Information About C6915-0010
The C6915-0010 is part of Beckhoffโs C69xx series of compact, fanless industrial PCs, purpose-built for demanding control and monitoring applications. Featuring an aluminum housing for superior heat dissipation and durability, it integrates an Intelยฎ Atomยฎ E3815 processor that ensures energy-efficient, low-heat operation in control cabinets. The system includes dual Gigabit Ethernet ports for network redundancy, 4 USB interfaces, and a DVI port for display connection. With flexible mounting options and maintenance-free passive cooling, the C6915-0010 is designed to perform reliably in continuous industrial use, supporting TwinCAT automation software and real-time control processes.
Key Features:
- Compact, Fanless Design: Optimized for control cabinet integration with no moving parts for maintenance-free operation.
- Intelยฎ Atomยฎ Processing: Efficient 1.46 GHz processor delivers solid performance for industrial automation tasks.
- Durable Aluminum Housing: Provides effective heat dissipation and mechanical protection under industrial conditions.
- Flexible Storage Options: Supplied with a 40 GB CFast card and expandable to SSD or HDD for greater capacity.
- Comprehensive Connectivity: Features 2 ร Gigabit Ethernet, 4 ร USB 2.0, and 1 ร DVI interface for communication and display.
- Passive Cooling System: Ensures silent and reliable operation without a fan, reducing energy consumption and wear.
- Easy Mounting Options: Can be installed via rear or side wall mounting plates, adapting to various cabinet layouts.
- Industrial-Grade Reliability: CE-compliant and rated for 0ยฐC to +55ยฐC operation, suitable for continuous 24/7 use.
The C6915-0010 delivers the reliability and precision required for automation control, process visualization, and industrial PC-based system management.
