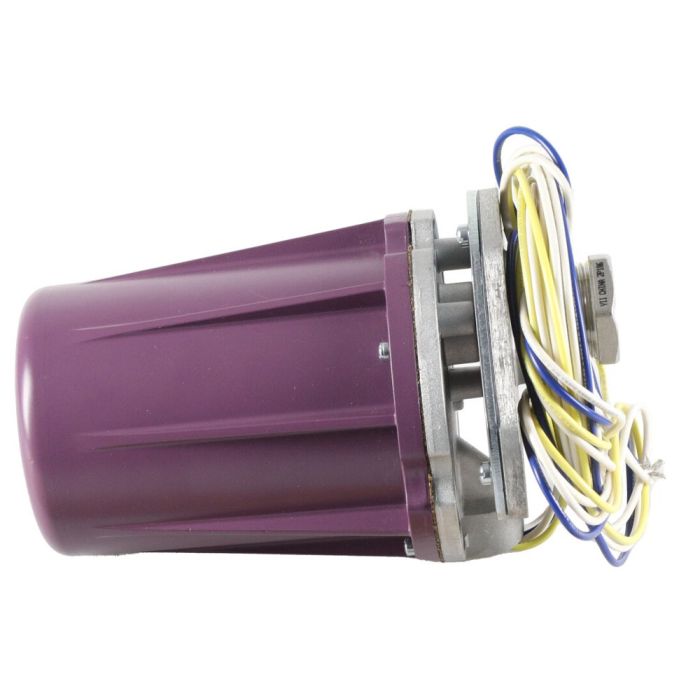

C7012A1145 | Honeywell Purple Peeper UV Flame Detector 120V
- Regular price
- $1,955.00
- Sale price
- $1,955.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C7012A1145
Description
The Honeywell C7012A1145 is a rugged ultraviolet (UV) flame detector designed for precise flame monitoring in industrial combustion systems. Known as the “Purple Peeper,” this detector operates on 120 VAC and offers reliable performance across a wide temperature range in both indoor and outdoor environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Flame Safety Products
|
| Part Number | C7012A1145 |
| Subcategory | UV Sensor |
| Operating Voltage | 120 VAC |
| Power Consumption | 2.5 watts max |
| Ambient Operating Temperature |
–20°F to 175°F (–29°C to 79°C) |
| Housing Material | Cast aluminum, violet finish |
| Enclosure Rating | NEMA 4 (rain-tight, dust-tight) |
| Mounting Type | 3/4 inch NPT internal thread (mounting flange) |
| Viewing Window | Quartz, 20 psi (138 kPa) pressure rating |
| Certifications | UL, CSA, FM |
| Weight | 6.27 lbs |
Information About C7012A1145
The C7012A1145 is part of Honeywell’s Purple Peeper series of flame sensors and is used to detect ultraviolet radiation emitted by flames. Housed in a cast aluminum body with a violet finish, it meets NEMA 4 standards for watertight and dust-tight enclosures. Designed for both new installations and retrofit applications, it includes a mounting flange with 3/4 inch NPT threading for connection to a sight pipe. The sensor supports continuous operation from –20°F to 175°F and consumes a maximum of 2.5 watts. It is certified for use in safety-critical burner and flame safeguard systems and meets UL, CSA, and FM approval standards.
Key Features:
- Ultraviolet Flame Detection: Senses UV radiation from open flame sources for reliable burner supervision.
- Wide Operating Voltage: Runs on standard 120 VAC control power, common in industrial systems.
- Low Power Consumption: Consumes only 2.5 watts, minimizing energy draw in continuous operation.
- Extreme Temperature Tolerance: Operates from –20°F to 175°F (–29°C to 79°C) for demanding environments.
- NEMA 4 Enclosure: Rated for rain-tight and dust-tight protection, suitable for indoor and outdoor installations.
- Durable Construction: Violet-colored cast aluminum housing offers strength and corrosion resistance.
- Quartz Viewing Window: Rated up to 20 psi (138 kPa) for safe monitoring through pressurized sight pipes.
- Flexible Mounting: Installs via 3/4 inch NPT internal threads using a standard mounting flange.
- Safety Certifications: UL Listed, CSA Certified, and FM Approved for flame safeguard applications.
- Application Ready: Designed for use in industrial burners, boilers, ovens, and furnaces.
The C7012A1145 provides dependable UV flame sensing for safety and control systems across a wide range of industrial combustion environments.
