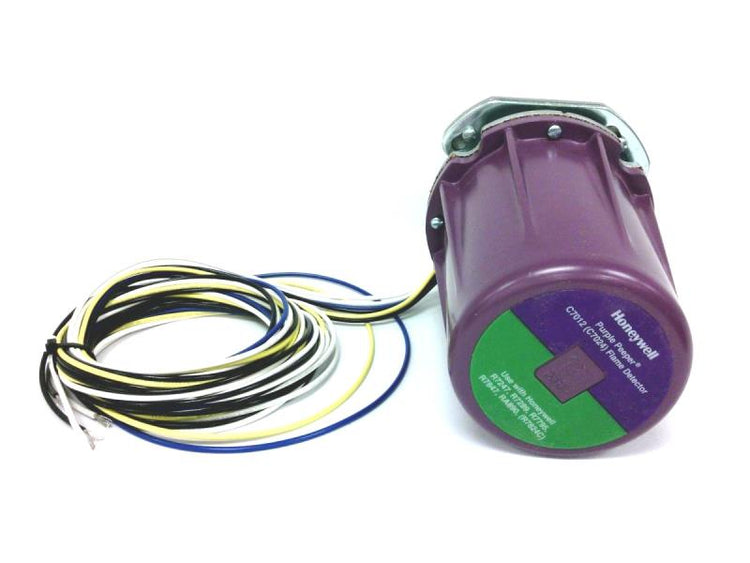

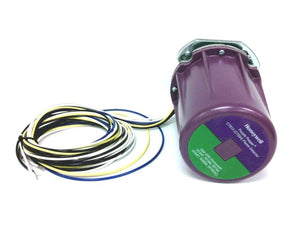

C7012E1104 | Honeywell UV Flame Detector
- Regular price
- $4,156.00
- Sale price
- $4,156.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C7012E1104
Description
The Honeywell C7012E1104 is a self-checking UV flame detector designed for use with gas, oil, or coal-fired burners. This detector features solid-state circuitry and operates at 120 VAC to provide reliable flame monitoring in industrial combustion systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Flame Safety
|
| Part Number | C7012E1104 |
| Subcategory | UV Flame Detectors |
| Series | C7012E – UV Purple Peeper |
| Voltage | 120 VAC |
| Frequency |
50/60 Hz |
| Power Consumption | 7.0 W |
| Mounting Thread | 3/4 in. NPT |
| Ambient Temp Range | -20°F to +175°F |
| Housing | Cast aluminum, NEMA 4 |
| Electrical Connection | 6 NEC Class 1 color-coded lead wires |
| Used With | R7247C, R7847C Flame Amplifiers |
| Dimensions | 5 1/4" diameter × 7 7/32" length |
| Weight | 1.9 kg |
Information About C7012E1104
The C7012E1104 is part of Honeywell’s C7012E Series of ultraviolet flame detectors, engineered for applications requiring continuous flame verification and high safety standards. This model features self-checking functionality that works with compatible flame safeguard controls to automatically verify detector health, reducing the need for manual testing. It operates at 120 VAC with a frequency of 50/60 Hz and consumes just 7.0 watts of power. Housed in a rugged cast aluminum enclosure with a NEMA 4 rating, the detector mounts via a 3/4-inch NPT threaded connection and is built to withstand harsh environments, with an ambient operating range from -20°F to +175°F. The unit comes equipped with six color-coded NEC Class 1 lead wires for easy electrical connection and integrates with Honeywell flame amplifiers such as the R7247C and R7847C.
Key Features:
- UV Flame Detection: Detects ultraviolet radiation emitted by combustion flames, ideal for gas, oil, or coal-fired systems.
- Self-Checking Feature: Continuously verifies system integrity, eliminating the need for periodic manual testing.
- Solid-State Electronics: Ensures reliable performance and extended product life in demanding environments.
- NEMA 4 Cast Housing: Weather-resistant design suitable for indoor and outdoor industrial settings.
- Simple Mounting: 3/4 in. NPT threaded connection for quick installation.
- Wide Operating Range: Tolerates ambient temperatures from -20°F to +175°F for flexible deployment.
- Electrical Compatibility: Works with R7247C and R7847C flame amplifiers, commonly used in Honeywell burner safety systems.
The C7012E1104 ensures safe and continuous flame detection with built-in diagnostics for high-reliability burner control.
