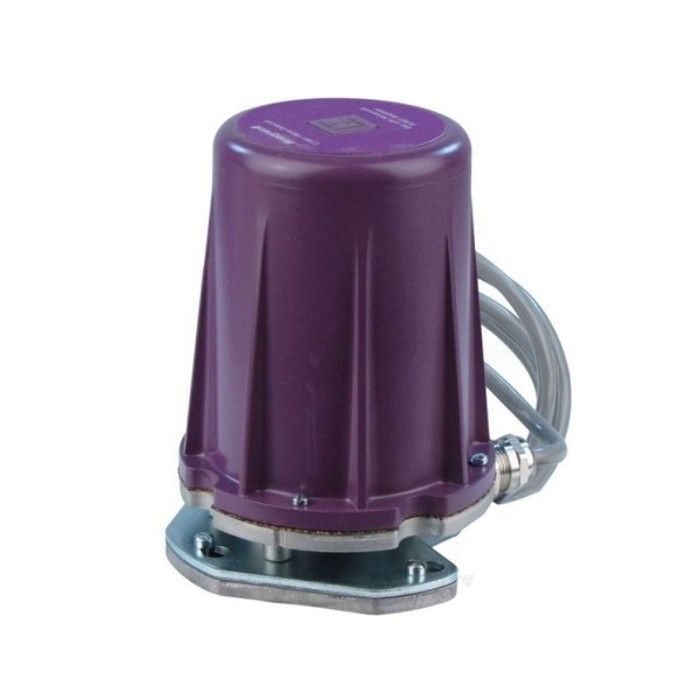

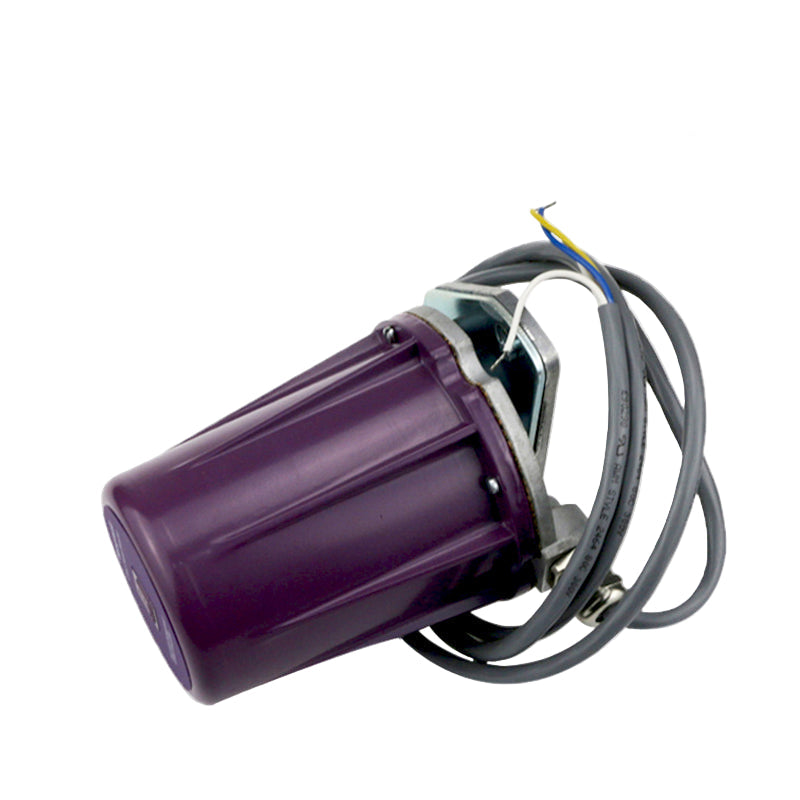

C7061A1038 | Honeywell Flame Detector 120VAC with Heat Block and 3/4" NPT Mount
- Regular price
- $3,425.00
- Sale price
- $3,425.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C7061A1038
Description
The Honeywell C7061A1038 Flame Detector is a high-sensitivity ultraviolet (UV) flame sensor designed for continuous monitoring of gas and oil flames in burner management systems. Operating on 120 VAC, it features a built-in heat block, durable housing, and a 3/4-inch NPT mount for reliable performance in industrial combustion applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Flame Detection |
| Part Number | C7061A1038 |
| Subcategory | Flame Detector |
| Type | Ultraviolet (UV) Flame Sensor |
| Power Supply | 120 VAC |
| Frequency | 50/60 Hz |
| Sensor Technology | UV Optical Detection |
| Mounting Type | 3/4" NPT Threaded Mount |
| Operating Temperature Range (°F) | -40°F to +175°F |
| Operating Temperature Range (°C) | -40°C to +79°C |
| Housing Material | Rugged Metal with Heat-Resistant Flange |
| Heat Block Feature | Integrated Thermal Isolation for Extended Life |
| Response Time | Fast-Acting UV Detection (Typical < 1 Second) |
| Viewing Window | Quartz Lens |
| Cable Entry | 3/4" NPT Conduit Connection |
| Electrical Connection | Screw Terminal Block or Plug Connector (Model-Dependent) |
| Application | Gas and Oil Flame Supervision in Burners and Furnaces |
| Compatibility | Works with Honeywell R7861, R7061, and Similar Amplifiers |
| Enclosure Rating | Industrial-Grade, Flameproof Housing |
| Approvals | UL, FM, CSA Recognized |
| Weight | 3.27 lbs |
Information About C7061A1038
The C7061A1038 is part of Honeywell’s advanced flame detection series, specifically designed for industrial combustion systems requiring precise flame monitoring. It employs UV sensing technology to detect the unique radiation emitted by gas and oil flames, providing fast and reliable flame presence feedback to burner control modules. The unit includes a built-in heat block within the mounting flange to protect internal components from excessive temperatures, extending operational life and reducing maintenance. With its 3/4-inch NPT threaded mount and durable housing, the detector ensures secure installation and consistent performance in harsh environments such as furnaces, boilers, and process burners.
Key Features:
- High-Sensitivity UV Detection: Provides accurate flame monitoring for gas and oil combustion applications.
- Integrated Heat Block: Protects sensor electronics from high temperatures, improving durability and operational stability.
- 120 VAC Operation: Compatible with standard industrial power supplies for flexible system integration.
- Rugged Construction: Built from heavy-duty materials to withstand vibration, heat, and industrial contaminants.
- Fast Response Time: Detects flame presence and absence rapidly for improved safety system responsiveness.
- 3/4-Inch NPT Mount: Ensures secure, standardized installation on burner housings and combustion chambers.
- Wide Temperature Range: Operates from -40°F to +175°F (-40°C to +79°C), suitable for extreme environments.
- System Compatibility: Designed for seamless integration with Honeywell burner management controls and amplifiers.
The C7061A1038 delivers the reliability and precision required for continuous flame detection, safety assurance, and efficient burner control in industrial heating systems.
Description
The Honeywell C7061A1038 Flame Detector is a high-sensitivity ultraviolet (UV) flame sensor designed for continuous monitoring of gas and oil flames in burner management systems. Operating on 120 VAC, it features a built-in heat block, durable housing, and a 3/4-inch NPT mount for reliable performance in industrial combustion applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Flame Detection |
| Part Number | C7061A1038 |
| Subcategory | Flame Detector |
| Type | Ultraviolet (UV) Flame Sensor |
| Power Supply | 120 VAC |
| Frequency | 50/60 Hz |
| Sensor Technology | UV Optical Detection |
| Mounting Type | 3/4" NPT Threaded Mount |
| Operating Temperature Range (°F) | -40°F to +175°F |
| Operating Temperature Range (°C) | -40°C to +79°C |
| Housing Material | Rugged Metal with Heat-Resistant Flange |
| Heat Block Feature | Integrated Thermal Isolation for Extended Life |
| Response Time | Fast-Acting UV Detection (Typical < 1 Second) |
| Viewing Window | Quartz Lens |
| Cable Entry | 3/4" NPT Conduit Connection |
| Electrical Connection | Screw Terminal Block or Plug Connector (Model-Dependent) |
| Application | Gas and Oil Flame Supervision in Burners and Furnaces |
| Compatibility | Works with Honeywell R7861, R7061, and Similar Amplifiers |
| Enclosure Rating | Industrial-Grade, Flameproof Housing |
| Approvals | UL, FM, CSA Recognized |
| Weight | 3.27 lbs |
Information About C7061A1038
The C7061A1038 is part of Honeywell’s advanced flame detection series, specifically designed for industrial combustion systems requiring precise flame monitoring. It employs UV sensing technology to detect the unique radiation emitted by gas and oil flames, providing fast and reliable flame presence feedback to burner control modules. The unit includes a built-in heat block within the mounting flange to protect internal components from excessive temperatures, extending operational life and reducing maintenance. With its 3/4-inch NPT threaded mount and durable housing, the detector ensures secure installation and consistent performance in harsh environments such as furnaces, boilers, and process burners.
Key Features:
- High-Sensitivity UV Detection: Provides accurate flame monitoring for gas and oil combustion applications.
- Integrated Heat Block: Protects sensor electronics from high temperatures, improving durability and operational stability.
- 120 VAC Operation: Compatible with standard industrial power supplies for flexible system integration.
- Rugged Construction: Built from heavy-duty materials to withstand vibration, heat, and industrial contaminants.
- Fast Response Time: Detects flame presence and absence rapidly for improved safety system responsiveness.
- 3/4-Inch NPT Mount: Ensures secure, standardized installation on burner housings and combustion chambers.
- Wide Temperature Range: Operates from -40°F to +175°F (-40°C to +79°C), suitable for extreme environments.
- System Compatibility: Designed for seamless integration with Honeywell burner management controls and amplifiers.
The C7061A1038 delivers the reliability and precision required for continuous flame detection, safety assurance, and efficient burner control in industrial heating systems.
