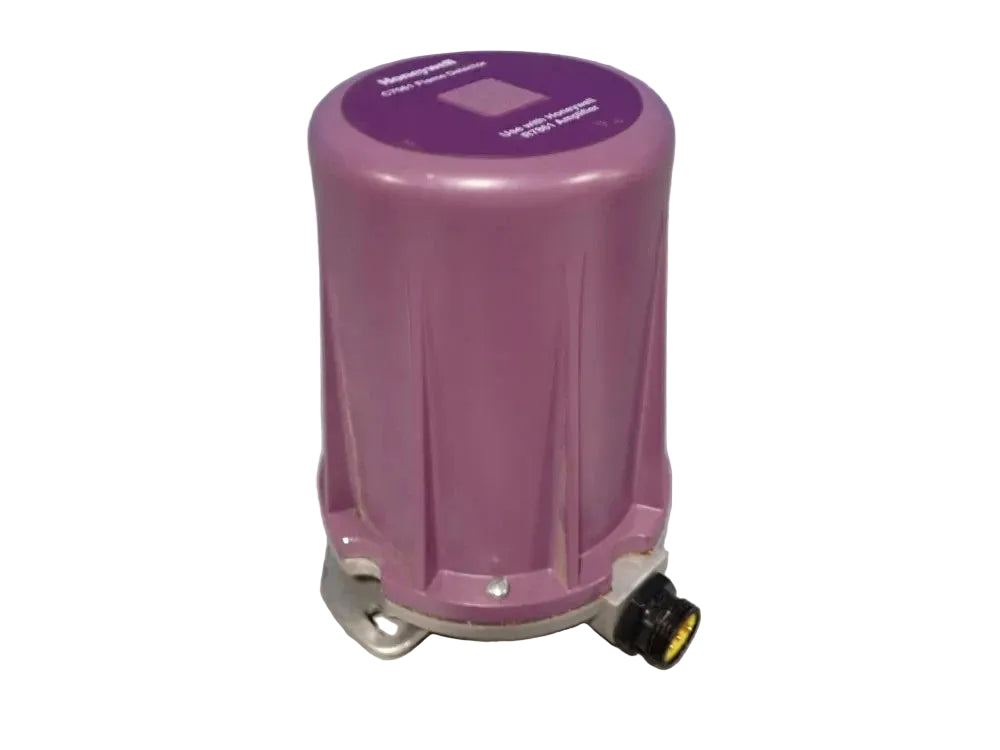

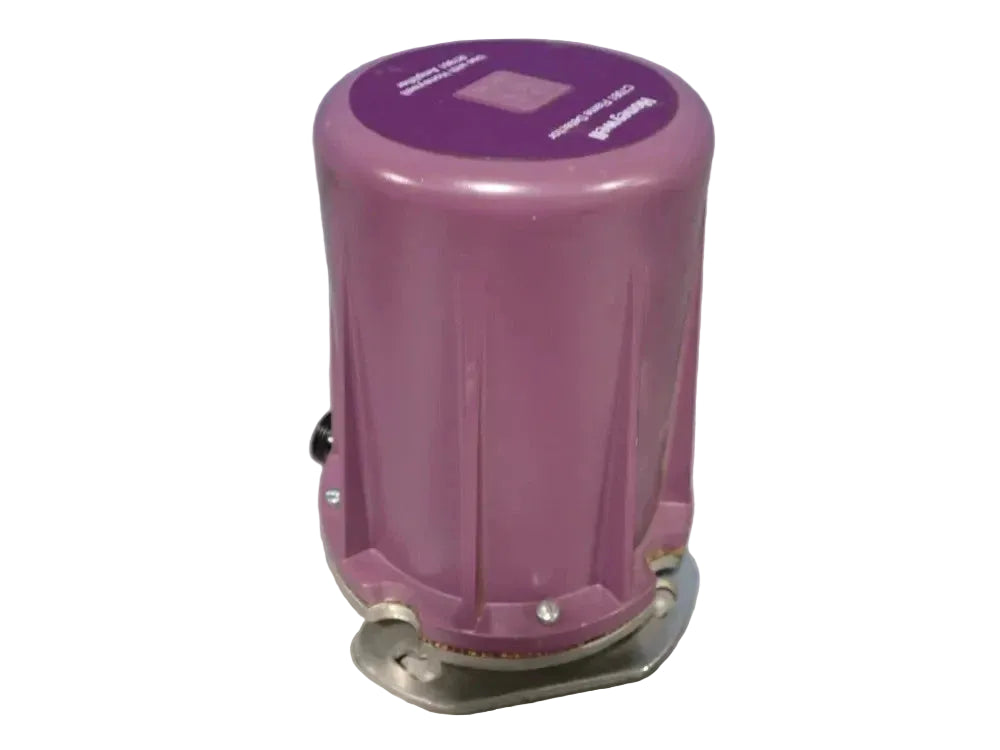

C7061A1046 | Honeywell Purple Peeper UV Flame Detector 115/230V
- Regular price
- $1,044.05
- Sale price
- $1,044.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C7061A1046
Description
The Honeywell C7061A1046 is a Purple Peeper ultraviolet flame detector designed for reliable flame supervision in industrial burner and combustion systems. It uses an oscillating shutter mechanism to continuously verify sensor operation and ensure safe, dependable flame detection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Combustion Control |
| Part Number | C7061A1046 |
| Subcategory | Flame Detectors |
| Detector Type | Ultraviolet (UV) Flame Detector |
| Series | Purple Peeper |
| Supply Voltage | 115 / 230 VAC |
| Minimum Operating Temperature | -40 °F |
| Maximum Operating Temperature | 175 °F |
| Mounting Orientation | Vertical, Horizontal, or Any Angle |
| UV Sensor Tube | Field-Replaceable |
| Viewing Window Material | Quartz |
| Shutter Type | Oscillating Self-Checking Shutter |
| Ingress Protection Rating | IP66 |
| Viewing Window Pressure Rating | Up to 20 psi |
| Parallel Operation Capability | Yes (Two Detectors) |
| Protective Features | Integral Heat Block in Mounting Flange |
| Weight | 2.6 lbs |
Information About C7061A1046
The C7061A1046 is part of Honeywell’s Purple Peeper flame detection family, which is widely used in commercial and industrial combustion safety systems. This detector incorporates an oscillating shutter that periodically interrupts ultraviolet radiation, allowing continuous verification of the UV sensing tube’s functionality. It supports flexible mounting orientations and includes alignment reference points on the faceplate to ensure correct shutter operation during installation. The unit is designed for harsh environments with a rugged housing, built-in heat protection, and an IP66-rated enclosure.
Key Features
- Self-Checking UV Detection System: Oscillating shutter continuously interrupts UV radiation to verify proper sensor tube operation and enhance safety.
- Flexible Mounting Options: Can be installed vertically, horizontally, or at any intermediate angle without affecting performance.
- Field-Replaceable Sensing Components: UV sensing tube and quartz viewing window can be replaced in the field to simplify maintenance.
- Parallel Detector Capability: Supports wiring two detectors in parallel to reduce nuisance shutdowns in challenging flame sighting conditions.
- Integrated Heat Protection: Built-in heat block within the mounting flange protects internal components from excessive thermal exposure.
- Wide Temperature Operating Range: Supplied with a -40 °F rated UV sensing tube for reliable operation in cold environments.
- Industrial-Grade Environmental Protection: IP66-rated enclosure with a viewing window rated up to 20 psi supports use in demanding combustion applications.
The C7061A1046 delivers the reliability and precision required for continuous flame supervision in industrial and commercial burner systems.
