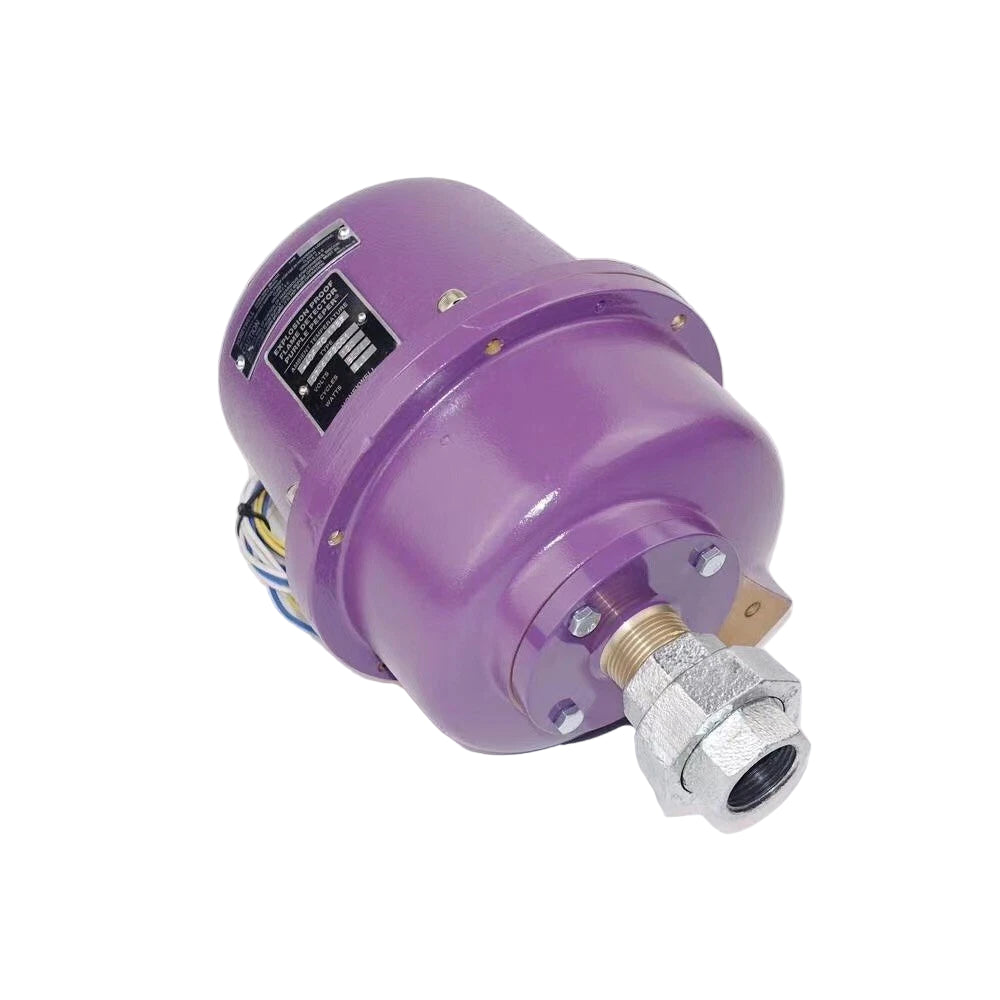

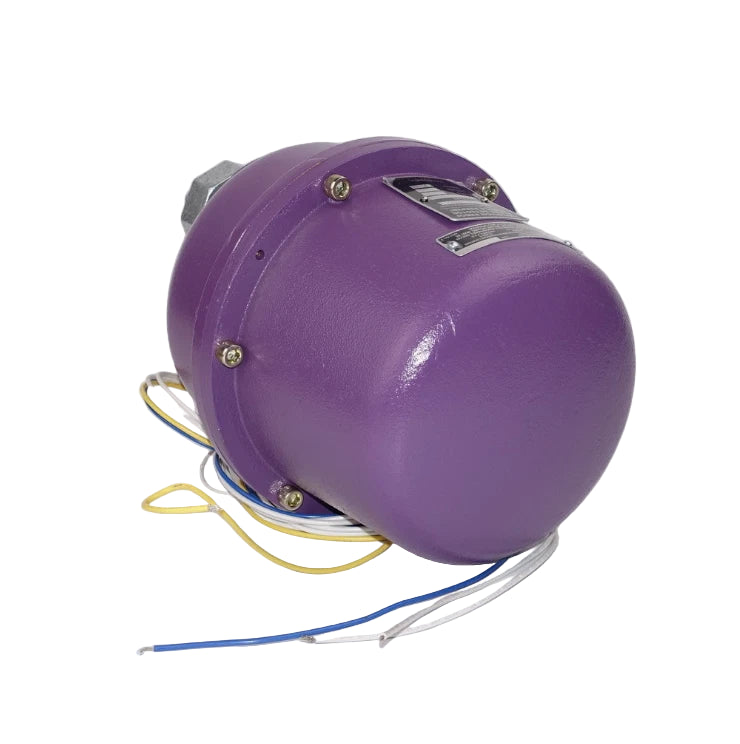

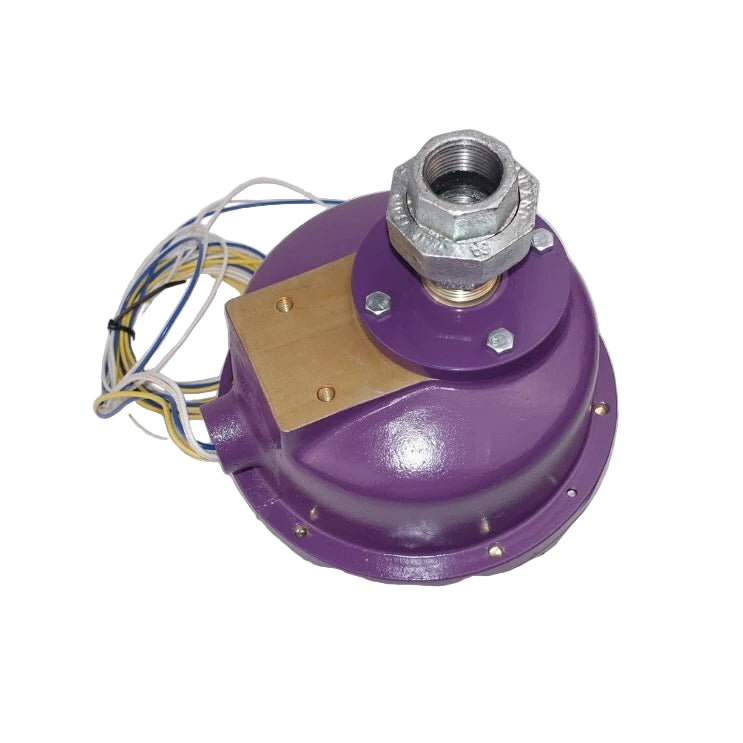

C7061F2001 | Honeywell Explosion-Proof Dynamic Self-Check UV Flame Detector 120VAC
- Regular price
- $3,199.00
- Sale price
- $3,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C7061F2001
Description
The Honeywell C7061F2001 is an explosion-proof ultraviolet flame detector designed for continuous monitoring of gas, oil, and multi-fuel combustion flames. Operating at 120VAC, it features dynamic self-checking capability, rugged NEMA 4 construction, and 96-inch color-coded lead wires for reliable and safe operation in hazardous industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Flame Detection & Combustion Controls |
| Part Number | C7061F2001 |
| Subcategory | UV Flame Detector |
| Type | Explosion-proof dynamic self-checking ultraviolet detector |
| Detection Method | Ultraviolet (UV) radiation sensing |
| Self-Checking Feature | Dynamic self-check (Purple Peeper design) |
| Operating Voltage | 120 VAC |
| Mounting Size | 3/4-inch NPT threaded mount |
| Lead Wire Length | 96 inches (color-coded for identification) |
| Environmental Rating | NEMA 4 (weatherproof and dust-tight) |
| Ambient Temperature Range | -40°F to +175°F (-40°C to +79°C) |
| Explosion-Proof Rating | Suitable for hazardous locations with flammable gases or vapors |
| Compatible Fuels | Gas, oil, and other industrial combustion fuels |
| Housing Material | Corrosion-resistant metal enclosure |
| Electrical Connection | Factory-installed lead wires |
| Response Time | Fast UV flame detection with continuous signal monitoring |
| Applications | Industrial burners, boilers, furnaces, and process heaters |
| Certifications | UL Listed, FM Approved |
| Country of Origin | USA |
| Weight | 7.87 lbs |
Information About C7061F2001
The Honeywell C7061F2001 is part of the Honeywell Purple Peeper series, designed for use in industrial combustion systems where reliability and safety are critical. It detects ultraviolet radiation emitted by gas or oil flames and continuously performs dynamic self-checks to ensure operational integrity. This feature automatically verifies the optical and electronic components to prevent unsafe conditions caused by sensor failure. The unit’s explosion-proof construction and NEMA 4 enclosure make it ideal for hazardous and outdoor environments, providing protection against dust, moisture, and ignition sources. With a wide temperature operating range and durable 96-inch leads, the C7061F2001 is well suited for harsh industrial installations requiring dependable flame detection performance.
Key Features
- Dynamic Self-Checking System: Continuously verifies detector functionality to maintain operational safety and prevent false readings.
- Explosion-Proof Design: Built for hazardous industrial environments with flammable gases or vapors.
- Ultraviolet Flame Sensing: Rapid detection of UV radiation from combustion flames for precise monitoring.
- NEMA 4 Enclosure: Weatherproof and dust-tight housing ensures long-lasting performance in harsh conditions.
- Wide Temperature Range: Operates reliably from -40°F to 175°F, suitable for extreme environments.
- Versatile Fuel Compatibility: Monitors combustion of natural gas, oil, and mixed-fuel systems.
- Easy Installation: Features a 3/4-inch NPT mount and 96-inch color-coded leads for flexible wiring.
- UL and FM Certified: Meets industry safety standards for industrial burner management systems.
The C7061F2001 delivers the reliability and precision required for demanding combustion applications, combining rugged design with continuous self-checking and explosion-proof protection.
