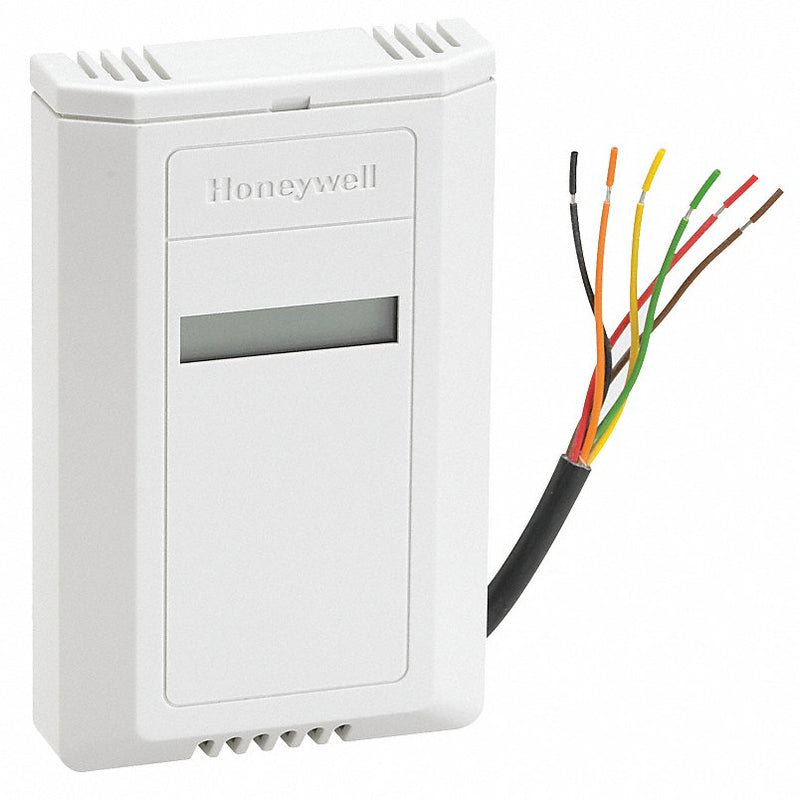

C7232A1008 | Honeywell Carbon Dioxide Sensor With LCD Display
- Regular price
- $497.00
- Sale price
- $497.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C7232A1008
Description
The C7232A1008 is a wall-mounted CO₂ sensor designed for use in HVAC systems and building automation applications. It monitors carbon dioxide concentration using non-dispersive infrared (NDIR) technology and provides both analog and relay outputs for integration with ventilation control strategies.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Sensors & Switches
|
| Part Number | C7232A1008 |
| Subcategory | CO2 Sensor |
| Sensor Technology | Non-dispersive infrared (NDIR) |
| Output Type | 0/2–10 VDC, 0/4–20 mA (jumper-selectable) |
| Relay Output | SPST, closes at 800 ppm (selectable), 1A @ 24 VDC/50 VAC |
| Supply Voltage | 24 VAC ±20%, 50/60 Hz; 24 VDC ±20% |
| Measurement Range | 0–2000 ppm CO₂ ±5% or ±50 ppm |
| Accuracy | ±30 ppm + 2% of reading |
| Calibration Interval | 5 years |
| Response Time | 2 minutes |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Operating Humidity | 0% to 95% RH non-condensing |
| Mounting Type | Wall mount (standard) or duct mount (optional) |
| Enclosure Rating | NEMA 1 (wall), NEMA 3 (duct); UL 95-5V flammability |
| Display | Optional 4-digit LCD |
| Wiring Terminations | 20 AWG cable (8" and 6" lengths) |
| Approvals | UL File #E4436, CE |
| Weight | 0.18 lbs |
Information About C7232A1008
The C7232A1008 is a Honeywell CO₂ sensor built for indoor air quality management through precise monitoring of carbon dioxide levels. It utilizes gold-plated NDIR technology for accurate and long-term sensing stability and includes selectable voltage or current outputs to match a variety of control systems. Featuring an SPST relay output and optional LCD, the sensor can activate ventilation equipment when CO₂ levels exceed a user-defined threshold. This model supports both wall and duct mounting (NEMA 1 and NEMA 3 enclosures respectively) and is suitable for integration into HVAC or building automation systems.
Key Features:
- NDIR CO₂ Measurement: Uses non-dispersive infrared technology for precise gas sensing.
- Long-Term Calibration Stability: Gold-plated sensor construction ensures minimal drift over time.
- Output Flexibility: Selectable 0/2–10 VDC or 0/4–20 mA analog signal outputs.
- Relay Activation: SPST relay output closes at 800 ppm CO₂ (adjustable), ideal for DCV systems.
- LCD Display Option: 4-digit display provides real-time CO₂ level and system status.
- Automatic Background Calibration: ABC algorithm minimizes zero-drift maintenance needs.
- Wide Measurement Range: Detects CO₂ concentrations from 0 to 2000 ppm.
- Fast Response Time: Measures changes in CO₂ within 2 minutes.
- Rugged Enclosure: Rated NEMA 1 for wall mount and NEMA 3 for duct mount; UL 95-5V flammability rating.
- Reliable in Harsh Conditions: Operates from 0–50°C and 0–95% RH non-condensing.
The C7232A1008 delivers the precision, durability, and adaptability needed for indoor environmental monitoring in HVAC control systems.
