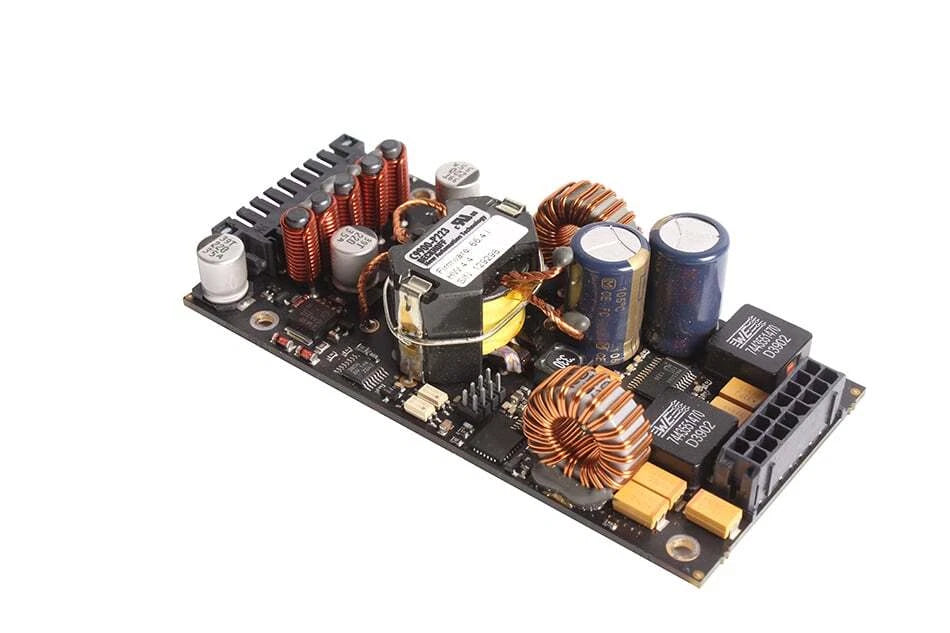

C9900-P223 | Beckhoff Industrial DC Power Supply 22–30 VDC Input 150 W Output
- Regular price
- $652.00
- Sale price
- $652.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C9900-P223
Description
The Beckhoff C9900-P223 is a compact DC power supply unit designed to deliver stable low-voltage outputs from a 22–30 VDC input. With a maximum power output of 150 W, it ensures reliable power delivery for electronic and control systems in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Power Supplies |
| Part Number | C9900-P223 |
| Subcategory | DC Power Supply Units |
| Input Voltage | 22–30 VDC, 15 A |
| Output Voltage | 5–12 V |
| Output Current | Up to 20 A |
| Maximum Power Output | 150 W (depending on cooling) |
| Connectors | 1× 16-pin male, 1× 8-pin male |
| Dimensions | 50 × 25 × 104 mm |
| Weight | 0.24 lbs (120 g) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to +65°C |
| Humidity | Up to 95% RH, non-condensing |
| Vibration Resistance | 10–58 Hz: 0.035 mm; 58–500 Hz: 0.5 G |
| Shock Resistance | 5 G (30 ms) |
Information About C9900-P223
The C9900-P223 is part of Beckhoff’s industrial power supply solutions, built for consistent performance in automation and control environments. It accepts 22–30 VDC input at up to 15 A and delivers regulated outputs between 5 and 12 V with a maximum load capacity of 20 A. Compact in design, it measures 50 × 25 × 104 mm and weighs only 120 g (0.24 lbs), making it suitable for installations where space is limited. It withstands ambient operating temperatures of 0°C to 55°C and humidity up to 95% non-condensing, while also meeting EMC compliance standards for resistance and emission of interference. Designed with both a 16-pin and an 8-pin male connector, it supports flexible system integration in demanding industrial environments.
Key Features:
-
Wide DC input range: Operates from 22–30 VDC at up to 15 A for compatibility with standard industrial power supplies.
-
High-capacity output: Provides up to 150 W of power, with regulated output between 5 and 12 V and maximum current of 20 A.
-
Compact dimensions: Slim form factor (50 × 25 × 104 mm) enables easy installation in confined panels or enclosures.
-
Industrial durability: Engineered to withstand vibrations (up to 0.5 G) and shocks up to 5 G for 30 ms.
-
Environmental resilience: Operates in temperatures from 0°C to 55°C and stores safely between -20°C and +65°C.
-
High humidity tolerance: Performs reliably at up to 95% relative humidity (non-condensing).
-
Certified EMC compliance: Meets EN 61000-6-2 and EN 61000-6-4 standards for interference resistance and emissions.
-
Versatile connectors: Equipped with 1× 16-pin and 1× 8-pin male connectors for flexible integration.
The Beckhoff C9900-P223 delivers the reliability and stability required for powering industrial automation and control systems under demanding conditions.
