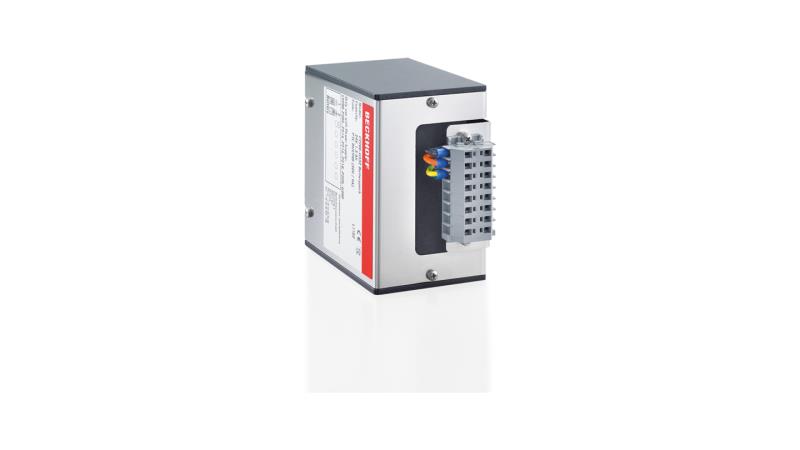

C9900-U332-0010 | Beckhoff Battery Pack 24 V 1.2 Ah for UPS Power Supply DIN-Rail Mount
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: C9900-U332-0010
Description
The Beckhoff C9900-U332-0010 is an external 24 V battery pack designed for use with Industrial PCs featuring an integrated UPS power supply. With a rated capacity of 1.2 Ah, it provides backup power to ensure controlled system shutdowns and data protection during mains failures, supporting DIN-rail mounting in both vertical and horizontal orientations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | C9900-U332-0010 |
| Subcategory | Battery Pack |
| Function | External UPS energy storage unit for 24 V power supplies |
| Compatible Systems | Industrial PCs with integrated UPS (e.g., C9900-U209, ATPCS with Intel® Celeron ULV 827E or Intel® Atom®) |
| Nominal Voltage | 24 V DC |
| Nominal Capacity | 1.2 Ah (20 h discharge) |
| Internal Structure | Two 12 V batteries connected in series |
| Fuse | 9 A PTC element (resettable protection) |
| Mounting Type | DIN-rail TS35x15 (2.3) |
| Mounting Orientation | Vertical or horizontal |
| Housing Material | Metal |
| Power Supply Connection | Via 24 V UPS interface |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Protection Class | IP20 |
| Maintenance | Maintenance-free design |
| Application | Backup energy storage for safe shutdown of IPCs |
| Dimensions (W × H × D) | 68.7 × 106.6 × 143.8 mm |
| Weight | 2.1 kg |
Information About C9900-U332-0010
The Beckhoff C9900-U332-0010 battery pack is a compact, maintenance-free energy storage unit designed to complement Beckhoff Industrial PCs equipped with a 24 V integrated UPS power supply. It ensures continuous power delivery during brief outages, allowing the connected PC to save system data and perform an orderly shutdown to prevent data loss or corruption. The internal design features two 12 V batteries connected in series to deliver a stable 24 V output with a capacity of 1.2 Ah. Its robust metal housing supports DIN-rail mounting and can be installed either vertically or horizontally to fit various cabinet layouts. Built for industrial reliability, the battery pack is suited for control systems and automation environments requiring uninterruptible operation and power protection.
Key Features:
- Dedicated UPS Battery Pack: Designed for use with Beckhoff Industrial PCs featuring an integrated UPS system for safe data backup and shutdown.
- 24 V Output Voltage: Provides stable power continuity for automation and control systems during power interruptions.
- 1.2 Ah Energy Capacity: Supplies sufficient backup power for short-duration outages, allowing critical operations to complete safely.
- Robust Construction: Metal housing ensures mechanical durability and effective heat dissipation during operation.
- DIN-Rail Mountable: Supports easy installation on standard TS35 rails with flexible horizontal or vertical alignment.
- Maintenance-Free Operation: Utilizes sealed, rechargeable cells requiring no routine servicing or electrolyte maintenance.
- Integrated Protection Circuit: Features a 9 A PTC fuse for overcurrent protection and safe power delivery.
- Optimized for Beckhoff PCs: Fully compatible with systems such as C9900-U209 UPS modules or ATPCS configurations using Intel® processors.
- Industrial Temperature Range: Operates reliably between 0°C and +50°C for control cabinet and industrial field use.
- Compact and Lightweight: Slim 68.7 mm width and 2.1 kg weight make it suitable for space-constrained automation systems.
The C9900-U332-0010 delivers the reliability and performance required for industrial UPS applications, ensuring continuous protection of Beckhoff Industrial PCs and automation processes.
