CA-DBW12W | Keyence White LED Bar Light, 120 mm, 12 VDC, 13.8 W
- Regular price
- $987.00
- Sale price
- $987.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: CA-DBW12W
Description

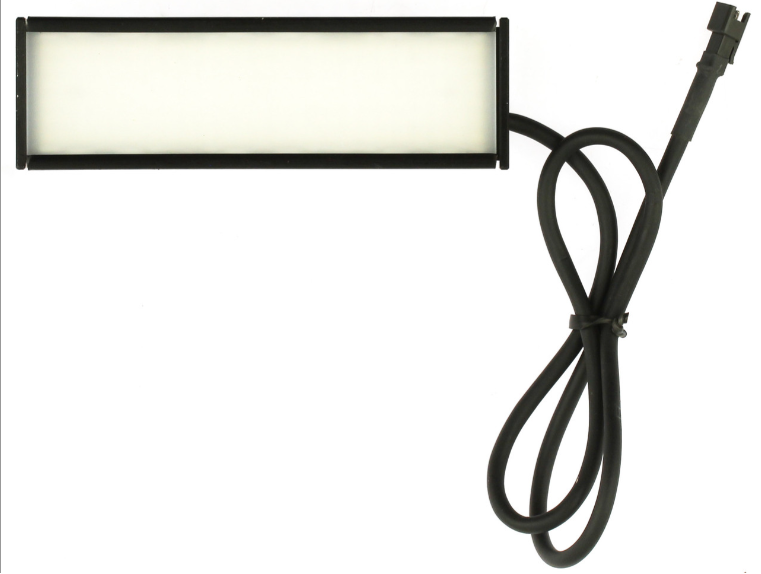

The Keyence CA-DBW12W is a high-intensity white bar light designed for uniform illumination in machine vision and inspection applications. With a 120 mm length and 13.8 W power consumption, it delivers stable brightness ideal for detecting surface variations and enhancing image contrast in automated systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Lighting |
| Part Number | CA-DBW12W |
| Subcategory | Lighting Fixture |
| Type | Bar Light |
| LED Color | White |
| Length | 120 mm |
| Diffusion Plate | Included (thickness approx. 2 mm / 0.08") |
| Polarizing Diffusion Plate | Compatible with OP-87975 |
| Power Consumption | 13.8 W |
| Input Voltage | 12 VDC |
| Mounting Orientation | Multi-directional, surface or bracket mount |
| Material | Aluminum body with optical diffusion panel |
| Cooling Method | Passive air-cooled |
| Lifetime | 20,000+ hours typical (at rated current) |
| Operating Temperature | 0 to +40 °C (no condensation) |
| Storage Temperature | -10 to +60 °C |
| Operating Humidity | 35 to 85 % RH (non-condensing) |
| Protection Rating | Standard indoor type (non-waterproof) |
| Weight | Approx. 195 g |
Information About CA-DBW12W
The CA-DBW12W belongs to Keyence’s CA-DBW series of bar lights, known for precise illumination control and high-quality light distribution. It uses high-efficiency white LEDs and includes a diffusion plate approximately 2 mm (0.08") thick to ensure even light output without glare. Operating at 12 VDC, this compact lighting module supports flexible mounting orientations, making it ideal for line-scan cameras, object recognition, and appearance inspection setups. The unit is compatible with Keyence’s optional OP-87975 polarizing diffusion plate, expanding its adaptability for reflective target applications.
Key Features:
- High-Intensity Illumination: Provides bright, even white LED lighting for inspection and vision systems.
- Compact 120 mm Design: Slim profile enables installation in tight or multi-axis inspection environments.
- Integrated Diffusion Plate: Ensures soft and uniform light distribution for accurate image capture.
- Energy Efficient: Operates at 13.8 W, minimizing power consumption without compromising brightness.
- Stable 12 VDC Input: Designed for reliable integration with machine vision controllers and LED drivers.
- Optional Polarizing Plate: Compatible with OP-87975, reducing glare on reflective surfaces.
- Durable Construction: Engineered for long operating life under continuous industrial use.
- Easy Mounting Options: Supports multiple installation orientations for maximum lighting flexibility.
- Consistent Color Output: Delivers stable white illumination for repeatable inspection results.
The CA-DBW12W delivers the consistent, high-quality lighting required for precision visual inspection, automation, and quality assurance applications.
