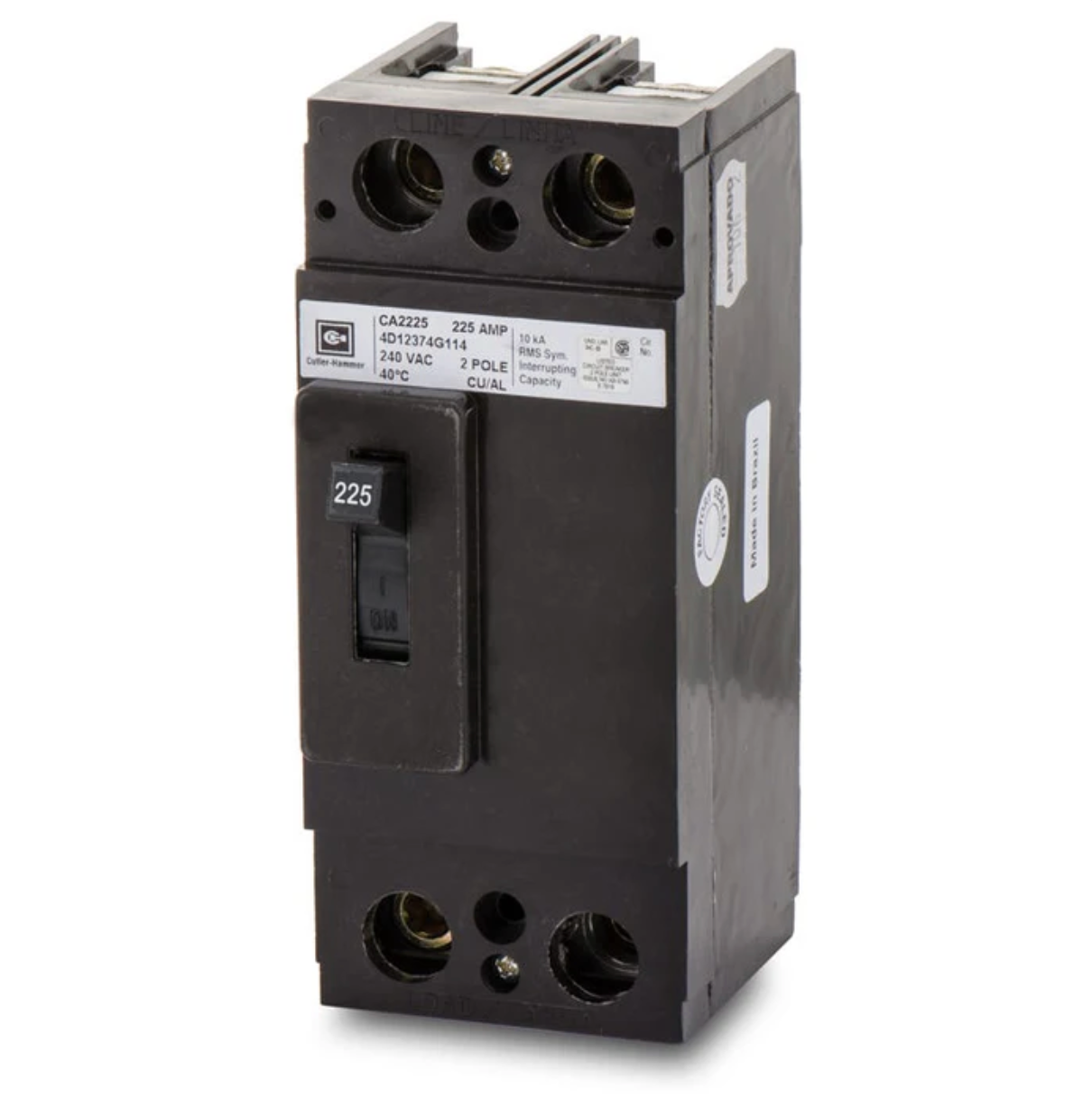

CA2225 | Eaton Cutler-Hammer 225A 2-Pole 240V Molded Case Circuit Breaker
- Regular price
- $1,825.00
- Sale price
- $1,825.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CA2225
Description
The Eaton Cutler-Hammer CA2225 is a 2-pole molded case circuit breaker engineered for precise and dependable overcurrent protection in electrical distribution systems. With a 225-amp current rating and 240 VAC voltage capacity, this breaker ensures reliable operation across demanding single-phase applications. Designed with thermal magnetic trip technology, the CA2225 provides consistent circuit protection and performance in industrial and commercial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton / Cutler-Hammer |
| Category | Circuit Breakers |
| Part Number | CA2225 |
| Subcategory | Molded Case Circuit Breakers |
| Series | AB DE-ION |
| Frame Type | CA |
| Amperage Rating | 225 A |
| Voltage Rating | 240 VAC |
| Number of Poles | 2 |
| Phase | Single |
| Interrupting Rating | 10 kAIC @ 240 VAC |
| Trip Function | LI – Long-Time and Instantaneous |
| Protection Type | Thermal Magnetic |
| Connection Type | Feed-Thru |
| Terminal Type | Line and Load Side Lugs |
| Operating Temperature | 40°C |
| Approvals | UL, CSA |
| Mounting Type | Panel Mount |
| Frequency Rating | 50/60 Hz |
| Weight | 0.45 kg |
Information About CA2225
The CA2225 is part of Eaton’s AB DE-ION Series, featuring a CA-frame molded case design for compact and durable circuit protection. It utilizes thermal magnetic trip technology with long-time and instantaneous (LI) functions for safeguarding against overloads and short circuits. This 2-pole breaker supports feed-thru connections, making it adaptable for a variety of panel and distribution installations. UL and CSA approvals ensure compliance with industry safety standards, providing a reliable choice for power management systems.
Key Features:
- High Current Capacity: Rated at 225 amps for high-load single-phase applications.
- Voltage Rating: Supports up to 240 VAC for standard power distribution systems.
- Interrupting Capacity: 10 kAIC at 240V for secure short-circuit interruption.
- Trip Function: Thermal magnetic LI trip (Long-Time and Instantaneous) for dependable protection.
- Connection Type: Feed-thru terminals for efficient wiring and installation.
- Certifications: UL Listed and CSA Approved for compliance and safety assurance.
- Operating Temperature: Rated for continuous performance at 40°C.
- Construction: Compact CA frame design for space-constrained installations.
The CA2225 delivers the reliability and precision required for stable and safe electrical circuit protection in industrial and commercial systems.
