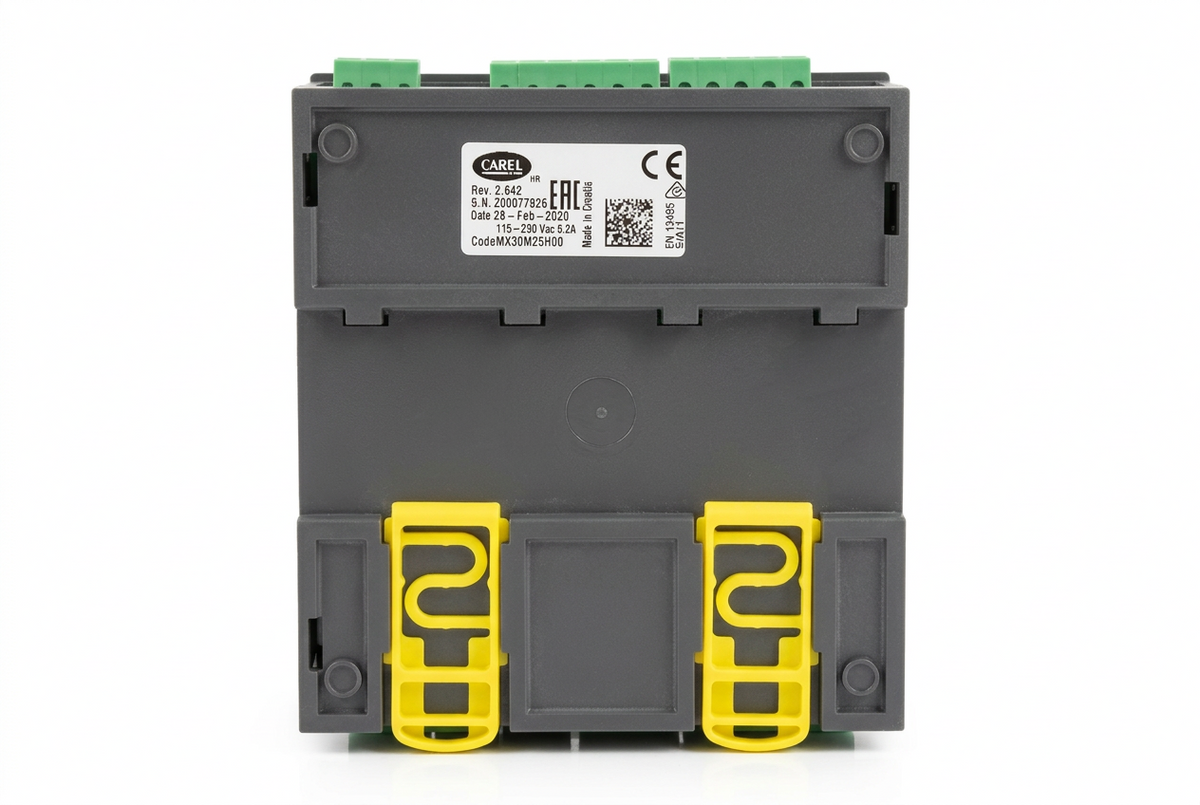

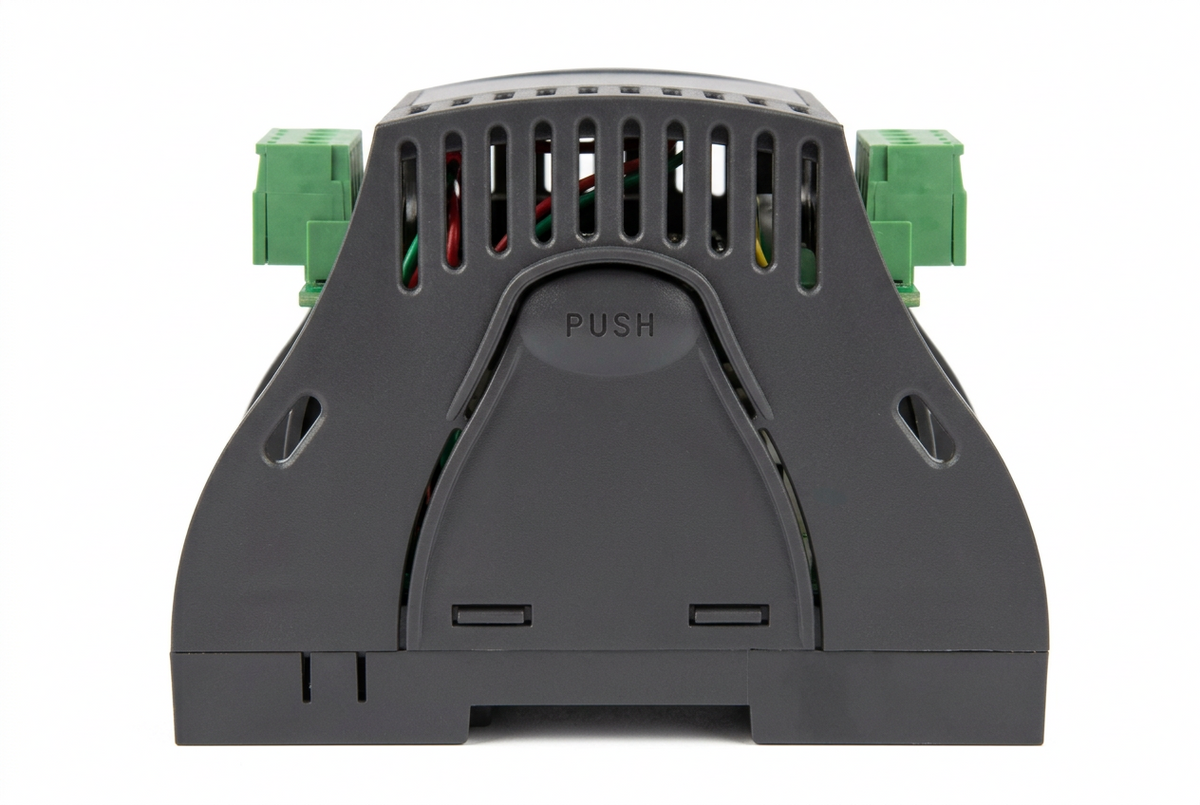

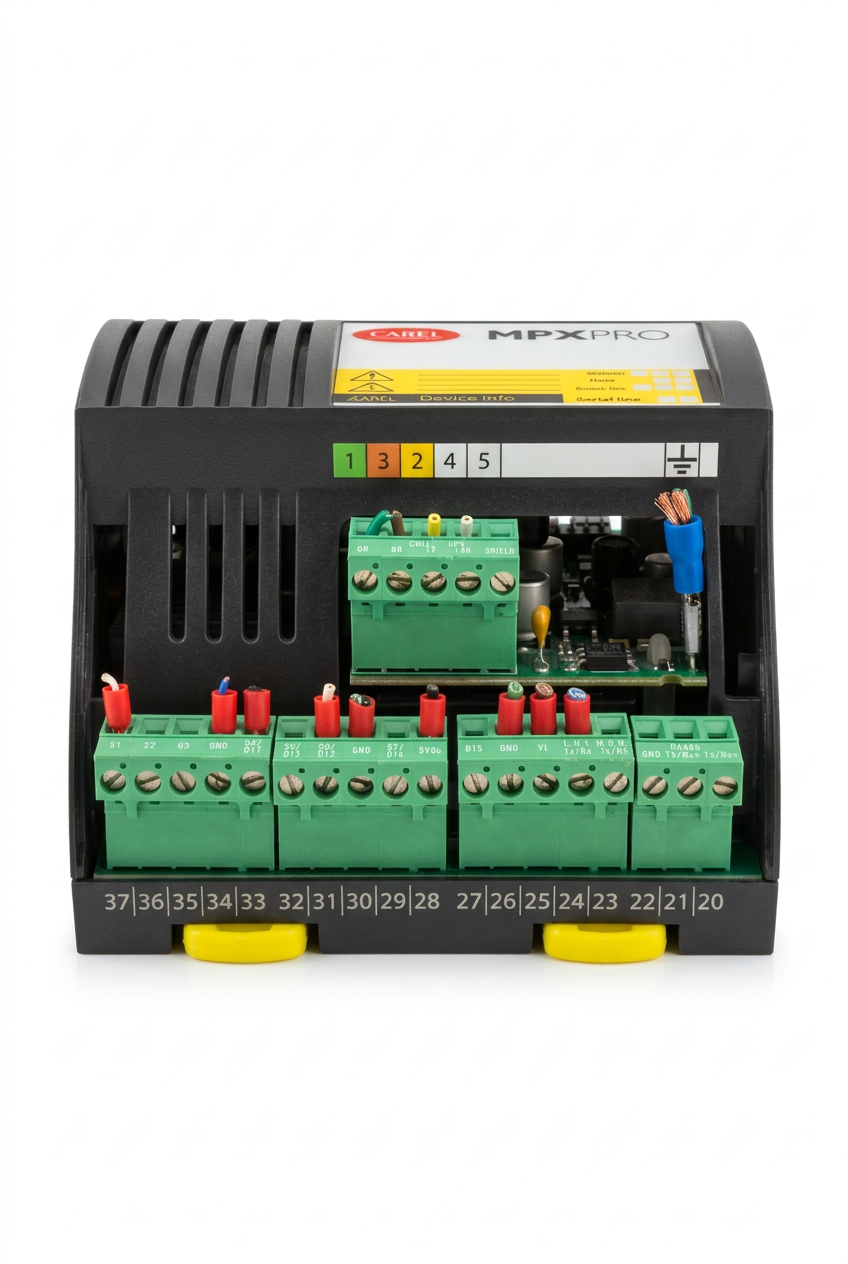

Carel MX30M25H00 MPXpro Refrigeration Controller EEV Ultracap
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MX30M25H00
Description
The Carel MX30M25H00 MPXpro electronic controller provides comprehensive management for commercial refrigeration and showcase application systems. Operating with integrated stepper driver capabilities for electronic expansion valves (EEV), 0–10 VDC modulation outputs, and onboard Ultracap backup technology, it delivers high-performance superheat and temperature regulation. This module features vertical terminal connections, support for NTC and PT1000 temperature probes, and versatile PWM switching channels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carel |
| Category | Control Board |
| Part Number | MX30M25H00 |
| Subcategory | CPU/Control Board |
| Product Series | MPXpro Series |
| Device Type | Commercial Refrigeration Controller |
| Valve Control | Stepper EEV Driver + 0–10 VDC Output |
| Power Backup | Onboard Ultracap Module |
| Channel Layout | 8-16-8-8-2PWM |
| Sensor Inputs | NTC / PT1000 Compatible |
| Terminal Style | Vertical Switching Terminals |
| Weight | 0.41 kgs |
Information About MX30M25H00
The MX30M25H00 is an advanced refrigeration controller within the Carel MPXpro series designed for multiplexed refrigerated cabinets, cold rooms, and display cases. Built with a compact board enclosure housing vertical switching terminals, it facilitates clean electrical panel wiring and quick installation. It incorporates driver hardware to drive unipolar stepper EEVs directly, alongside an internal Ultracap module that ensures safe valve closure during total electrical power interruption. The unit utilizes solid-state processing components to maintain precise temperature stability,defrost sequencing, and efficient energy management.
Key Features:
-
Stepper EEV Integration: Built-in stepper motor driver for direct control of electronic expansion valves.
-
Ultracap Technology: Integrated onboard Ultracap module guarantees fail-safe EEV emergency closing during power outages.
-
Analog Output Modulation: Features 0–10 VDC analog outputs to drive speed controllers and modulating fans.
-
Temperature Probe Compatibility: Flexible input hardware supports both NTC and PT1000 temperature sensors.
-
Terminal Configuration: Designed with vertical switching terminals to streamline wiring and panel connection layouts.
-
Channel Capacity: Configured with 8-16-8-8-2PWM terminal layout for comprehensive sensor, relay, and PWM control.
-
Refrigeration Optimization: Advanced control algorithms manage superheat, cabinet temperature, and defrost cycles.
-
Industrial Durability: Solid-state architecture ensures long-term operational stability in demanding commercial cooling environments.
The MX30M25H00 delivers the reliability and precision required for advanced commercial refrigeration management and electronic valve control.
