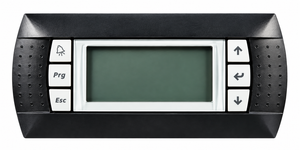

CAREL PGD1AJ0WW0 pGD1 Wall-Mounted Graphic Display Terminal
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PGD1AJ0WW0
Description

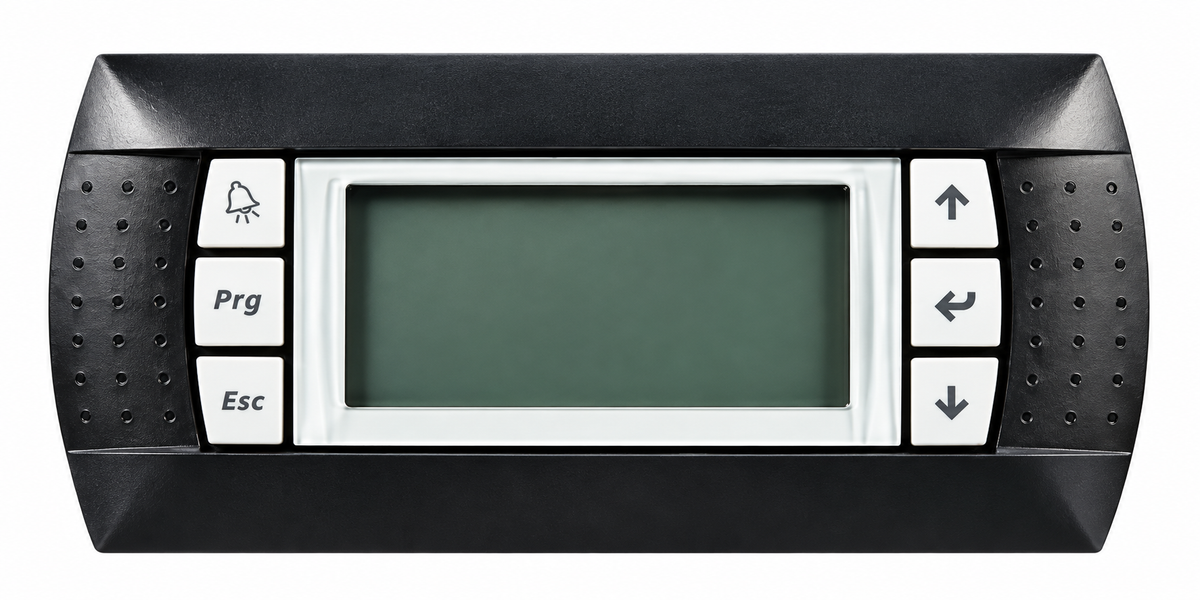

CAREL PGD1AJ0WW0 is a wall-mounted pGD1 graphic terminal for monitoring and operating compatible CAREL pCO and c.pCO controllers. Its monochrome 132 × 64 pixel LCD, white LED backlight, and controller-style keypad provide a local interface for HVAC/R systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | CAREL |
| Category | HVAC/R Controls |
| Part Number | PGD1AJ0WW0 |
| Subcategory | Graphic Display Terminals |
| Product family | pGD1 |
| Device type | Wall-mounted graphic display terminal |
| Display technology | Monochrome LCD |
| Display resolution | 132 × 64 pixels |
| Backlight | White LED |
| Communication interface | RS485 |
| Compatible systems | CAREL pCO and c.pCO controllers |
| User interface | Controller-style keypad |
| Font sizes | 5 × 7 and 11 × 15 pixels |
| Replacement model | PGD1000WW0 |
| Weight | 0.45 lb |
Information About PGD1AJ0WW0
The PGD1AJ0WW0 belongs to CAREL’s pGD1 graphic display family and connects to compatible controllers through an RS485 link. Its display supports application graphics, icons, and text in two font sizes. The keypad uses symbols familiar from CAREL pCO controller interfaces. This model is discontinued and has been superseded by the PGD1000WW0; verify controller compatibility when replacing an existing terminal.
Key Features:
-
Wall-Mounted Graphic Display: Designed as an operator interface for compatible CAREL pCO-based HVAC and refrigeration controllers.
-
Monochrome LCD: Features a graphic LCD screen with a resolution of 132 × 64 pixels.
-
LED Backlighting: Provides backlighting for improved readability in equipment rooms and control areas.
-
Button-Based Navigation: Includes a keypad for navigating menus and viewing controller parameters.
-
RS485 Communication: Connects to compatible CAREL pCO and c.pCO controllers through an RS485 interface.
-
Application-Defined Graphics: Displays icons, operating parameters, alarms, and menus configured by the connected controller's application.
-
Multilingual Font Support: Supports international character sets with 5 × 7 and 11 × 15 pixel font sizes.
-

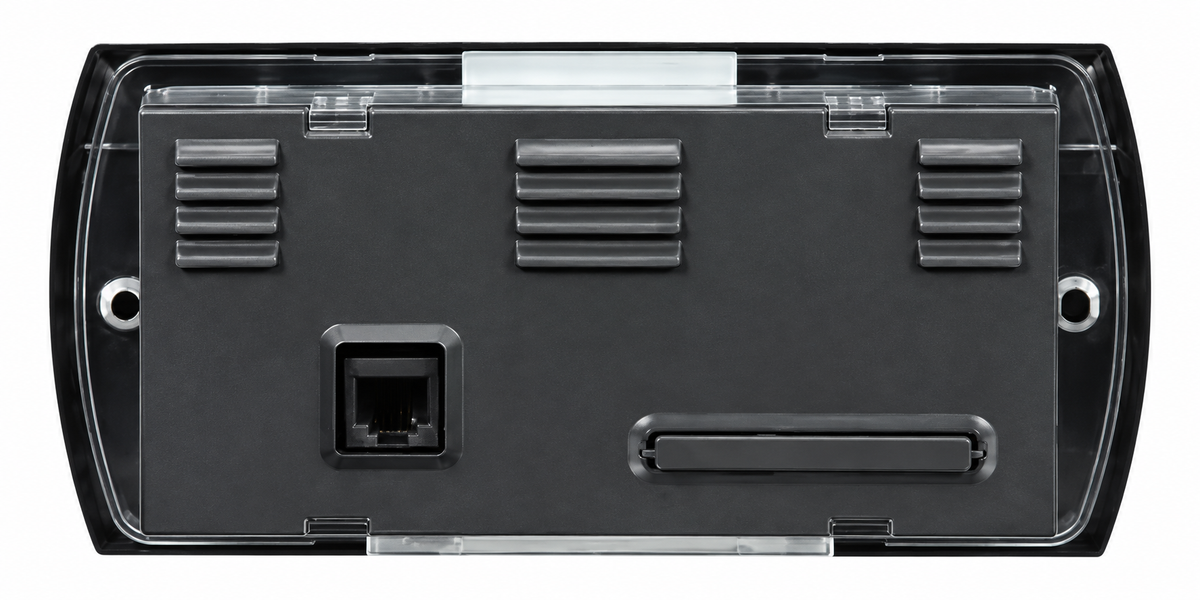

Wall-Mount Installation: Features a housing designed for wall-mounted installation.
-
Compact Construction: Measures approximately 6.125 × 3.25 × 1.125 inches.
-
Replacement Compatibility: This model is discontinued; CAREL PGD1000WW0 is listed as a replacement option, but confirm compatibility with the existing controller and mounting arrangement before substitution.
The PGD1AJ0WW0 delivers clear graphical monitoring and operator navigation for compatible CAREL HVAC and refrigeration control systems.
